QLOGIC Part #/MPN: QLE8262L
DiscTech Item #: QLG-QLE8262L-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:11Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Interface Types: SFP
Form Factor: Half-Height/Half-Length
Electrical Interface: PCIe - v2.0 - 8GBps
Voltage: 12V

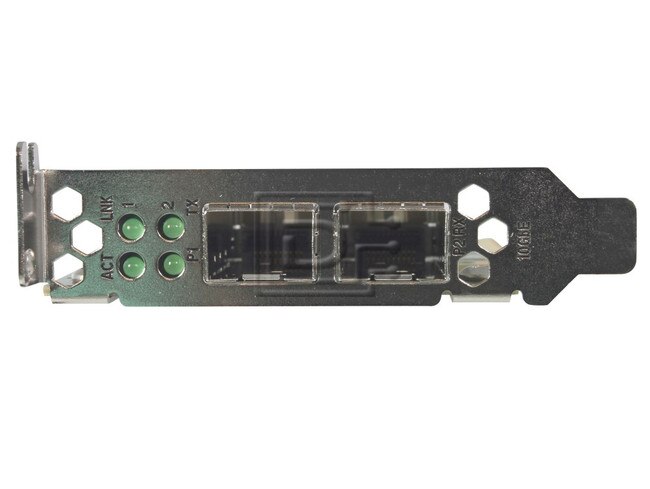

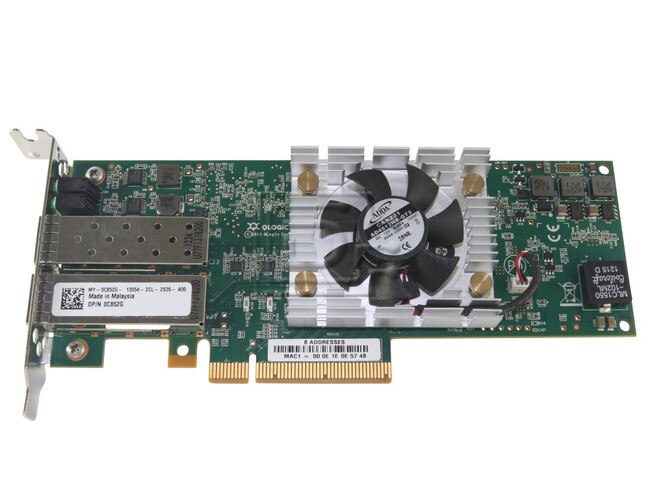

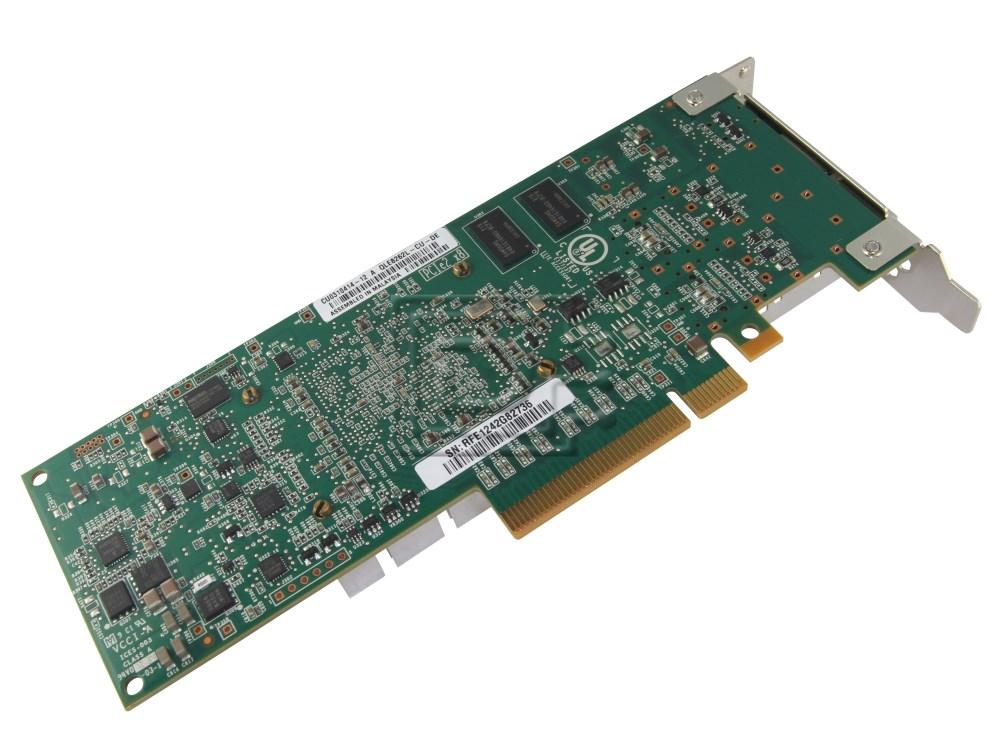

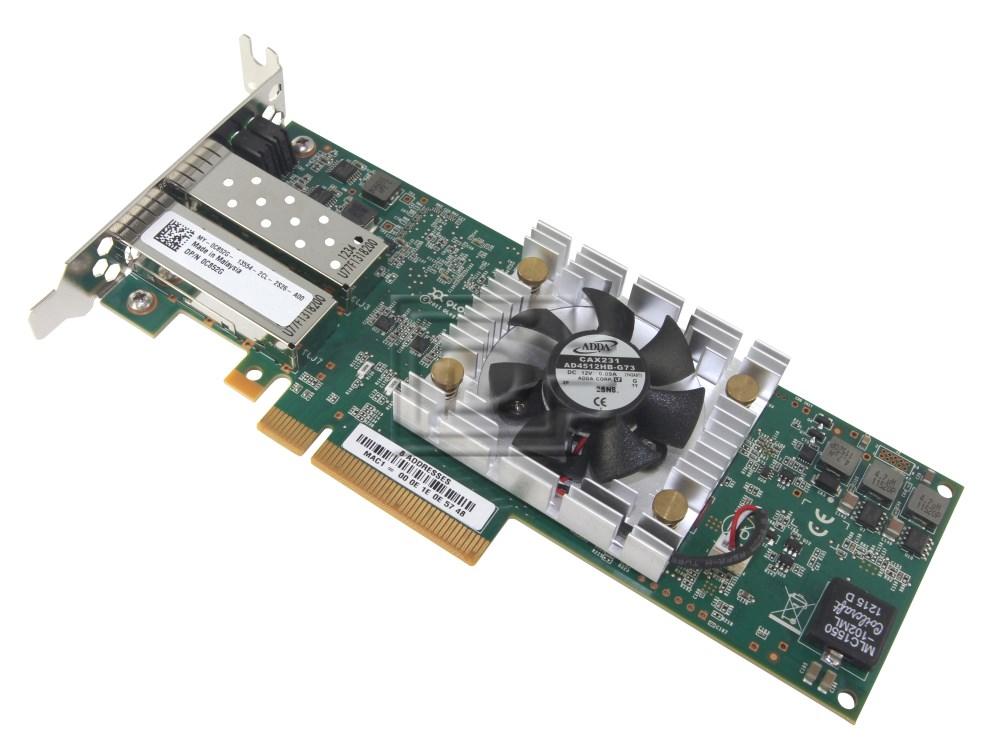

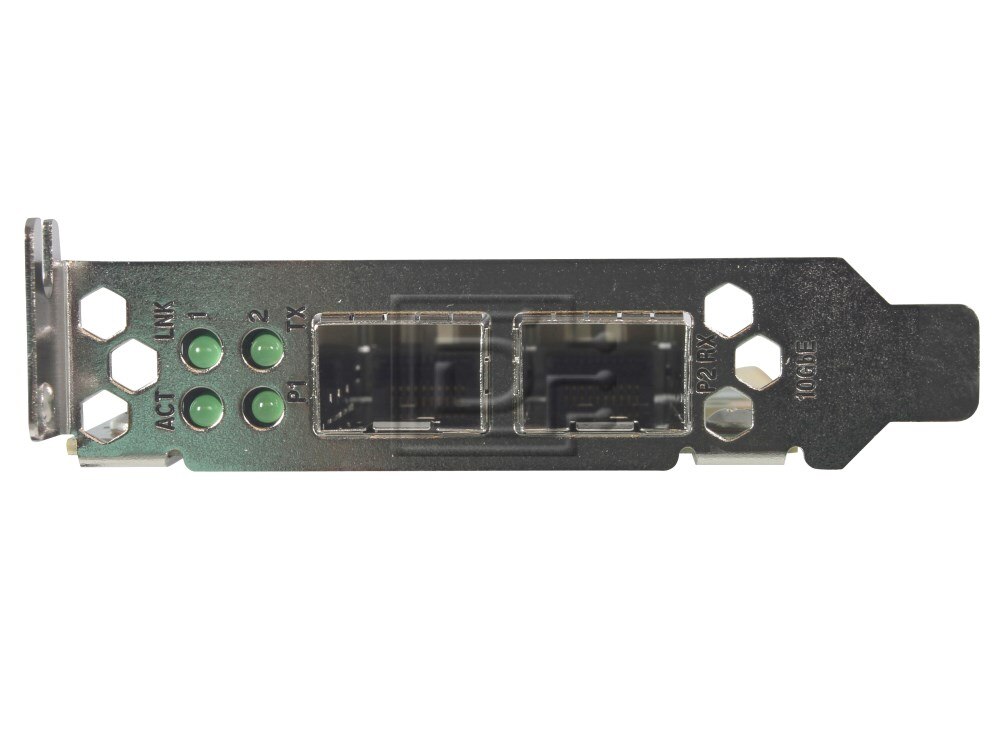

QLogic QLE8262L Dual Port 10G FCoE Fiber / Fibre Channel Over Ethernet SFP+ Low Profile HBA Host Bus Adapter - Brand New
- High Performance
- 10Gbps per-port maximum throughput for high bandwidth storage (SaN) and networking (LaN) traffic.
- Full hardware offload for FCoe and iSCSI protocol processing. this offloading preserves CPU cycles, making the Converged Network adapter ideal for virtualized environments.
- Full support for tCP/IP and ethernet performance enhancements such as Priority-Based Flow Control (802.1Qbb), jumbo frames, checksum offloads, and segmentation offloads. Lower Total Cost of Ownership (TCO)
- Simultaneous multi-protocol enables reduction of reduced hardware, cabling, power, cooling, and management costs through convergence of data and storage networking.
- Create virtual adapters with guaranteed bandwidth allocations using unique Switch Independent Partitioning feature.
- Manage networking, FCoe, and iSCSI with a single, unified management application (GUI and CLI).
- Ensures 10 Gbps per-port maximum throughput for high bandwidth storage (SAN) and networking (LAN) traffic
- Supports full hardware offload for FCoE and iSCSI protocol processing
- Featured full support for TCP/IP and Ethernet performance enhancements
- Manage networking, FCoE, and iSCSI with a single, unified management application (GUI and CLI)
- Create virtual adapters with guaranteed bandwidth allocations using unique Switch Independent Partitioning feature
The DellTM QLE8262 Converged Network Adapter supports simultaneous LAN (TCP/IP) and SAN (Fibre Channel over Ethernet (FCoE), iSCSI) traffic at line-rate, 10Gbps Ethernet speed. Convergence of traffic lowers data center costs by eliminating the need for separate LAN and SAN infrastructure. Data centers now need fewer adapters, cables, and switches, which also means reduced power and cooling costs. In addition, these adapters are fully compatible with existing Fibre Channel and iSCSI storage, providing investment protection for existing infrastructure. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
Manufacturer Part# : 91J21
High Profile: JHD51 0JHD51
Low Profile: PW4FJ 0PW4FJ
Dell Part# : 430-4406
| Quick Specs | |
| Product Description | QLogic QLE8262 - host bus adapter |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Ports | 10Gb Ethernet x 2 |
| Data Link Protocol | 10 Gigabit LAN, FCoE |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, iSCSI |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz |
| System Requirements | Novell NetWare, Red Hat Linux, SuSE Linux Enterprise Server, Microsoft Windows Server, VMware ESX Server, VMware ESXi, Citrix XenServer 5.6, Citrix XenServer 6.0 |
| General | |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Networking | |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit LAN, FCoE |
| Fibre Channel | FC-GS-2, FC-GS-3, FC-Tape, FCP-2, FC-BB-5, SCSI-FCP |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, iSCSI |
| Features | Full duplex capability, PXE support, Receive Side Scaling (RSS) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet - SFP+ |
| Compatible Slots | 1 x PCI Express 2.0 x8 - low-profile |
| Software / System Requirements | |
| OS Required | Novell NetWare, Red Hat Linux, SuSE Linux Enterprise Server, Microsoft Windows Server, VMware ESX Server, VMware ESXi, Citrix XenServer 5.6, Citrix XenServer 6.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 91J21 091J21 JHD51 0JHD51 PW4FJ 0PW4FJ 430-4406 C852G 0C852G
Weight: 2 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
