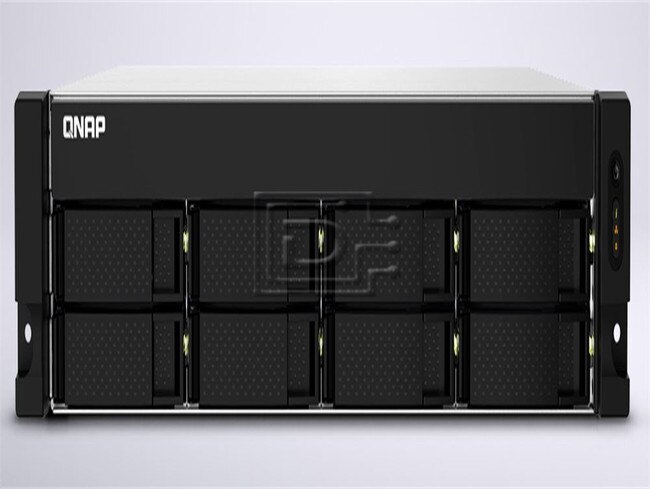

QNAP TS-832PXU-RP-4G-US 8-Bay 2U Rackmount NAS Server - Diskless


DiscTech Item #: QNA-TS-832PXU-RP-4G-US-BN-2Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: NVMe M.2, SATA, eSATA External, USB 3.0 3.1 3.2, Ethernet RJ45, PCIe

Electrical Interface: Ethernet 10Gigabit - 10Gbps

Bays/Ports/Slots: 8

QNAP TS-832PXU-RP-4G-US 8x 3.5" bay, Dual 10GbE SFP+,  Redundant SAN/NAS 2U Rackmount Storage System - Diskless - Brand New

QNAP TS-832PXU-RP-4G-US 8x 3.5" bay, Dual 10GbE SFP+,  Redundant SAN/NAS 2U Rackmount Storage System - Diskless - Brand New

QNAP TS-832PXU-RP-4G 8-bay Network Attached Storage Server includes ...

  • 4 x USB 3.1 Gen 1 Type-A
  • 2 x Ethernet RJ45 2.5GbE / 1GbE LAN ports
  • 2 x 10GbE SFP+ ports
  • 1 x PCIe 2.0 (x2)
  • 4GB DDR4 (1 x 4 GB)
  • 8 drive bays
  • Annapurna Labs Alpine AL-324 ARMv8 Cortex-A57 quad-core 1.7 GHz Processor
  • Accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives
  • Encryption capable

10GbE-ready, entry-level rackmount NAS for SMB featuring two SFP+ ports, one PCIe 2.0 ×2 slot and redundant power supply

The TS-832PXU-RP is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP's QM2 expansion cards. The TS-832PXU-RP can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more. The TS-832PXU-RP is also equipped with a redundant power supply to ensure uninterrupted services.

  • The built-in 10GbE SFP+ ports deliver high speed for mission-critical applications such as database hosting and VM storage.
  • One PCIe 2.0 ×2 slot (×4 length) is available for adding a 10GbE port and/or M.2 SSD slots. With SSDs installed, Qtier auto tiering can be enabled to optimize storage utilization.
  • Snapshots add an extra layer of protection to your disaster recovery plan, giving you the flexibility to create and revert snapshots locally and/or remotely.
  • The Hybrid Backup Sync app completes your backup strategies, allowing you to back up, restore and sync files locally and remotely.
  • QNAP's Virtual JBOD technology can be used to expand remote NAS capacity, ensuring all available space can be fully utilized.
  • The hot-swappable redundant power supply ensures high reliability and maximum system uptime.

Model NumberTS-832PXU-RP-4G -US
Hardware Specification
CPUAnnapurna Labs Alpine AL-324 ARMv8 Cortex-A57 Quad-Core 1.7 GHz Processor
Architecture: 64-bit
Encryption Engine: Yes
System Memory4GB DDR4 (1 x 4 GB)
Maximum Memory16 GB (1 x 16 GB)
Memory Slot1 x DDR4 Long-DIMM slot
Drive Bay8 x 3.5"-Inch SATA 6Gb/s bays
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
SSD Cache Acceleration Support
  • 3.5-inch bays 1 to 8
  • Optional: SSDs on an optional QM2 PCIe expansion card
    10 Gigabit Ethernet Port2 x 10GbE SFP+
    2.5 Gigabit Ethernet Port (2.5G/1G/100M)2 x RJ45
    USB Port4 x USB 3.2 Gen1 Type-A
    PCIe SlotSlot 1: 2.0 x2
    Form FactorRackmount
    Dimensions (H x W x D)89 x 482 x 534 mm
    3.5 x 18.98 x 21.02 inch
    Weight24.12 lbs
    Power Supply Unit 250W (x2) PSU, 100v-240v
    Power Consumption (W)In Operation: 69.191 W
    Sound Level 30.6 dB(A)
    Fan2 x 70mm fans (12 V DC)
    Operating Temperature & Relative Humidity

    Click here to view the manufacturer's item description/brochure

    Weight: 40 lb

    Warranty: 2 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    2 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
