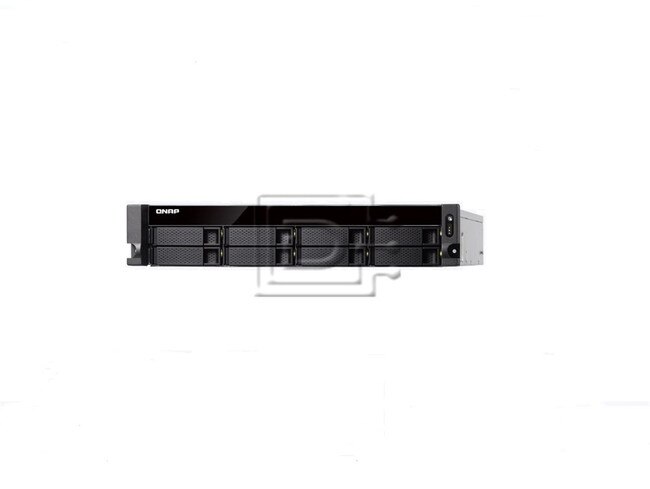

QNAP TS-877XU-RP-2600-8G 8-Bay Six-Core NAS Server

(0) No Reviews Yet

QNAP Part #/MPN: TS-877XU-RP-2600-8G

DiscTech Item #: QNA-TS-877XU-RP-2600-8G-BN-3Y


$3,515.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$3,515.00

Interface Types: SATA, USB 3.0, Ethernet RJ45, SFP

Encryption/SED Supported

Electrical Interface: Ethernet 10Gigabit - 10Gbps

On-Board Cache: 8GB

Bays/Ports/Slots: 8

U Height: 2U

Wattage/VA: 300W

Voltage: 110-240V Multi

QNAP TS-877XU-RP-2600-8G AMD Ryzen 5 2600 8-Bay 6-cores Redundant NAS Server - Diskless - Brand New

QNAP TS-877XU-RP-2600-8G AMD Ryzen 5 2600 8-Bay 6-cores Redundant NAS / Network Attached Storage Server - Diskless - Brand New

QNAP TS-877XU-RP-2600-8G 8-bay Network Attached Storage Server includes ...

  • 2 x Ethernet RJ45 1GbE LAN ports
  • 2 x Ethernet RJ45 10GbE SFP+ SmartNIC LAN Ports
  • 4 x PCIe 3.0 Slots
  • 8GB (2 x 4 GB) DDR4 UDIMM, Maximum 64 GB (4 x 16 GB) DDR4 UDIMM
  • 8 x Drive Bays
  • AMD Ryzen™ 5 2600 6 cores 3.4 GHz processor, Turbo Core 3.9 GHz
  • Accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives
  • Encryption capable

QNAP TS-877XU-RP-2600-8G Overview

Equipped with AMD’s powerful Ryzen™ processor, the TS-x77XU Series is capable of boosting virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.1 GHz. The TS-x77XU Series includes four PCIe Gen.3 slots providing expandability to facilitate a wide range of functions. With the TS-x77XU series you'll get aggressive yet power-effecient performance to meet demanding resource requirements for multitasking and business applications such as VDI, R&D, private cloud, and server virtualization.

  • Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
  • PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSDs, graphics cards, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.
  • Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
  • Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
  • Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
  • RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

TOP-CLASS HARDWARE ENGINEERING WITH HIGH I/O EXPANDABILITY
The hardware design of the TS-1277XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

  1. MULTI-CORE AMD RYZEN™ PROCESSOR
    Up to 8 cores/16 threads and up to 4.1GHz Turbo Core
  2. DDR4 2400 MHZ MEMORY
    Supports four DDR4 dual-channel Long-DIMM memory (expandable up to 64GB).Includes 4GB/8GB RAM as standard.
  3. 2 X 10GBE SFP+ PORTS
    Fully supports 10GbE high-speed networks, ideal for running bandwidth-demanding applications.
  4. USB 3.0/ 3.1 PORTS
    Supports external hard drives, printers and UPS. USB 3.1 provides speeds up to 10Gb/s to greatly boost data transfer performance.
  5. 2 X GIGABIT ETHERNET PORTS
    Ideal for service binding, port trunking and MPIO configurations.
  6. 4 X PCIE EXPANSION SLOTS
    Supports 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or wireless network cards for greater application potential.
  7. SYSTEM FANS
    Monitors system temperatures and automatically adjusts fan speeds accordingly.
  8. POWER SUPPLY UNITS
    Redundant power supplies provided to ensure continuous system up-time.*

*Redundant power not included on the TS-877XU non-RP sku.

DUAL-CHANNEL MEMORY TO DELIVER POWER-SMART PERFORMANCE
The TS-x77XU series supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-x77XU series can leverage the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 64GB RAM) of the TS-x77XU series NAS, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

INSTALL A GRAPHICS CARD FOR GPU-ACCELERATED COMPUTING
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-x77XU series offers a 350 watt power supply and PCIe slots to support low-profile graphics cards that do not need power cables, including AMD Radeon™ or NVIDIA® GeForce® graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS and performance of virtual machines via GPU passthrough. Additionally your GPU-accelerated TS-x77XU series NAS can support QNAP's AI developer package, "QuAI", to build, train, and optimize AI model-based services.

OPTIMIZED PERFORMANCE FOR VMWARE VIRTUALIZATION WITH ISER
With the built-in dual 10GbE ports that natively features Mellanox® ConnectX-4, the TS-x77XU series supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-x77XU series NAS as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.

Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible Mellanox NICs and switches compatible with Mellanox® or supporting PFC (Priority Flow Control) configuration.

BLOCK-BASED ISCSI LUN: IDEAL CHOICE FOR VIRTUALIZATION STORAGE
The TS-x77XU series supports block-based iSCSI LUNs that provide a more reliable and isolated environment than file-based LUNs. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-x77XU series provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

ALL-IN-ONE SERVER TO HOST VIRTUAL MACHINES AND CONTAINERS
Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.

  • VIRTUALIZATION STATION
    Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
  • CONTAINER STATION
    Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry®. It supports container import/export and permission settings. It’s easy deployment, portable, and efficient.

    THE NEW QVR PRO SURVEILLANCE SOLUTION
    QNAP’s new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on a TS-x77XU series NAS and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live viewing and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app.

QNAP TS-877XU-RP
Model#TS-877XU-RP-2600-8G
CPUAMD Ryzen™ 5 2600 6-core 3.4 GHz processor, Turbo Core 3.9 GHz
CPU Architecture64-bit x86
Floating Point UnitYes
Encryption EngineAES-NI
System Memory8 GB UDIMM DDR4 (2 x 4GB)
Maximum Memory64 GB (4 x 16 GB)
Memory Slot4 x DDR4 long DIMM
Flash Memory5GB (Dual boot OS protection)
Drive Bay8 x 3.5-inch
Drive Compatibility
  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives
  • Hot-swappableYes
    SSD Cache Acceleration SupportYes
    Gigabit Ethernet Port (RJ45)2
    10 Gigabit Ethernet Port2 x 10GbE SFP+ SmartNIC port
    Jumbo FrameYes
    PCIe Slot4

    Slot 1:
  • Gen3 x4
  • Slot 2:
  • Gen3 x8 or Gen3 x4*
  • Slot 3:
  • Gen3 x4
  • Slot 4:
  • Gen3 x8 or Gen3 x4**

  • *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
    **Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use.
    USB 3.0 Port4
    USB 3.1 Gen 2 (10Gbps) Port
  • 1 x Type-C USB 3.1 Gen2 5V/3A 10Gbps
  • 1 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
  • Form Factor2U Rackmount
    LED IndicatorsHDD 1-8, Status, LAN, storage expansion port status
    Buttons
  • Power
  • Reset
  • Dimensions (HxWxD)3.48 × 18.98 × 22.13 inch
    WeightNet
  • 29.34 lbs
  • Gross
  • 34.08 lbs
  • Operating Temperature0 - 40 °C (32°F - 104°F)
    Realative Humidity5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
    Power Supply Unit300W (x2), 100-240V
    Power ConsumptionOperating Mode, Typical
  • 86.04 W

  • With drives fully populated
    FanSystem: 2 x 7cm fan (12V DC)
    Sound Level37.7 db(A)
    System WarningBuzzer
    Kensington Security SlotYes


    Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.

    * Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
    Designs and specifications are subject to change without notice.


    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 31 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
