Generic Part #/MPN: QIM-HYS72T128020HFN-3-7-A-UP-OE
DiscTech Item #: QIM-HYS72T128020HFN-3-7-A-UP-OE
Form Factor: DDR2 FBDIMM
Electrical Interface: PC2-4200
On-Board Cache: 1GB

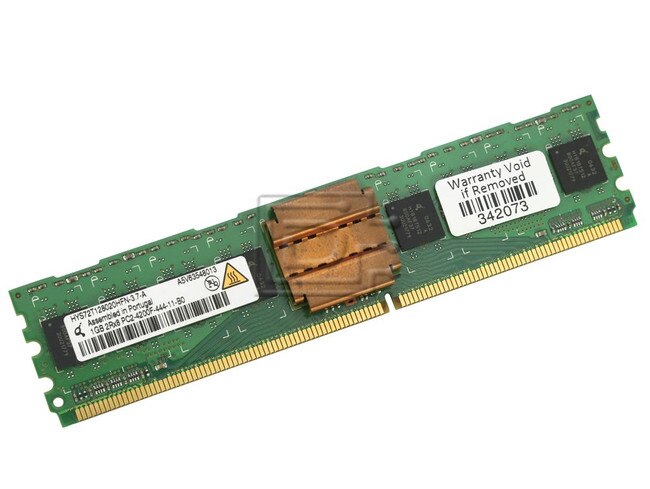

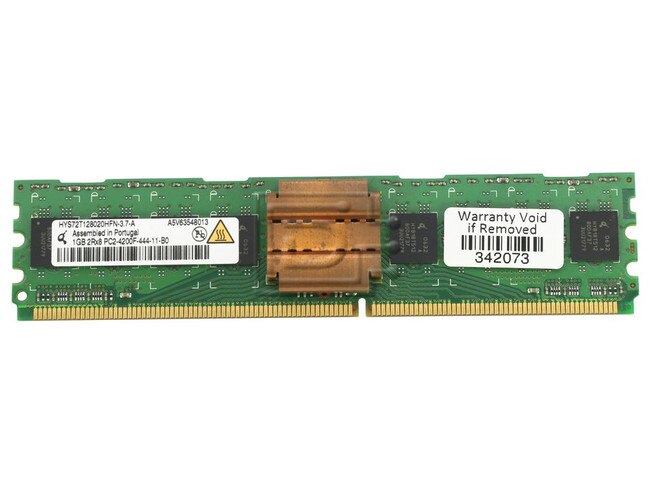

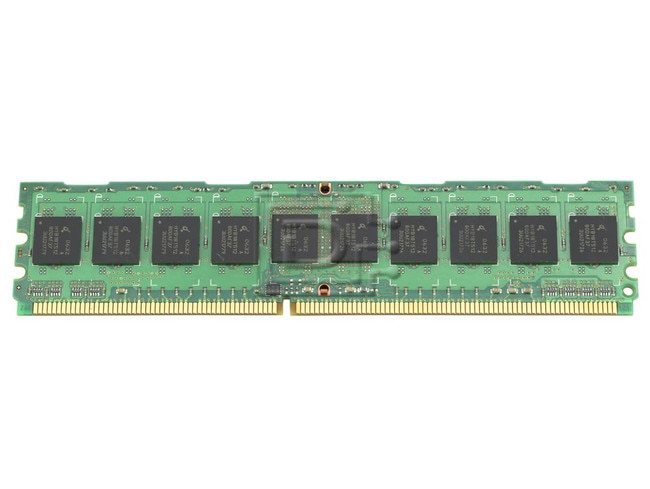

Infineon / Qimonda HYS72T128020HFN-3.7-A 1GB DDR2 ECC DDR2 533MHz PC2-4200F 2Rx8 240-Pin FB-DIMM RAM Memory - Used Pull
Infineon Qimonda DDR2 ECC 1GB Registered ECC Server Memory.
Qimonda Fully Buffered DIMM
With the ever increasing operation frequency the number of DIMM modules on a memory channel with the current parallel stub-bus interface has hit saturation point. For server applications where lots of DRAM components are required, a new solution replacing the Registered DIMM modules for data rates of 533 Mb/s and above becomes necessary.
The FB-DIMM channel architecture introduces a new memory interconnect technology, which enables high memory capacity with high-speed DRAMs. The transition to serial point-to-point connections between the memory controller and the first module on the channel, and between subsequent modules down the channel, makes the bus-loading independent from the DRAM input/output (IO) speed. This enables high memory capacity with high-speed DRAMs.
The FB-DIMM requires high-speed chip design and DRAM expertise. Qimonda is uniquely positioned to provide the entire skill set in-house, which clearly demonstrates Qimonda’s solution competence. Qimonda supplies FB-DIMMs in two AMB sources with optimized heat sink design using power-saving DDR2 components.
Please check with your system manufacturer for compatibility lists.
Any Servers and Workstations that will use DDR2-533 ECC Buffered/Registered 240-Pin FB-DIMM Memory.
- 1GB DDR2-533MHz
- Fully Buffered
- Dual Rank
- 30mm ht.
- 128 M x 72
- PC2-4200 4-4-4
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HYS72T128020HFN-3.7-A
Weight: 0.2 lb
Warranty: 1 Year DiscTech
The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
