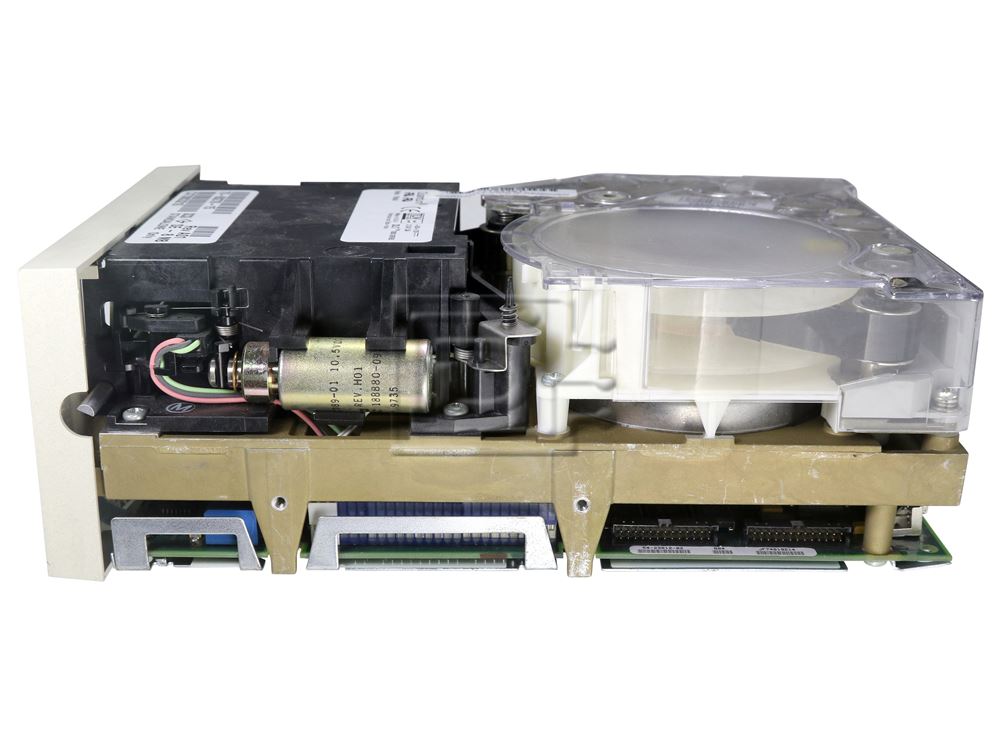

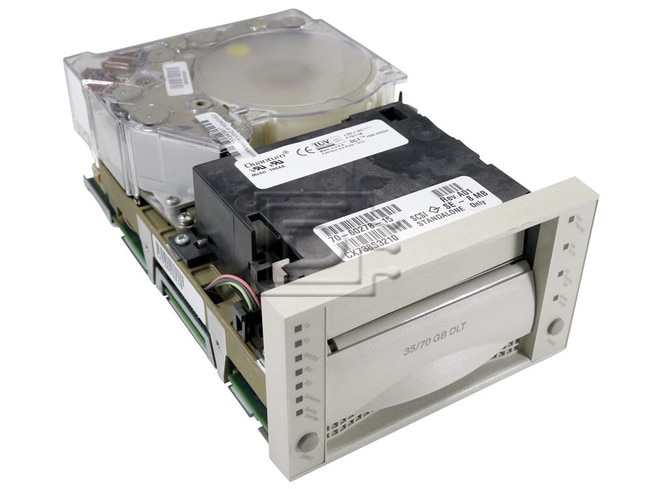

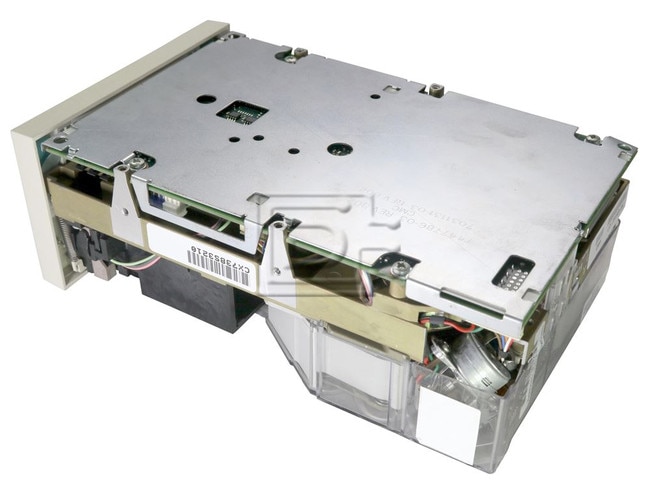

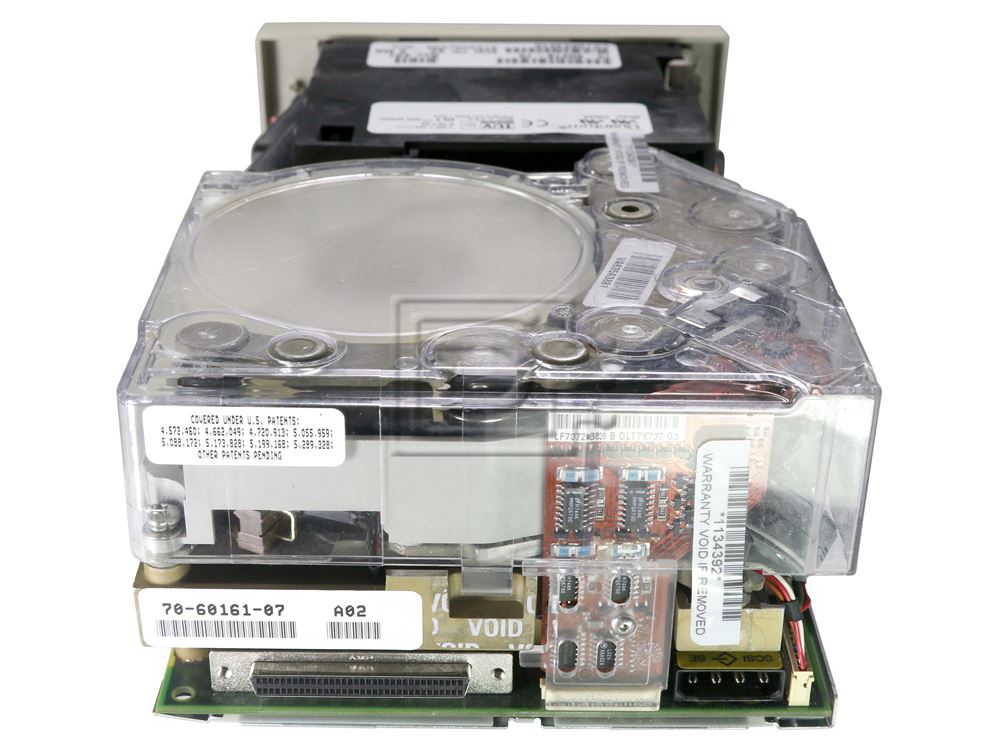

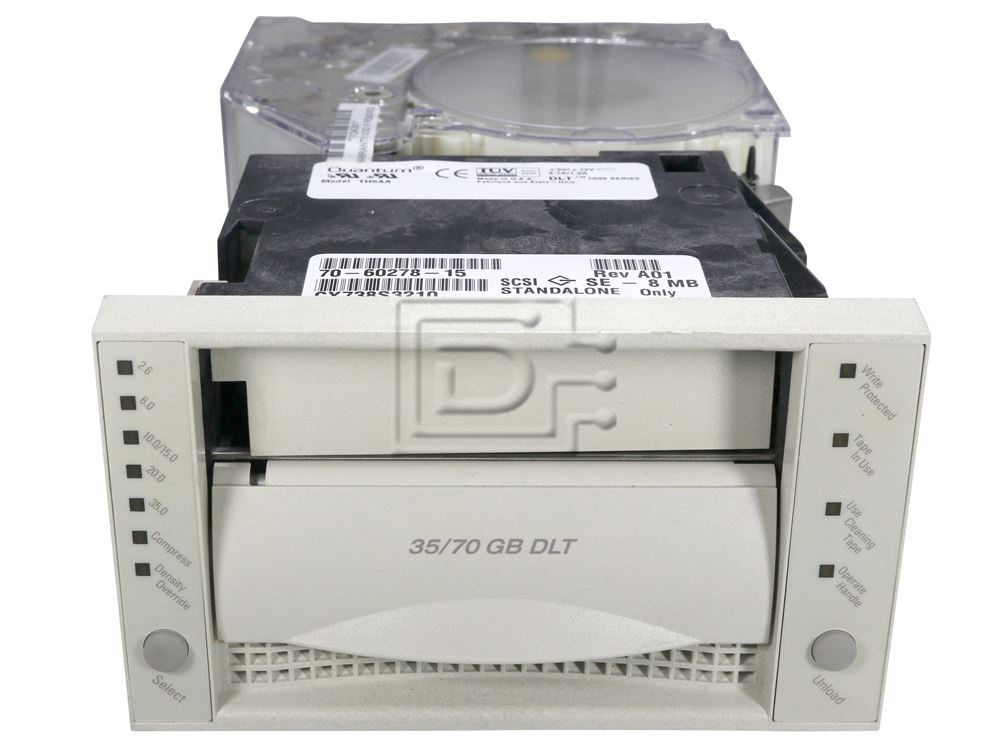

Quantum DLT7000 TH6AA-YF 35-70GB SCSI Tape Drive

QUANTUM Part #/MPN: TH6AA-YF

DiscTech Item #: QUA-TH6AA-YF-RF-OE


$200.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$200.00

Interface Types: SCSI 68pin HD68

Form Factor: 5.25inx3.2in Full Height Drive

Sector Size: 512 / 512e

Electrical Interface: SCSI II Fast - 10MBps 16-bit

On-Board Cache: 4MB

Wattage/VA: 60W

Voltage: 110-240V Multi

Quantum DLT7000 TH6AA-YF 35/70GB SCSI HD68 68 pin Tape Drive - Refurbished

Quantum DLT7000 TH6AA-YF 35/70GB SCSI  HD68 68 pin Tape Drive - Refurbished

PRODUCT DESCRIPTION

The Quantum DLTÔ 7000 tape system is a high-performance, high-capacity, streaming cartridge tape system designed for efficient data back-up for midrange and high-end computing systems. With Quantum’s DLT advanced linear recording technology, a highly accurate tape guide system, and an adaptive control mechanism, the drive is ideally suited for mid-range systems, network servers, and high-end workstations and systems.

Using data compression, the DLT 7000 tape system features a formatted capacity of 70.0 GB* and a sustained user data transfer rate of 10 MB/second* (native capacity is 35.0 GB; native data transfer rate is 5.0 MB/second).

The device is an extended-length, 5.25-inch form factor, half-inch cartridge tape drive. The design includes a four-channel read/write head, Lempel-Ziv (LZ) high-efficiency data compression, and tape mark directory to maximize data throughput and minimize data access time.

The system is available either as an integratible or “embedded” drive or as a tabletop version. The tabletop version is packaged in housing that includes its own cooling fan and power supply, requiring ac power.

The DLT 7000 tape offers the following product features:

  • 35.0 GB Native, 70.0 GB Compressed Capacity (Formatted capacity assuming a 2:1 data compression ratio. Note that actual compression ratio depends on the type of data, SCSI bus limitations, and system configuration.) 35.0 · Superior Error Detection and Correction
  • Extensive Embedded Diagnostic/Self-Test Software
  • Fast access to Data via Tape Mark Directory
  • Tape-Loadable Firmware

DLT™7000 Tape System
Model NumbersTH6AA-YF
PHYSICAL SPECIFICATIONS
Height
  • 8.26cm (3.25in) without front bezel
  • 8.64cm (3.40in) with front bezel
  • Width/td>
  • 14.48cm (5.70in) behind front bezel
  • 14.91cm (5.87in) with front bezel
  • Depth
  • 22.86cm (9.00in) measured from back of front bezel
  • 24.38cm (9.60in) including front bezel
  • Weight2.9kg (6lb, 7oz)
    Shipping Weight3.9kg, (8lb, 8oz)
    STORAGE CAPACITY
    DLTtape IV (extended 1780 foot tape)
  • 35.0 GB Native Storage User Data
  • 70.0 GB Compressed Storage User Data
  • DLTtape IIIx (extended 1780 foot tape)15.0 GB Native Storage User Data
  • 30.0 GB Compressed Storage User Data
  • DLTtape III standard 1167 foot tape)
  • 600 MB Native User Data
  • 2.6 GB Native Storage User Data
  • 10.0 GB Native Storage User Data
  • 20.0 GB Compressed Storage User Data
  • PERFORMANCE DATA
    Transer Rate5.2 MB/second
    User Narive Transer Rate6.8 MB/second
    Raw Native Transfer RateUp to 10 MB/second
    Compressed Error Rates
  • Recover READ Error Rate = 1 in 1x10^7
  • Detected, Uncorrected Error Rate = 1 in 1x10^17 bits read
  • Undetected Error Rate = 1 in 1x10^27bits read
  • Recoverable WRITE Error Rate = 1 in 1x10^6
  • Tracks208; 52 quads
    Linear Bit Density85,937 bpi per track
    READ/WRITE Tape Speed160 inches/second
    Rewind Tape Speed175 inches/second
    Linear Search Tape Speed175 inches/second
    Average Rewind Time60 seconds
    Maximum Rewind Time120 seconds
    Average Access Time (from BOT)60 seconds
    Maximum Access Time (from BOT)120 seconds if the tape directory on the tape is valid. If the tape must be read from BOT to EOT, maximum access time is 132 seconds
    Load to BOT (typical)37 seconds - previously written (slightly longer if using a blank tape
    Load to BOT (max time using V80 firmware or greater)5.5 minutes with blank tape tha falls calibration (time includes calibration retires)
    Unload from BOT17 seconds
    Nominal Tape Tension
  • 3.0 +/- 1 oz. when stationery
  • +/- 1 oz. at operating speed

    Click here to view the manufacturer's item description/brochure

    Weight: 7.5 lb

    Warranty: 1 Year DiscTech
