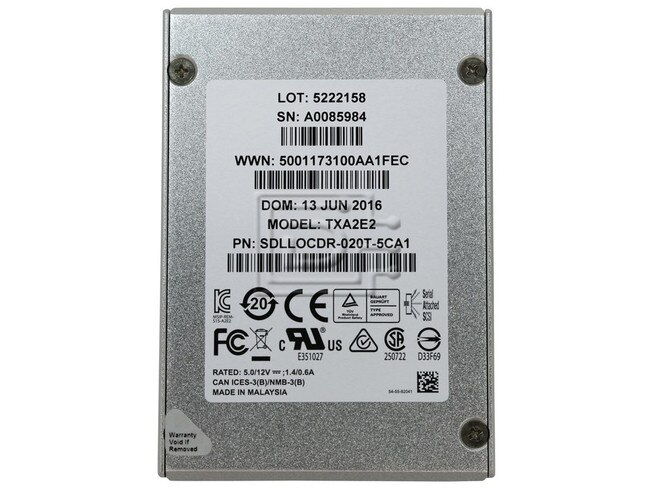

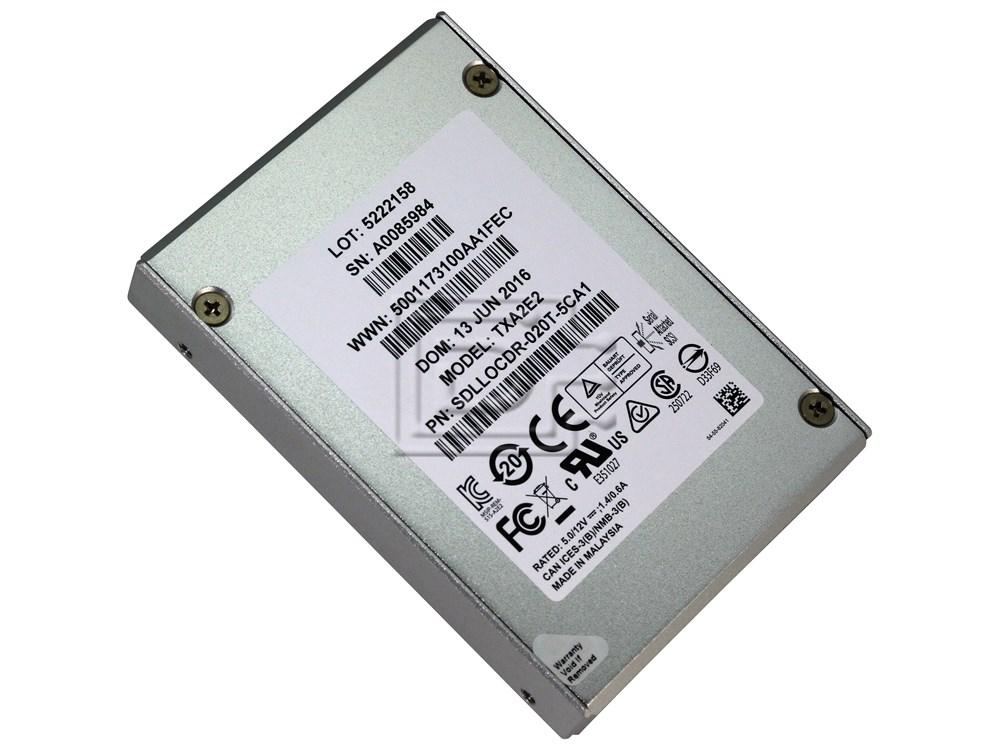

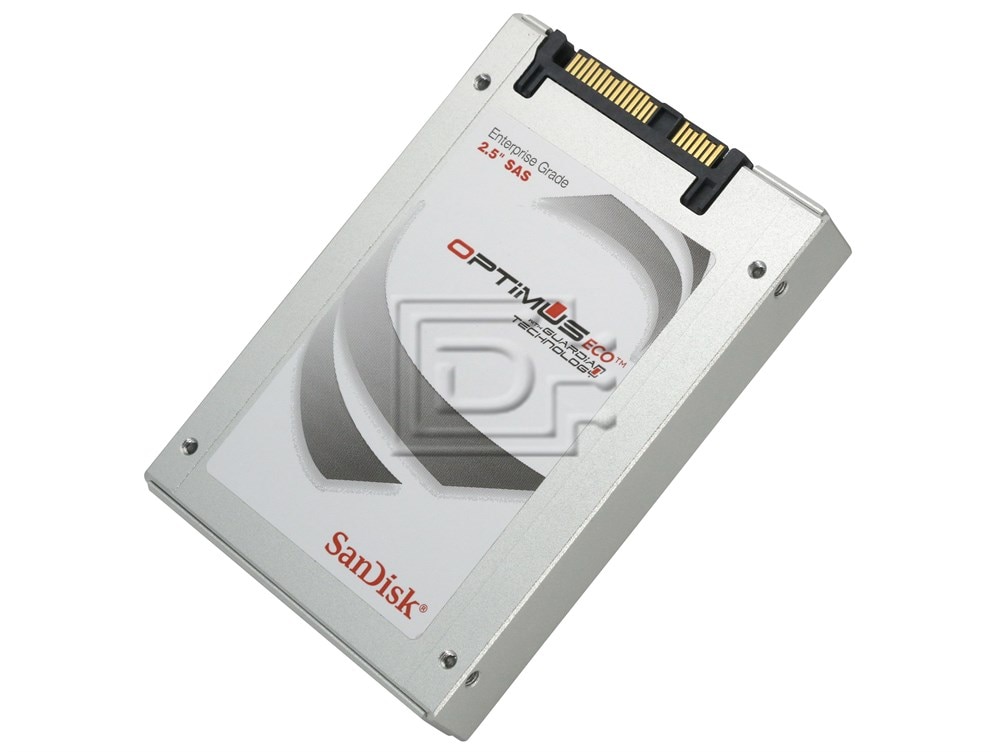

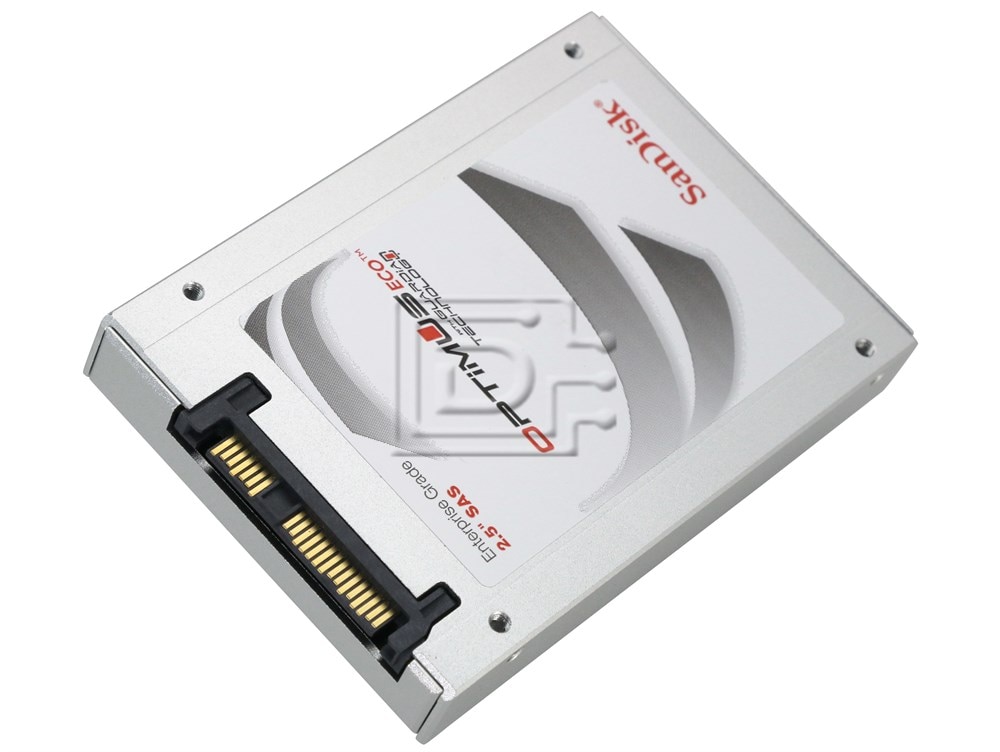

SANDISK SDLLOCDR-020T-5CA1 2000GB SAS Solid State Drive
| Capacity: | 2TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-2 6Gbps |
Description
SanDisk SDLLOCDR-020T-5CA1 2TB 2.5in 6Gbps Optimus Eco eMLC Read Intensive SAS Solid State Disk Drive
SanDisk SDLLOCDR-020T-5CA1 2TB / 2000GB 2.5" 6.0 Gb/s Optimus Eco Enterprise Multi Level Cell Read Intensive Serial Attached SCSI SSD / Solid State Disk Drive - Brand New
Optimus Eco™ SAS SSDs
Cost-effective storage for mixed-use and read-intensive workloads with excellent performance.
The Optimus Eco™ SSD from SanDisk® ushers in a new era of flash storage bringing together a combination of high performance, capacity, endurance and reliability, while using cost-effective 19nm eMLC flash. This combination makes the Optimus Eco SSD the ideal solution for a wide variety of mixed-use application workloads such as On-line Transaction Processing (OLTP), Financial Transactions, and E-mail. Messaging, and read-intensive application workloads such as Web Servers, Video on Demand (VOD) and Web-based Applications. The Optimus Eco can be deployed by Cloud service providers or hyper-scale data centers, in existing directly attached, SAN, and NAS storage architectures.
Available in capacities of 400GB - 2TB, the Optimus Eco SSD provides random read/write performance up to 90K/35K IOPS and sequential read/write data transfer rates of up to 530/530 MB/s. The Optimus Eco SSD is dual ported with 1GB/s Read/800 MB/s Write in active/active operation for sequential read/write performance. The Optimus Eco SSD provides 3 random DWPD.
Guardian Technology™ Platform
Optimus Eco SAS SSDs are powered by SanDisk’s proprietary Guardian Technology Platform, a comprehensive suite of enterprise features comprised of FlashGuard™, DataGuard™ and EverGuard™ technologies.
FlashGuard Technology combines Aggregated Flash Management, which treats all flash elements as a single system, and Advanced Signal Processing, which dynamically adjusts flash parameters throughout the life of the SSD, to reliably extract significantly more life from commercial-grade MLC flash, making it suitable for mixed-use and read-intensive application workloads.
DataGuard Technology features full data path protection, safeguarding user data from corruption along all data paths in the SSD.
EverGuard Technology protects against loss of user data in the event of unexpected power interruptions using a 3rd generation backup power circuit design and highreliability discrete capacitors. Optimus Eco SAS SSDs are designed for I/O intensive, mission-critical, 24/7 applications.
Features
- 3 Full Random DWPD
- Data integrity – BER 10^18
- FlashGuard – Enhances Flash Endurance
- DataGuard – Ensures Data Integrity
- EverGuard – Reliable 24x7 operation
Mixed-Use (400GB - 1.6TB) Applications Workloads
- On-Line Transaction Processing (OLTP) Databases
- Financial Transactions
- E-Commerce
- E-Mail/Messaging
- Virtual Desktop
- Collaboration
Read-Intensive (2TB) Application Workloads
- Web Servers
- Media Streaming
- Virtual Tape Libraries (VTL)
- Video on Demand (VOD)
- Web-based Applications
- File Servers
Compatibility:
This drive is compatible with any server that accepts 2.5" x 15mm (SFF Hard Drive) SAS drives.
Specifications
| Optimus Eco™ SAS SSDs | |
|---|---|
| Drive Model | SDLLOCDR-020T-5CA1 |
| Capacity | 2TB/2000GB |
| Interface | SAS 6Gb/s |
| Interface Ports | Dual |
| Sequential Read/Write | Up to 530/530 MB/s1 per port/1 GB/s Read/800 MB/s Write in Active/Active operation |
| Random Read/Write (IOPS) | Up to 90K/35K IOPS |
| Reliability | |
| Sector Sizes | 512, 520, 528 byte |
| Data Reliability (UBER) | 1 unrecoverable error in 10^18 bits read |
| MTBF | 2.5 Million Hours |
| Data Fail Recovery | F.R.A.M.E. (Flexible Redundant Array of Memory Elements) |
| Power Fail Recovery | EverGuard™ Technology: Backup Power Circuitry |
| Data Path Protection | DataGuard™ Technology |
| Endurance | |
| DWPD (Random Workload) | 3 DWPD |
| Power | |
| Vcc | 5V/12V |
| Active (Typ) | 7W |
| Environmental | |
| Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
| Vibration | 2.17 g rms, 7-800 Hz |
| Operating Temperature | 0° C to 70° C (internal) |
| Storage Temperature | -40° C to 90° C |
| Humidity | 5% to 95%, non-condensing, relative humidity |
| Altitude | 5486.4 m [18,000 ft] |
| Mechanical | |
| Length | 100.20mm |
| Width | 69.85mm |
| Height | 9.5/15mm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
