Dual mSATA SSD to SATA 2.5in SFF SSD Converter Adapter
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | SATA |
| Form Factor: | 1.8" x 5mm |
| Electrical Interface: | SATA 600 - 6Gbps |
Description

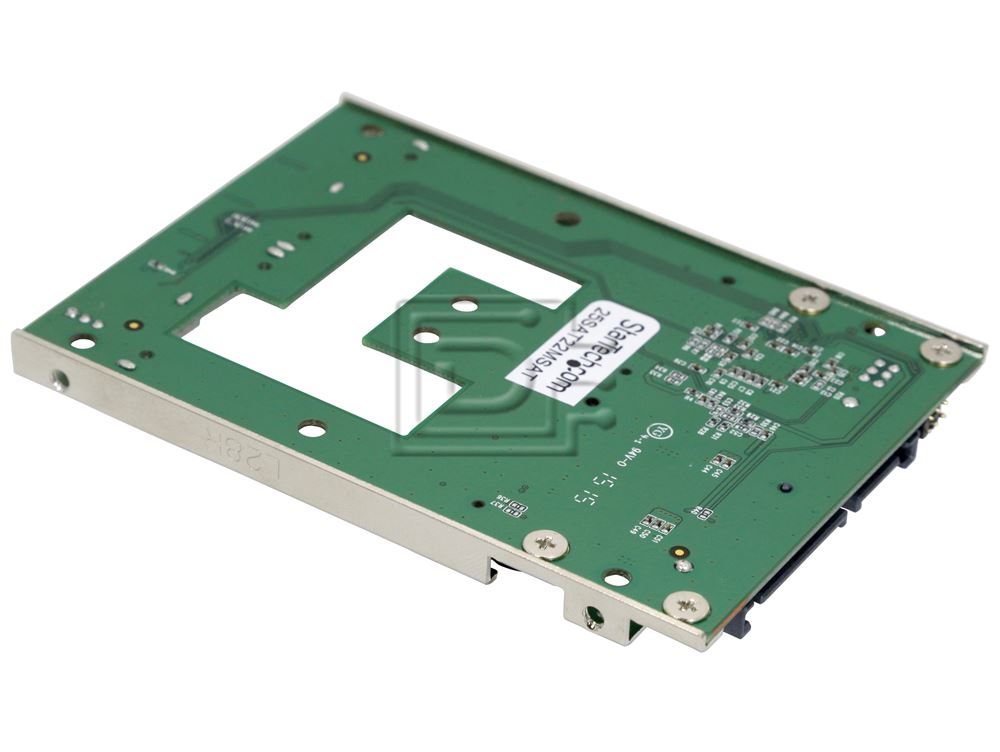

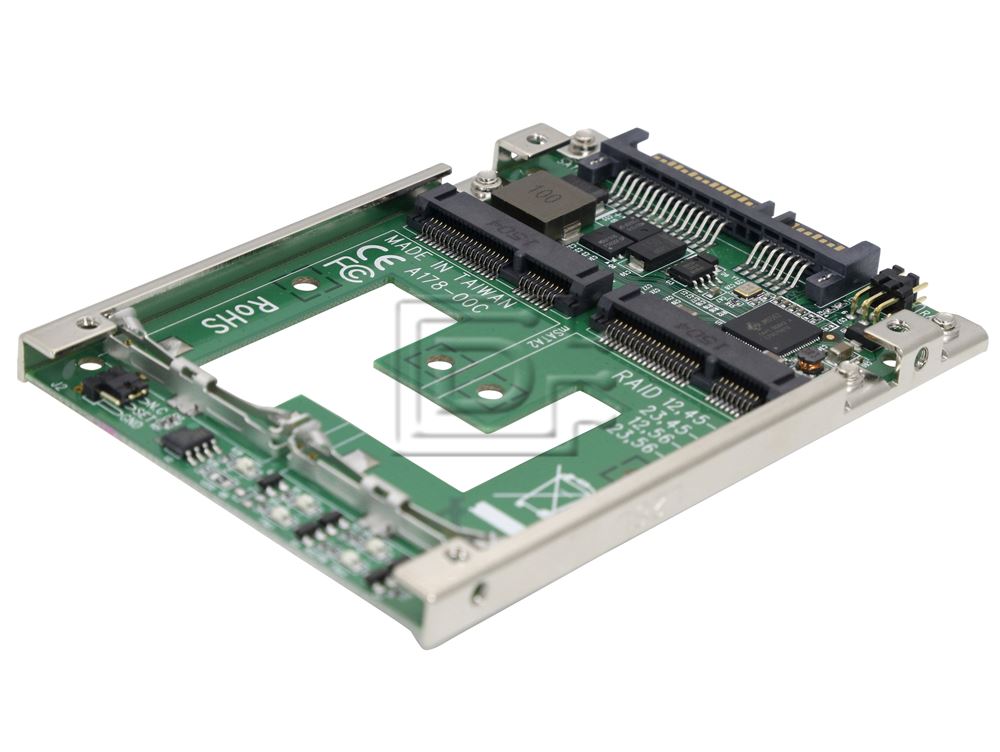

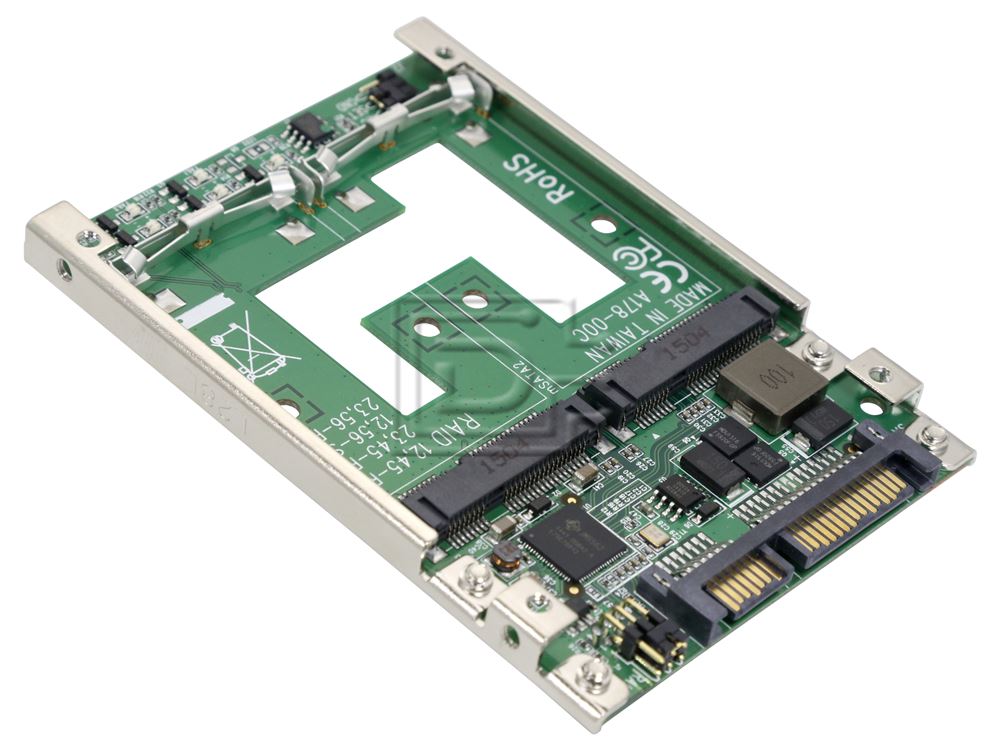

Dual mSATA SSD to SATA 2.5in SFF SSD Converter Adapter with RAID 0 or 1 - Brand New
Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the mSATA to SATA adapter.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
- Maximize system speed by adding SSD performance
- Achieve greater drive capacity, or secure data redundancy with multiple RAID modes
- Reduce overall power consumption, with high efficiency mSATA SSDs
Specifications
| Hardware | |
|---|---|
| Chipset ID | JMicron JMS562 |
| Compatible Drive Types | mSATA (Mini SATA) |
| Drive Installation | Fixed |
| Drive Size | mSATA (Full Size & Half Size) |
| Interface | SATA |
| Number of Drives | 2 |
| Performance | |
| Hot Swap Capability | No |
| Maximum Data Transfer Rate | 6 Gbps |
| MTBF | 5,101,299 Hours |
| Port Multiplier | Yes |
| RAID | Yes |
| Supported RAID Modes | BIG (Spanning or Concatenation) |
| JBOD - (Just a Bunch of Disks) | |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| Type and Rate | SATA III (6 Gbps) |
| Connector(s) | |
| Drive Connectors | 2 - mSATA (52 pin, Mini SATA) Receptacle |
| Host Connectors | 1 - SATA Data & Power Combo (7+15 pin) Receptacle |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Indicators | |
| LED Indicators | 1 - Drive #1 Activity |
| 1 - Drive #1 Failure | |
| 1 - Drive #2 Activity | |
| 1 - Drive #2 Failure | |
| Environmental | |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Physical Characteristics | |
| Enclosure Type | Steel, Aluminum and Plastic |
| Product Height | 0.3 in [7 mm] |
| Product Length | 3.8 in [97 mm] |
| Product Weight | 1.4 oz [39 g] |
| Product Width | 2.8 in [70 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 3.8 oz [108 g] |
| What's in the Box | |
| Included in Package | 1 - Dual mSATA to 2.5in SATA Adapter |
| 1 - Mounting screw kit | |
| 1 - Install Guide | |
Alternate MPNs: 25SAT22MSAT
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
