Seagate Part #/MPN: ST2000LM003
DiscTech Item #: SGT-ST2000LM003-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 2TB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 32MB

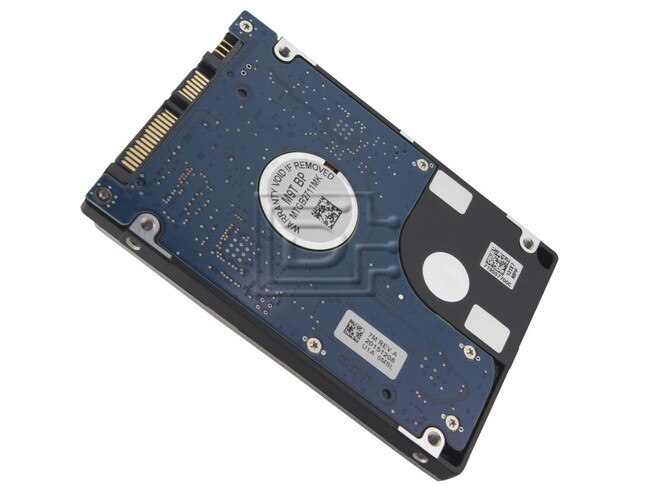

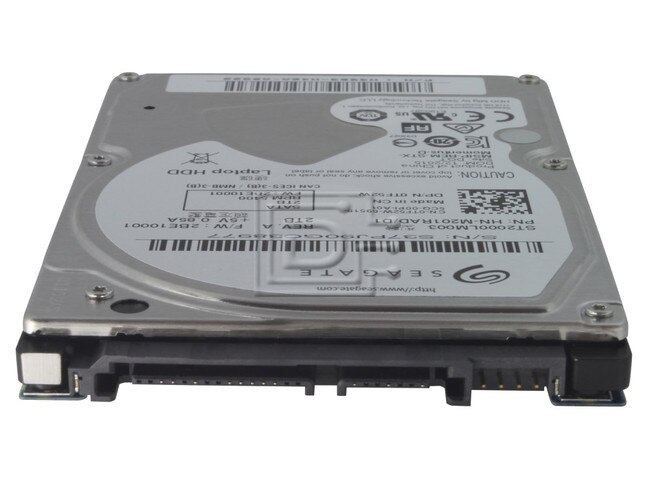

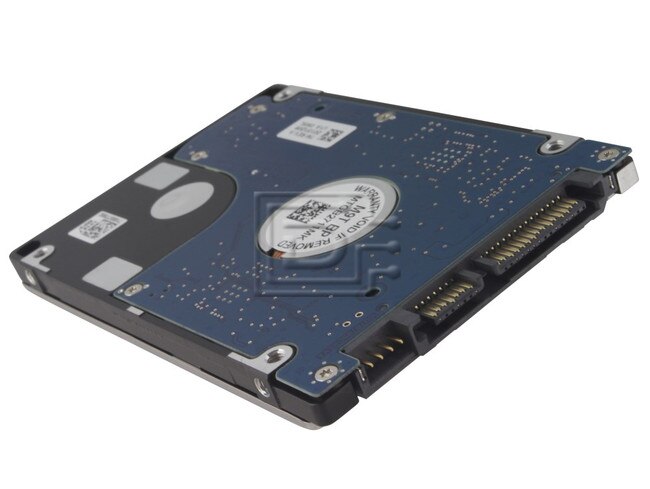

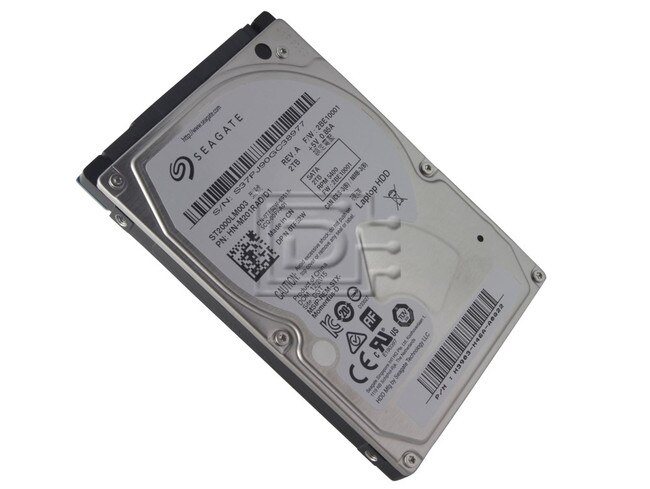

Seagate Momentus / Samsung Spinpoint ST2000LM003 2TB 2.5" 6Gbps 5400 RPM M9T 9mm SATA HDD - Brand New
Seagate Momentus / Samsung Spinpoint ST2000LM003 2TB 2.5" 6Gbps 5400 RPM M9T 9mm SATA HDD - Brand New
Alt MPN: HN-M201RAD/AVN HN-M201RAD/D HN-M201RAD/D1
DP/N: 0TF52W TF52W
The Samsung Spinpoint M9T Made by Seagate , also known as Seagate Momentus laptop mobile SATA drive delivers high capacity in a thin design to give customers the ideal solution for external and mobile applications.
FEATURES
- Max. 2TB formatted capacity per disk
- SATA Native Command Queuing Feature
- TuMR/PMR head with FOD technology
- Serial ATA 6.0 Gb/s Interface support
- Load/Unload Head Technology
- ATA Security Mode Feature Set
- ATA S.M.A.R.T. Feature Set
- SilentSeek™
- NoiseGuard™
This drive is a compatible upgrade to the Playstation 4 Storage Capacity.
Compatibility:
This drive is compatible with any server that accepts 2.5"x9mm (Fits in ALL laptops) SATA drives.
The PS4 accepts this drive as a compatible upgrade to replace its default hard drive.
| Drive Model | ST2000LM0003 |
|---|---|
| Capacity | 2TB/2000GB |
| Drive Configuration | |
| Interface | SATA 6.0 Gb/s (3.0, 1.5 Gb/s) |
| Rotational Speed | 5400 RPM class |
| Cache | 32 MB |
| Performance Specifications | |
| Average Seek Time (Typical) | 12ms |
| Average Latency | 5.6ms |
| Data Transfer Rate Media to/from Buffer (Max) | 169 MB/s |
| Data Transfer Rate Bufer to/from Host (Max) | 600 MB/s |
| Reliability Specifications | |
| Non-Recoverable Read Error | 1 Sector in 100,000,000,000,000 bits |
| Controlled Ramp Load/Unload | >600,000 |
| Acoustics | |
| Idle | 2.5 Bel |
| Performance Seek | 2.7 Bel |
| Environental Specifications | |
| Temperature Operating | 0 ~ 60 °C |
| Temperature Non-Operating | -40 ~ 70 °C |
| Humudity Operating (Non-Condensing) | 5-90% |
| Humidity Non-Operating (Non-Condensing) | 5-95% |
| Linear Shock Operating (1/2 sine pulse) | 300G |
| Linear Shock Non-Operating (1/2 sine pulse) | 900G |
| Vibration Operating (10-500 Hz, Random) | 1.5 Grms |
| Altitude Operating (Realative to Sea Level) | -304.8 m to 3,048 m |
| Altitude Non-Operating (Realiative to Sea Level) | -304.8 m to 12,192 m |
| Environental Specfications | |
| Height (mm/in) | 9.5/0.374 |
| Width (mm/in) | 69.85/2.75 |
| Lenth (mm/in) | 100.35/3.951 |
| Weight (g/lb) | 130/0.29 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HN-M201RAD/AVN HN-M201RAD/D HN-M201RAD/D1
