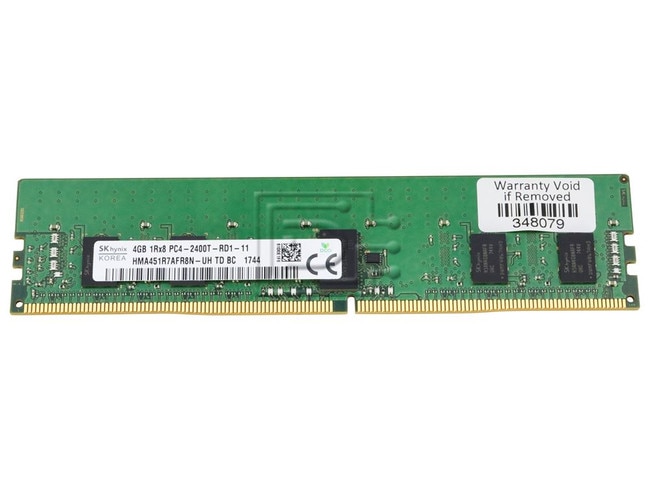

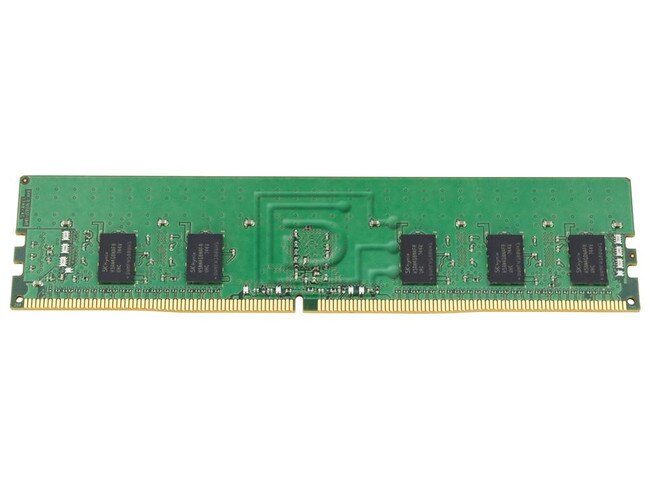

SK Hynix HMA451R7AFR8N-UH 4GB DDR4 PC4-19200 2400MHz CL17 Registered ECC 288-Pin RDIMM 1.2V Server RAM Memory

SK Hynix HMA451R7AFR8N-UH 4GB DDR4 PC4-19200 2400MHz CL17 Registered ECC 288-Pin RDIMM 1.2V Server RAM Memory - Brand New

SK Hynix HMA451R7AFR8N-UH 4GB DDR4-2400 SDRAM PC4-19200 2400MHz 512Mx72 CL17 Registered Dual Rank ECC 288-Pin RDIMM 1.2V Server RAM Memory - Brand New

Description
SK hynix Registered DDR4 SDRAM DIMMs (Registered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices. These Registered SDRAM DIMMs are intended for use as main memory when installed in systems such as servers and workstations.

Features

• Power Supply: VDD=1.2V (1.14V to 1.26V)
• VDDQ = 1.2V (1.14V to 1.26V)
• VPP - 2.5V (2.375V to 2.75V)
• VDDSPD=2.25V to 2.75V
• Functionality and operations comply with the DDR4 SDRAM datasheet
• 16 internal banks
• Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
• Data transfer rates: PC4-2666, PC4-2400, PC4-2133
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Supports ECC error correction and detection
• On-Die Termination (ODT)
• Temperature sensor with integrated SPD
• This product is in compliance with the RoHS directive.
• Per DRAM Addressability is supported
• Internal Vref DQ level generation is available
• >Write CRC is supported at all speed grades
• DBI (Data Bus Inversion) is supported(x8)
• CA parity (Command/Address Parity) mode is supported

Details:

• 4GB
• RDIMM 288-pin (registered)
• 2400 MHz
• PC4-19200
• 1.2V
• ECC
• Dual Ranked

Compatibility:

This memory module is compatible with servers supporting DDR4 Registered ECC memory.

ROHS Compliant

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

1 Year DiscTech Warranty
