Seagate Part #/MPN: ST32000645SS
DiscTech Item #: SGT-ST32000645SS-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 2TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 155
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

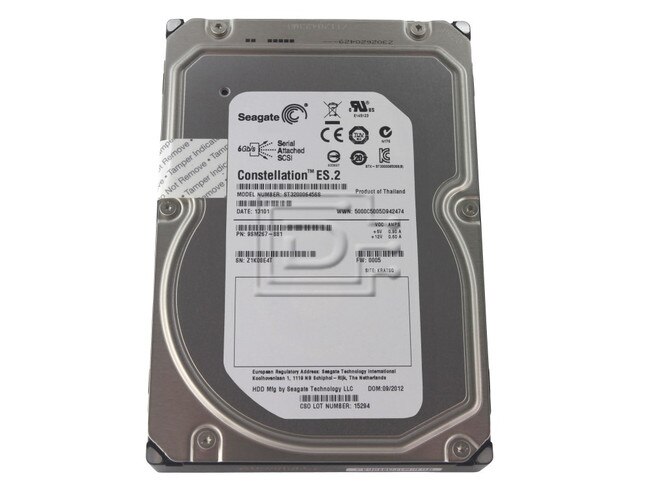

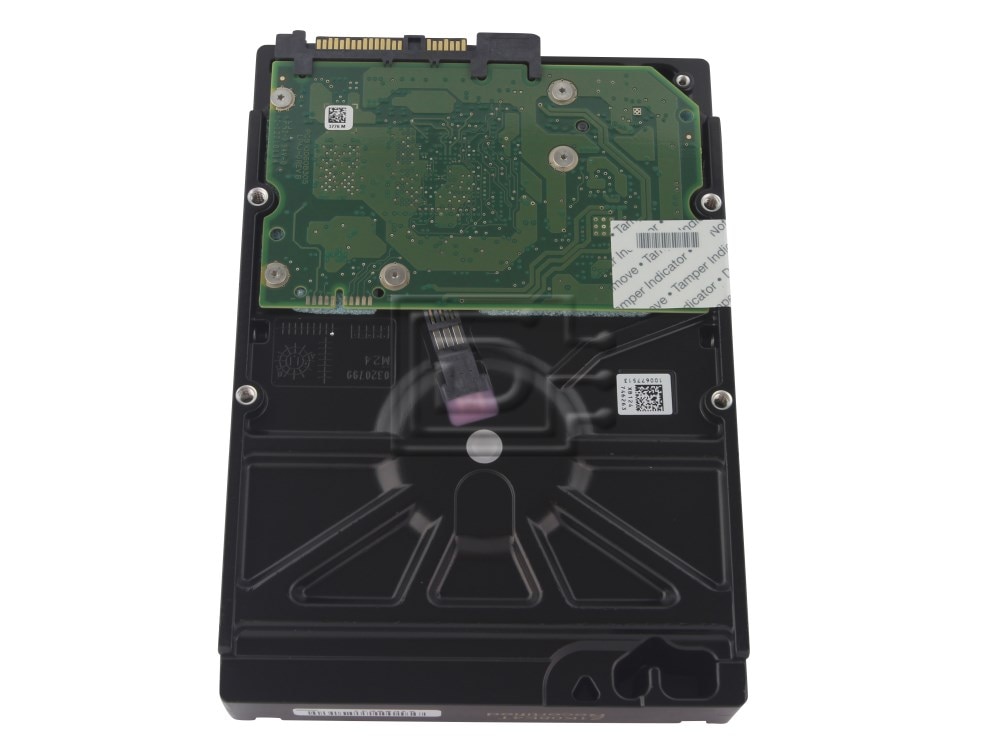

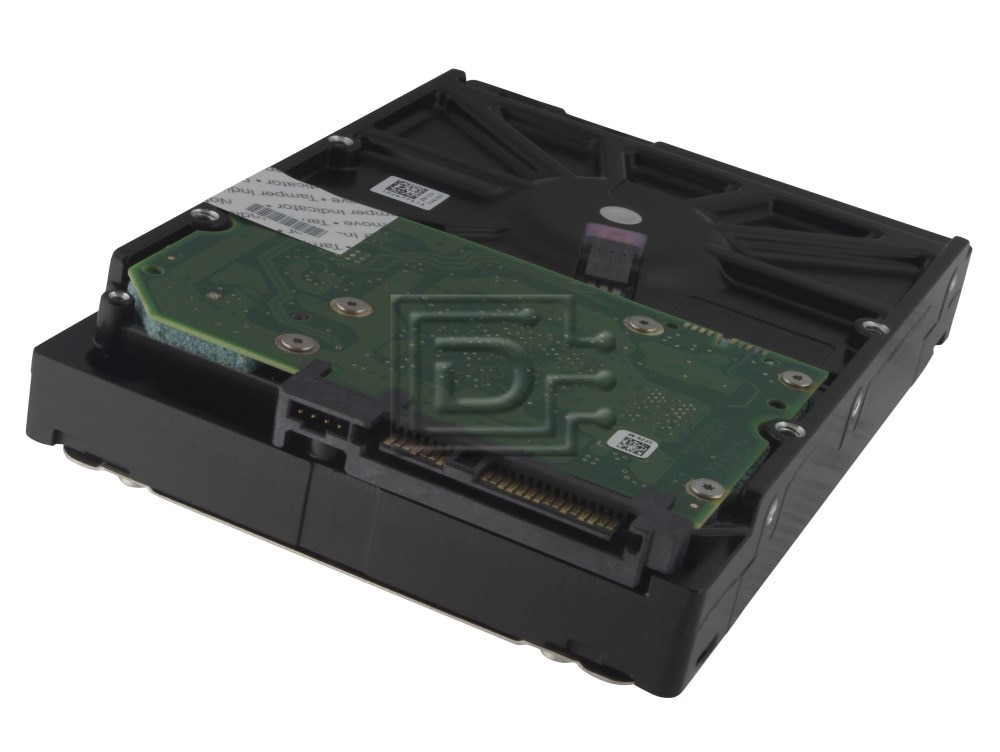

Seagate Constellation ES.2ST32000645SS 2TB / 2000GB 7.2K 6.0Gbps SCSI / SAS Hard Drive - Brand New
- Industry’s highest capacity enterprise drive for sustaining demanding data growth
- Optional Model Meets regulatory data security compliance requirements and is FIPS 140-2 Validated™ to protect Sensitive but Unclassified and Protected class data*
- Fifth-generation, capacity-optimized nearline drive designed for 24x7 enterprise reliability
- SAS-based, end-to-end data integrity and enhanced error correction for accurate data storage
- Best-in-class enhanced rotational vibration tolerance ensures consistent bulk data performance
- Improved power and cooling efficiencies with low power consumption and enhanced PowerChoice™ technology
- Multi-drive firmware maximized for enterprise system availability
- Robust performance with dual processor and ramp load technologies
Compatibility:
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
| Specifications | |
|---|---|
| Model Number | ST32000645SS |
| Interface | SAS 6Gb/s |
| Cache | 64MB |
| Capacity | 2TB |
| PHYSICAL | |
| Height (maximum) | 26.10mm (1.028 in) |
| Width (maximum) | 101.85mm (4.010 in) |
| Length (maximum) | 147.00mm (5.787 in) |
| Weight (typical) | 700g (1.543 lb) |
| PERFORMANCE | |
| Spin Speed (RPM) | 7200 RPM |
| Sustained data transfer rate | 155MB/s |
| Average latency | 4.16ms |
| Random read seek time | 8.5ms |
| Random write seek time | 9.5ms |
| I/O data transfer rate | 600MB/s |
| Unrecoverable read errors | 1 in 1015 |
| RELIABILITY | |
| MTBF | 1,200,000 hours |
| Annual Failure Rate | 0.73 |
| POWER | |
| Average idle power | 7.40W |
| Average operating power | 11.3W |
| ENVIRONMENT | |
| Ambient Temperature | |
| Operating | 5°–60°C |
| Nonoperating | -40°–70°C |
| Maximum operating temperature change | 20°C per hour |
| Maximum nonoperating temperature change | 20°C per hour |
| Shock | |
| Operating Shock (max) | 70/40 Gs for 2ms |
| Nonoperating Shock (max) | 300 Gs for 2ms |
| ACOUSTICS | |
| Acoustics (Idle Volume) | 2.8 bels |
| Acoustics (Seek Volume) | 3.2 bels |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
