SAMSUNG Part #/MPN: MZ-7PC256HAFU
DiscTech Item #: SAM-MZ-7PC256HAFU-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 256GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB
SSD Type: MLC

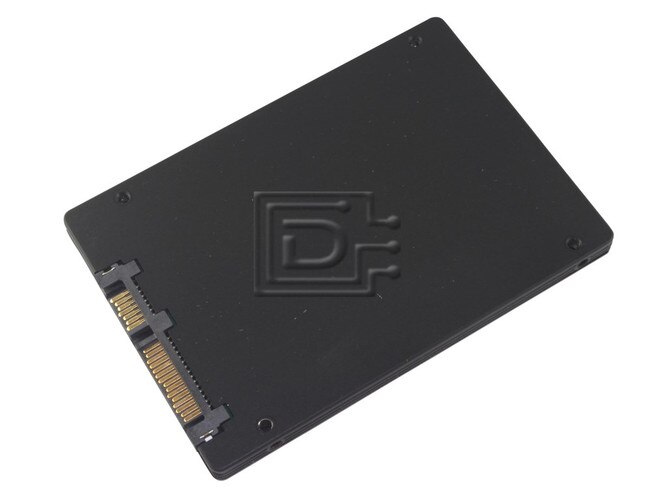

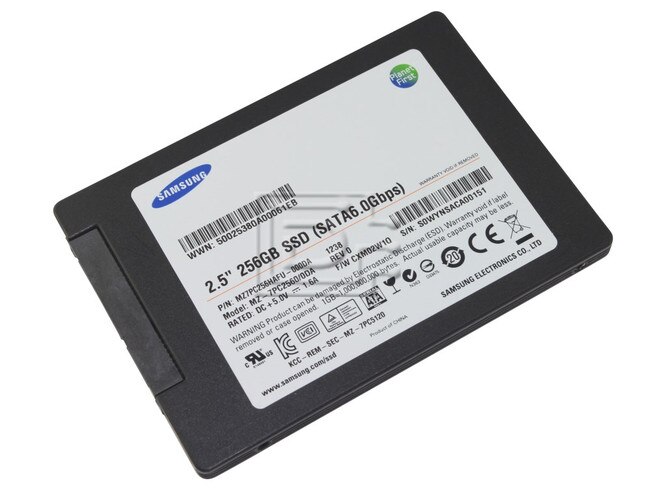

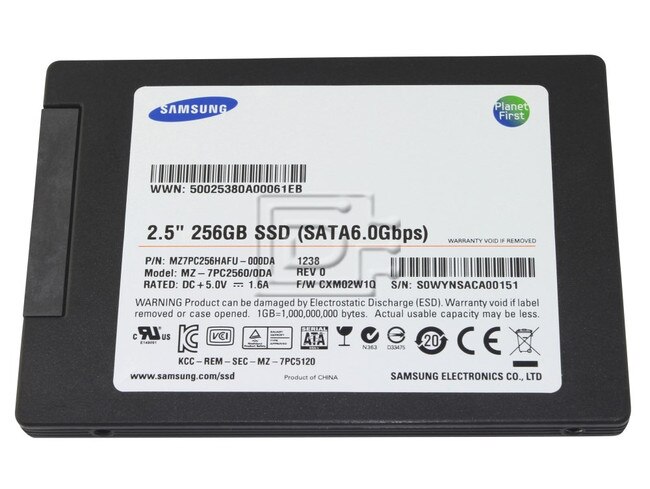

Samsung 830 Series MZ-7PC256D / MZ7PC256HAFU / MZ-7PC256N 256GB 2.5" MLC Solid State Drive / SSD SATA III Drive - New Pull
| Outstanding Performance in Multi-Tasking  |
| Samsung’s fast random read speeds (up to 80,000 IOPS) maximize performance* when it matters most. A Samsung SSD is the ideal solution for your everyday computing needs, such as web browsing, document creation, viewing or editing multimedia files, playing PC games, etc. |
Lightning Fast Speed. At Your Command |
| The 830 Series’ 520MB/s sequential read speed provides lightning fast access to your files, loading large multimedia files quickly and smoothly. |
Sustained Performance and Unrivaled Reliability |
| Samsung SSDs are designed and build completely in-house. The Samsung SSD 830 Series is optimized for exceptional, sustained performance and unrivaled reliability through its specially- engineered wear-leveling and garbage collection algorithms. |
A Complete, User-Friendly Solution |
| The Samsung SSD 830 series is available with a user-friendly installation kit, including a full version of Norton Ghost, an interactive installation guide, and premium installation tools for both desktops and laptops. |
Toggle DDR NAND Flash |
| Use the wider image option when adding this feature. We would like to capture all of the data represented on this specific feature image. However, do not use this feature image in this document, use the actual image in images folder. Samsung’s 20-nanometer-class toggle DDR NAND Flash chips enable data transfer rates of up to 133 megabits per second (Mbps)-more than three times faster than conventional (40 Mbps) single-date-rate (SDR) NAND Flash chips. |
3-core ARM9-based MCX Controller |
| While most SSD makers rely on generic, dual-core controllers, Samsung has developed its own proprietary, triple-core MCX controllers that excel in multi-tasking and help to assure stead performance over time. Based on an ARM9 controller, its three CPU cores can execute multiple instructions such reading data, writing data and optimization. |
256MB DDR2 DRAM Cache Memory |
| 256MB of DRAM cache memory helps maintain stable random read performance, even if the access range is increased. |
Samsung Model MZ-7PC256HAFU
* Solid State DriveSATA III (6 Gb/s)
* 2.5” 7 mm (Ultraslim) Form Factor
* 830 Series
Storage
* 256 GB Capacity
Features
* Up to 520 MB/s Read Speed
* Up to 400 MB/s Write Speed
* 80K IOPS Random Read Speed
* 30K IOPS Random Write Speed
Power
* .12 W Power Consumption
* 5V ± 5%
Operating Systems
* Windows 7 (32-bit and 64-bit), Vista, XP, MAC OSX, Linux Hardware Compatibility
Environmental Specs
* 32 F to 140 F Operating Temperature
Weight
* Weighs 0.14 lb.
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MZ-7PC256N
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
