SAMSUNG Part #/MPN: MZ-76E4T0B-AM
DiscTech Item #: SAM-MZ-76E4T0B-AM-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 3-5 business daysSpecial Order - Ships in 3-5 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 4TB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 550/520
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 512MB
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

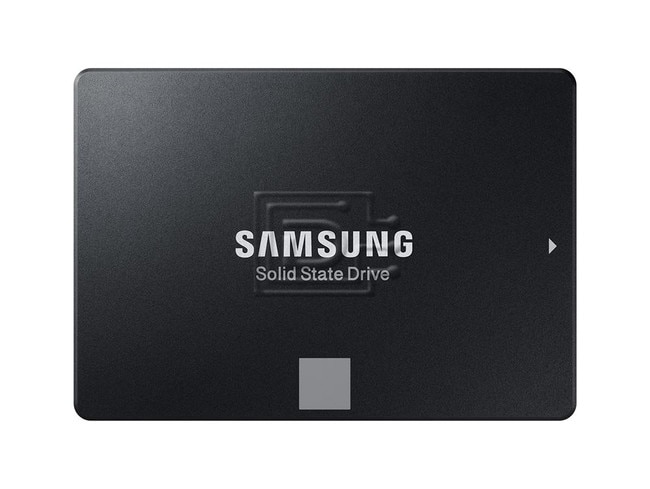

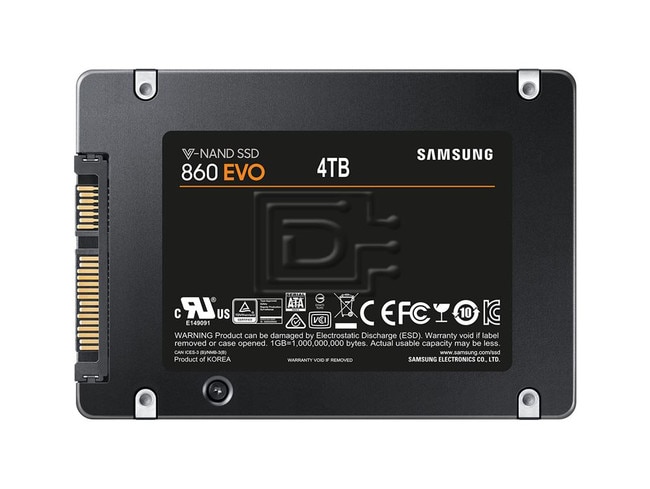

Samsung 860 EVO MZ-76E4T0B/AM 4TB 2.5-Inch 6Gbps 0.3-DWPD MLC 3D V-NAND SED SATA Solid State Drive - Brand New
Samsung 860 EVO MZ-76E4T0B/AM 4TB / 4000GB 2.5" 6.0 Gb/s Consumer / Value Endurance 0.3-DWPD / Drive Writes Per Day MLC 3D V-NAND Multi-Level Cell 3D Vertical-NAND SED / Self Encrypting SATA / Serial ATA SSD / Solid State Drive - Brand New
The SSD you trust
The newest edition to the world's best-selling* SATA SSD series, the Samsung 860 EVO is specially designed to enhance performance of mainstream PCs and laptops. With the latest V-NAND technology, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.
Enhanced performance
Speeds are consistent, even under heavy workloads and multi-tasking allowing for faster file transfer. The 860 EVO performs at sequential read speeds up to 550 MB/s* with Intelligent TurboWrite technology, and sequential write speeds up to 520 MB/s. The TurboWrite buffer size* is upgraded from 12 GB to 78 GB
Boosted endurance
Up to 8x higher TBW (Terabytes Written)* than the 850 EVO. Feel secure storing and rendering large sized 4K videos and 3D data used by the latest applications.
Smart compatibility
Benefit from faster, more fluid communication with your host system. The refined ECC* algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility.
Multiple form factors
Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.
Samsung Magician
- Management Software
Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface. - Firmware Update
Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility. - Performance Benchmark
Check your SSD’s sequential and random read/write speeds, so you can maintain superb performance - Data SecurityProtect data by selecting security options. The 860 EVO support AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.
Compatibility:
This drive is compatible with servers and arrays that accept 2.5” 7mm SATA drives
SSD 860 EVO | |
---|---|
Model Number | MZ-76E4T0B-AM / MZ-76E4T0B/AM |
Type | |
Series | SSD 860 EVO |
Usage Application | Client PCs |
Interface | SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface |
Storage | |
Capacity | 4TB / 4000GB |
Key Features | |
Sequential Read Speed | Up to 550 MB/s Sequential Read * Performance may vary based on system hardware & configuration |
Sequential Write Speed | Up to 520 MB/s Sequential Write * Performance may vary based on system hardware & configuration |
Random Read Speed | Random Read (4KB, QD32): Up to 98,000 IOPS Random Read Random Read (4KB, QD1): Up to 10,000 IOPS Random Read * Performance may vary based on system hardware & configuration |
Random Write Speed | Random Write (4KB, QD32): Up to 90,000 IOPS Random Write Random Write (4KB, QD1): Up to 42,000 IOPS Random Write * Performance may vary based on system hardware & configuration |
Controller | Samsung MJX Controller |
NAND Flash | Samsung V-NAND 3bit MLC |
Cache Memory | Samsung 2 GB Low Power DDR4 SDRAM |
Trim Support | Yes |
AES Encryption | AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
S.M.A.R.T. Support | Yes |
GC (Garbage Collection) | Auto Garbage Collection Algorithm |
WWN Support | World Wide Name supported |
Device Sleep Mode Support | Yes |
Internal Storage | Yes |
General | |
Power Consumption (W) | |
Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
Operating Temperature | 0 - 70°C Operating Temperature |
Shock | 1,500G & 0.5ms (Half sine) |
Form Factor | 2.5" SATA III |
Dimensions (W x D x H) | 3.94" x 2.76" x 0.27" 100.076mm x 70.104mm x 6.858mm |
Weight | 0.21lbs |
Management SW | Magician Software for SSD management |
TBW (Terabytes Written) | 2,400TB |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MZ-76E4T0B/AM
