SAMSUNG Part #/MPN: MZ-V7P1T0E
DiscTech Item #: SAM-MZ-V7P1T0E-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 1TB
Speed: Solid State Memory
Interface Types: NVMe U.2
Form Factor: M.2 x 80mm
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 3500/2700
Electrical Interface: PCIe - v3.0 - 16GBps
On-Board Cache: 1TB
SSD Type: TLC
SSD Endurance DWPD: Consumer / Value

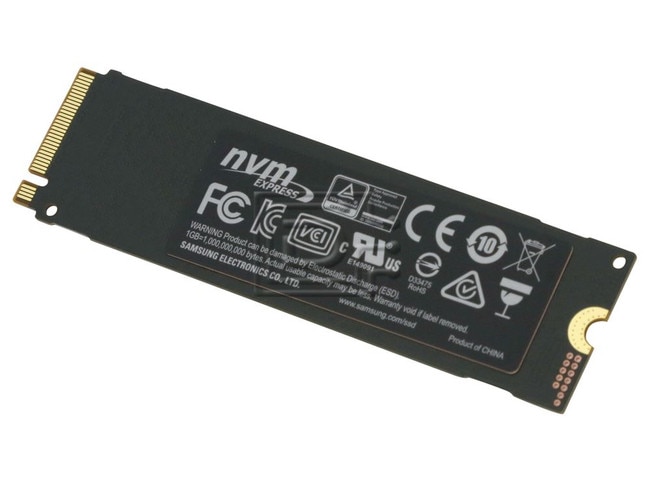

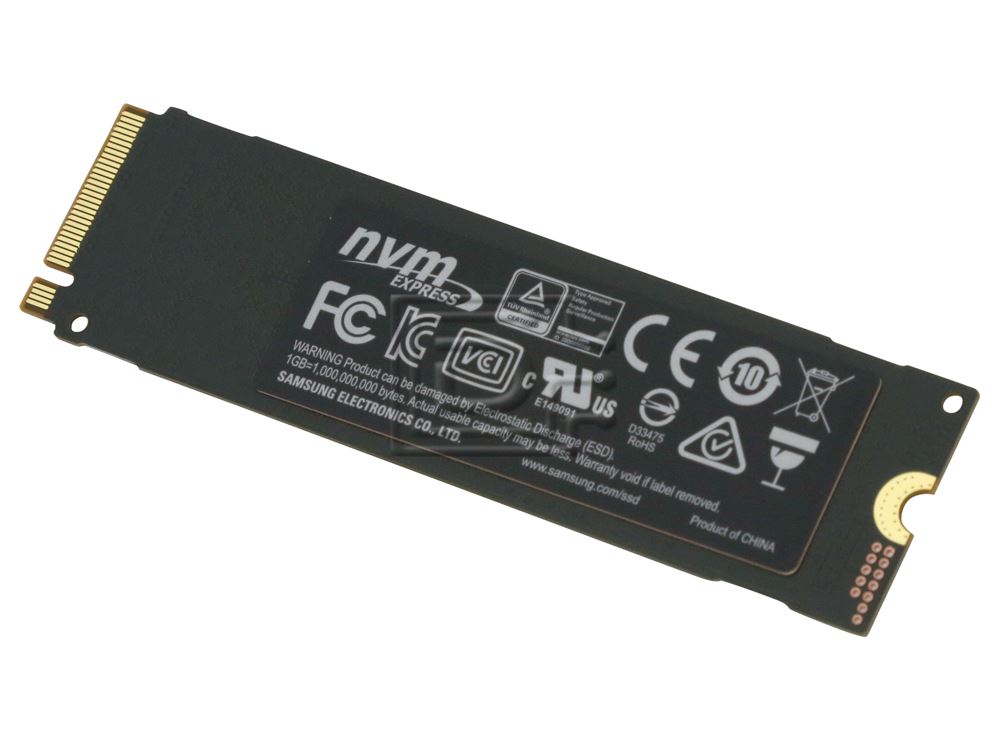

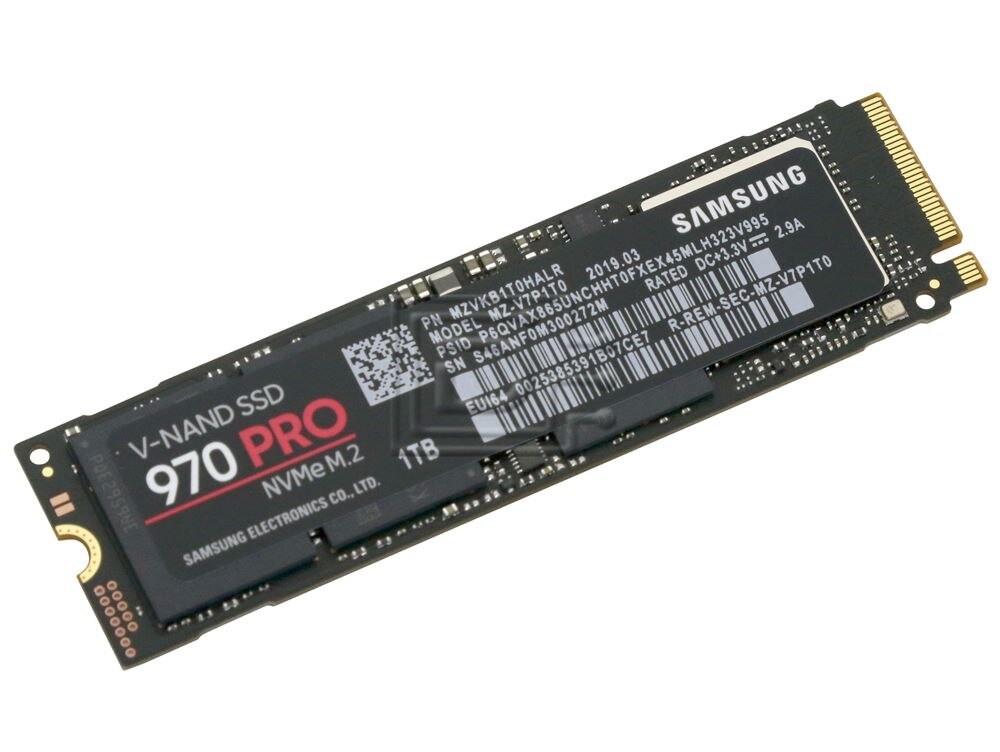

Samsung SSD 970 PRO MZ-V7P1T0E 1TB M.2 2280 Consumer 0.65-DWPD TLC SED PCIe 3.0 x4, NVMe 1.3 SSD - Brand New
Samsung SSD 970 PRO MZ-V7P1T0E 1TB M.2 2280 Consumer 0.65-DWPD TLC SED PCIe 3.0 x4, NVMe 1.3 SSD - Brand New
Summary
- - PCIe 3.0 x4 NVM Express SSD for Client PCs
- M.2 (2280)
- Samsung 64L V-NAND - TLC Samsung
THE SAMSUNG NVMe SSD 970 PRO
Featuring our latest V-NAND technology and a newly enhanced Phoenix controller, Samsung 970 PRO Series NVMe M.2 SSDs are designed for heavy workloads and engineering applications. These Non-Volatile Memory Express (NVMe) SSDs outperform our previous 960 PRO models with exceptionally fast sequential and random speeds. Plus, Samsung's Magician software solution provides advanced functionality for you to manage, monitor and maintain your drive. This model is packaged in a simple white box to support the needs of our solution providers. NVMe speeds up sequential and random read/write performance Compact M.2 form factor ready for high-end computing Samsung Magician software for SSD management, including automatic firmware updates Ideal for high-performance client PC applications (not designed for server or data center applications and warranty does not support such usage)
Compatibility:
This drive is compatible with any system that accepts M.2 x 80mm PCIe NVMe Solid State Drives.
| Samsung SSD 960 PRO M.2 | |
|---|---|
| Model No | MZ-V7P1T0E |
| TECHNICAL SPECIFICATIONS | |
| Usage Application | Client PCS |
| Interface | PCIe Gen 3.0 x4, NVMe 1.3 |
| Hardware Information | |
| Capacity | 1TB / 1000GB (1,024GB) |
| Density | 1TB / (1,024GB) |
| Controller | Samsung Phoenix Controller |
| NAND Flash Memory | Samsung 64L V-NAND TLC |
| DRAM Cache Memory | 1GB LP DDR4 |
| Dimension | Max 80.26 x Max 22.09 x Max 2.28 (mm) |
| Form Factor | M.2 2280 |
| Performance (Up to) | |
| Sequential Read | 3,500MB/s |
| Sequential Write | 2,700MB/s |
| Randon Read (QD1, Thread 1) | 15,000 IOPS |
| Random Write (QD1, Thread 1) | 55,000 IOPS |
| Random Read (QD32, Thread 4) | 500,000 IOPS |
| Random Read (QD32, Thread 4) | 500,000 IOPS |
| Data Security | AES 256-bit Encryption (Class 0), TCG Opal v2.0, IEEE 1667 (Encrypted Drive) |
| Support Features | TRIM(Required OS support), Garbage Collection, S.M.A.R.T |
| Temperature | |
| Operating | 0°C to 70°C (Measured by SMART Temperature. Proper airflow recommended) |
| Non-Operating | -45°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
| Shock (Non-Operating) | 1,500G, duration: 0.5ms |
| Vibration (Non-Operatin) | 20-2,000Hz, 20G |
| Reliability | 1.5 million hours (MTBF) |
| Weight | Max 8.5g |
| Total Bytes Written | 800 TBW |

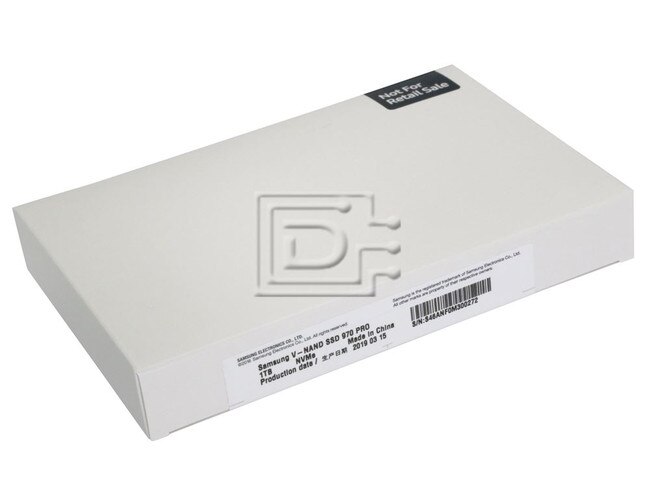

| Box Contents | Samsung SSD 970 PRO 1TB |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.25 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
