Samsung HS081HA iPod hard drive


DiscTech Item #: SAM-HS081HA-FR-OE


Capacity: 80GB

Speed: 3,600RPM

Interface Types: IDE ATA 1.8in ZIF

Form Factor: 1.8inx5mm

Sector Size: 512 / 512e

Sustained Throughput: 46

Average Seek Time: 15

Electrical Interface: EIDE Ultra ATA66 66MBps

On-Board Cache: 2MB

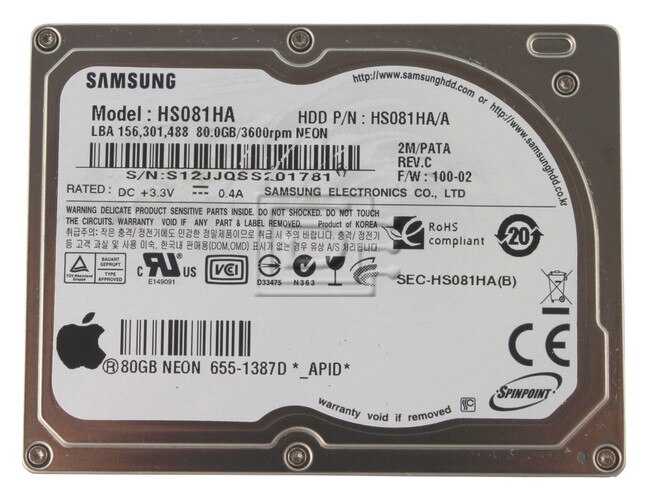

Samsung Spinpoint HS081HA 80GB 3.6K 1.8" IDE ZIF iPod / CE Hard Drive - Factory Recertified


• MAX.80GB Formatted Capacity Per Disk

• ATA S.M.A.R.T Compliant

• High Speed Digital Signal Processor Based Architecture

• ATA 28-bit Address Feature Set

• Low Power HDC

• Multi-Burst On-The-Fly Error Correction

• Advanced Power Management Control

• SilentSeek™

• Fluid Dynamic Bearing Spindle Motor Technology

Alternate PN's: 655-1387D

Apple iPod hard drive upgrade for 5th generation MP3 players, iPod video and other consumer electronic devices that take 1.8" IDE ZIF hard drives.

Drive Configuration
Rotational Speed3600 RPM
Buffer DRAM Size2Mb
Byte per Sector512K
Average Seek Time (typical)15.0 ms
Average Latency8.3 ms
Media Transfer Rate46 MB/s
Drive Ready Time2.0 sec
Physical Dimension

Alternate MPNs: 655-1387D

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
