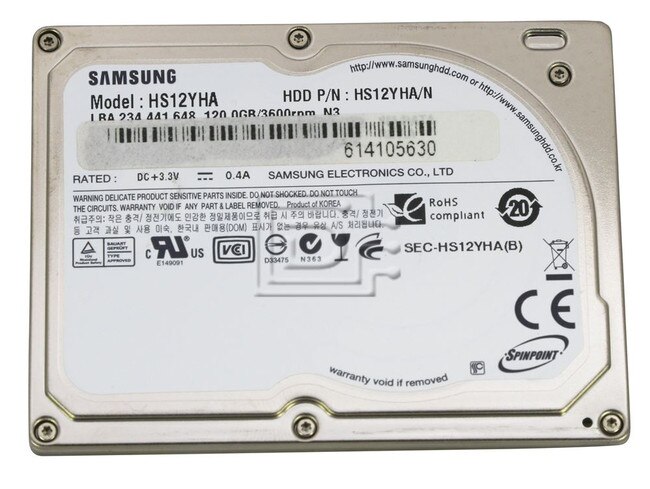

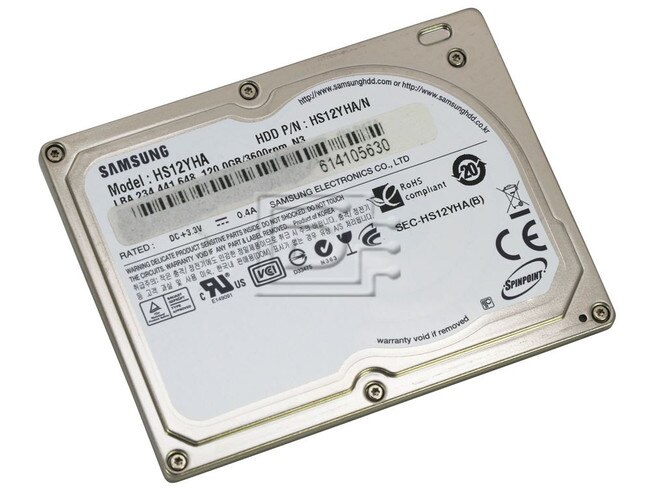

Samsung HS12YHA iPod hard disk drive


DiscTech Item #: SAM-HS12YHA-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 120GB

Speed: 3,600RPM

Interface Types: IDE ATA 1.8in ZIF

Form Factor: 1.8inx5mm

Sector Size: 512 / 512e

Average Seek Time: 15

Electrical Interface: EIDE Ultra ATA66 66MBps

On-Board Cache: 8MB

Samsung Spinpoint HS12YHA 120GB 3.6K 1.8" IDE ZIF iPod / CE Hard Drive - Brand New


  • Formatted capacity : 120GB
  • High Speed Digital Signal Processor Based Architecture
  • Low Power HDC
  • Advanced Power Management Control
  • Fluid Dynamic Bearing Spindle Motor Technology
  • SATA S.M.A.R.T Compliant
  • SATA 48-bit Address Feature Set
  • Multi-Burst On-The-Fly Error Correction
  • SilentSeek™
  • Free Fall Sensor (optional)

Target Application

  • camcorders, MP3 players, navigations, PMP(Personal Media Player), UM PC
Drive Configuration
Rotational Speed3600 RPM
Buffer DRAM Size8Mb
Byte per Sector512K
Average Seek Time (typical)15.0 ms
Average Latency8.3 ms
Media Transfer Rate550 Mb/s
Drive Ready Time3.0 sec
Physical Dimension

Click here to view the manufacturer's item description/brochure

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
