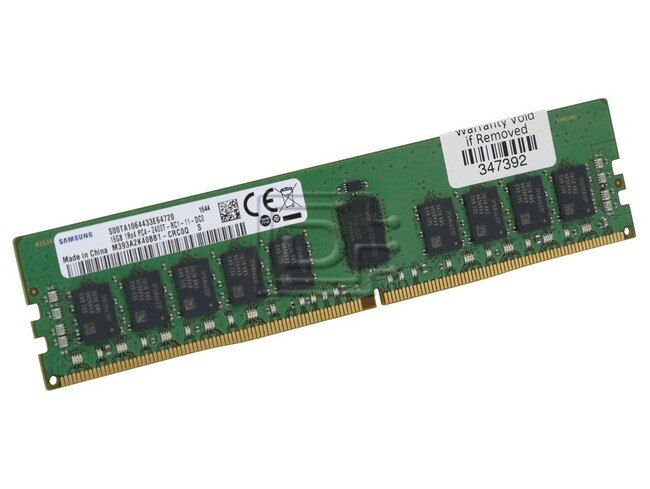

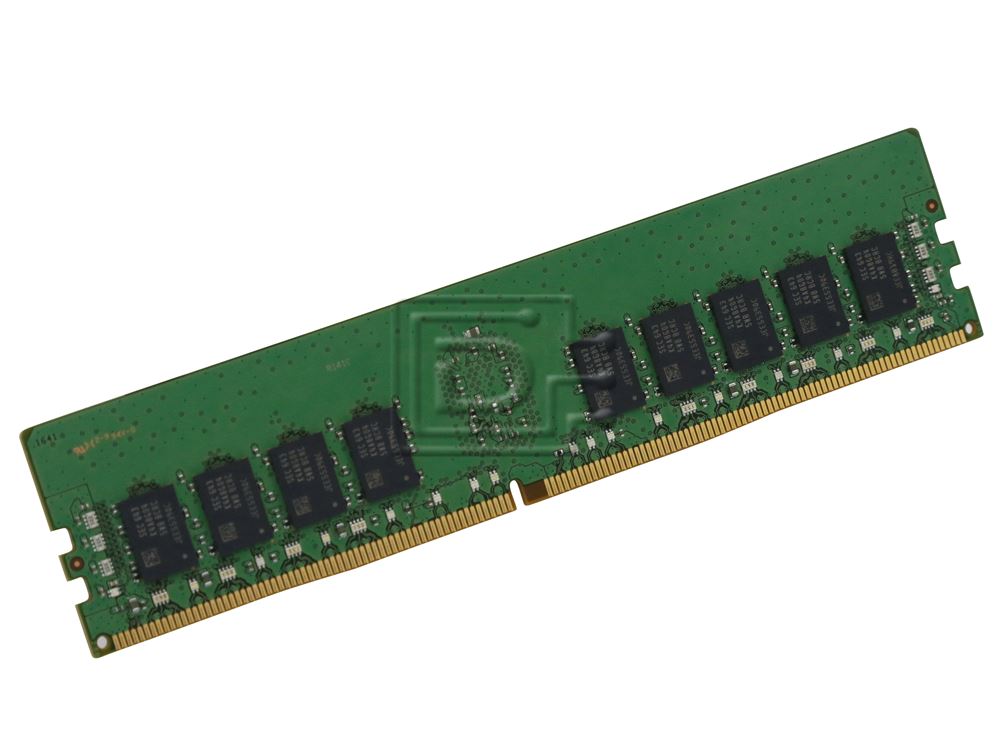

Samsung M393A2K40BB1-CRC 16GB DDR4 ECC DIMM

SAMSUNG Part #/MPN: M393A2K40BB1-CRC

DiscTech Item #: SAM-M393A2K40BB1-CRC-NP-OE

$79.00
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$79.00

Form Factor: DDR4 RDIMM

Electrical Interface: PC4-24000

On-Board Cache: 16GB

Voltage: 1.2V

Compatible Systems: Dell 14th Gen. R640/R740, HP 9th Gen. G9, HP 8th Gen. G8

Samsung M393A2K40BB1-CRC 16GB DDR4 PC4-2400T 2400MHz ECC Registered w/Parity 288-Pin DIMM - New Pull

Samsung M393A2K40BB1-CRC 16GB DDR4 PC4-2400T 2400MHz ECC Registered w/Parity 288-Pin DIMM - New Pull

Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD=1.2V • VDDQ = 1.2V

• VPP - 2.5V • VDDSPD=2.25V to 2.75V

• Functionality and operations comply with the DDR4 SDRAM datasheet

• 16 internal banks • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available

• Data transfer rates: PC4-2400, PC4-2133, PC4-1866, PC4-1600

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Supports ECC error correction and detection

• On-Die Termination (ODT)

• Temperature sensor with integrated SPD

• This product is in compliance with the RoHS directive.

• Per DRAM Addressability is supported

• Internal Vref DQ level generation is available

• Write CRC is supported at all speed grades

• CA parity (Command/Address Parity) mode is supported



Compatibility: Any Server or systems that will take DDR4-PC2400 RDIMM at 1.2V

Compatibility
Dell PowerVault/Storage NX3230
Dell XC Web-Scale XC630
Dell XC Web-Scale XC730xd
Dell PowerEdge Servers:
FC630
M630 Blade
R630
R730
R730xd
T630

SuperMicro Super X11DDW series server boards and systems.


Intel:

S2600BP Server
S2600ST Server
S2600WF Server

SPECIFICATIONS
Model NumberM393A2K40BB1-CRC
CPU SPECIFICATIONS
BrandSamsung
Form FactorRDIMM
Capacity16GB Kit (1 piece)
Specs
  • DDR4 PC4-2400
  • CL=17
  • 2Rx4
  • x4 based
  • Registered
  • ECC
  • 2Gx4 x 18
  • 1.2V
    • ECCECC
    Kit Qty1
    Speed2400MHz
    Tracer
    Voltage1.2V
    DIMM TypeRegistered
    Component Configurationx4 based
    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: M393A2K40BB1

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech
