SAMSUNG Part #/MPN: MMDPE56GFDXP-MVB
DiscTech Item #: SAM-MMDPE56GFDXP-MVB-BN-OE
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Speed: Solid State Memory
Interface Types: SATA 1.8in Micro for ultra mobile applications
Form Factor: 1.8inx3.5mm Ultrathin Caseless
Sector Size: 512 / 512e
Sustained Throughput: 90
Electrical Interface: SATA 300 - 3.0Gbps
SSD Type: MLC
Samsung Thin Caseless 256GB Slim uSATA 1.8" MLC SSD SATA Hard Drive MMDPE56GFDXP-MVB - Brand New
High-Performance, Low-Power Storage Device for Mobile PCs is Light, Rugged and Reliable
Samsung’s Multi Level Cell (MLC) Solid State Drive (SSD) is an advanced NAND flash-based solution for traditional storage, leveraging the company’s longtime leadership in memory technology. This next-generation solution offers several advantages over rotating magnetic media such as significantly lower power consumption, remarkable ruggedness, high reliability, less weight and outstanding performance. According to iSuppli, approximately 25% of notebooks will have solid state storage by 2010.
The S.S.D. system is currently selling as an alternative high-end storage device for notebooks by many major PC manufacturers. The 64-gigabyte model surpasses a key storage threshold for business users; according to surveys, this is adequate storage for approximately 80% of professionals.
The SSD’s weight is almost 25% less than that of a conventional hard drive, thus further increasing easy system portability. The device also uses significantly less power—about 0.41W in operational mode and 0.24W in standby mode. This gives users up to 10% more battery life. The drive currently comes in SATA II or PATA versions and in 2.5-inch and 1.8-inch form factors.
Excellent Read/Write and Boot-up Performance
Samsung’s Solid State Drive performance is 200% greater than traditional storage.1 For example, the 64-gigabyte model boots up in 36 seconds versus 63 seconds for traditional hard drives. Applications launch 1.5 to three times faster, depending on the specific application. In addition, random search times are about three times faster on the SSD, which is not subject to fragmentation and maintains its performance over time.
As a non-volatile storage device, the SSD has no moving parts such as the motor, disks and heads of a hard drive. Thus it eliminates spin-up time, seek time and rotational latency while delivering sustained high-speed data transfers. The SSDs lack of moving parts makes it noise-free and its ultra-low power consumption virtually eliminates heat emissions.
The SSD is also highly rugged, standing up to shock and vibration while performing in temperatures from 0°C to 70°C. These performance features make it well suited to a broad range of users. These include “road warrior” business professionals, as well as those in demanding military and industrial areas.
Fully Compatible with Mobile PCs
Samsung designed the SSD’s footprint to be interchangeable with a hard disk drive. Standard SSDs are available in 2.5-inch and 1.8-inch form factors with storage capacities ranging from 32 to 256 gigabytes. Furthermore, because the SSD is form-factor agnostic, the flash components can be arranged to meet virtually any size or shape configurations.
Key Features & Benefits
Reduced Power Requirements
- No moving parts
- Super-low operating and standby power needs
- Extends battery life up to 10%
- No spin up
- No seek time
- No rotational latency
- Sustained high-speed data transfers
- Up to 220MB/s sequential read; 175MB/s sequential write
- Can cut boot-up time in half
- No moving parts to fail
- Greater resistance to shock and vibration
- Noise free
- Virtually no heat emissions
- Weighs almost 25% less than conventional storage
Supports Variety of PCs
- Native SATA II (3Gb/s)
- 2.5”, 1.8”
- Up to 220MB/s read; 175MB/s write
This MLC Solid State Disk (SSD) is compatible with laptops that take 1.8" integrated SSD drives.

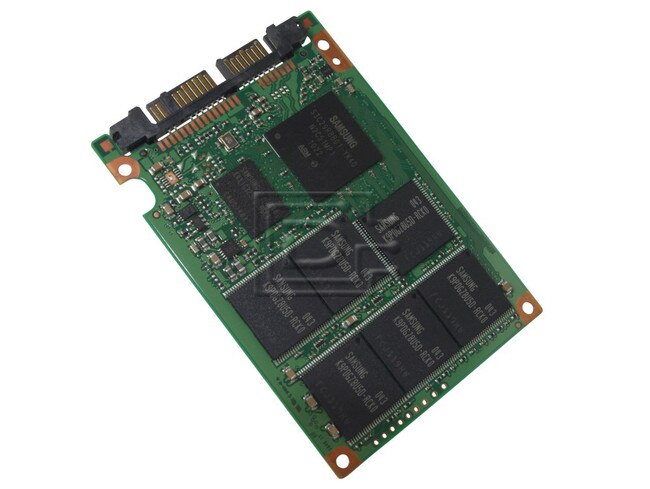

Note: There is no protective casing around the PCB and NAND chips. This drive is designed to be installed in ultra thin laptops.
|Model Name||MLC SSD SATA 1.8"|
|Height||5.0 ± 0.15mm|
|Width||54.0 ± 0.2mm|
|Length||78.50 ± 0.3mm|
|Formatted Capacity||256 Gbytes|
|Formatted Int Seq. Transfer Rate (read)||up to 220 MBytes/sec|
|Formatted Int Seq. Transfer Rate (write)||Up to 175 MBytes/sec|
|External (I/O) Transfer Rate (max)||3 Gbits/sec|
|Max Operating Shock ( @ 0.5msec half sine wave )||1500 Gs|
|Max Nonoperating Shock ( @ 0.5msec half sine wave )||1500 Gs|
|Operating Vibration (max)||20G Peak, 10 ~ 2000Hz, (15mins/ Axis) x3 Axis|
|Humidity||0°C to 55°C / 90~98% RH|
|Operating Temperature||0°C to 70°C|
|Nonoperating Temperature||-55°C to 95°C|
|MTBF (Hours)||1,000,000 hours|
Click here to view the manufacturer's item description/brochure
Weight: 0.5 lb
Warranty: 1 Year DiscTech
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
