SAMSUNG Part #/MPN: MZ-75E120B/AM
DiscTech Item #: SAM-MZ-75E120B-AM-BN-5Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 520 to 540
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 1GB
SSD Type: TLC
SSD Endurance DWPD: Consumer / Value

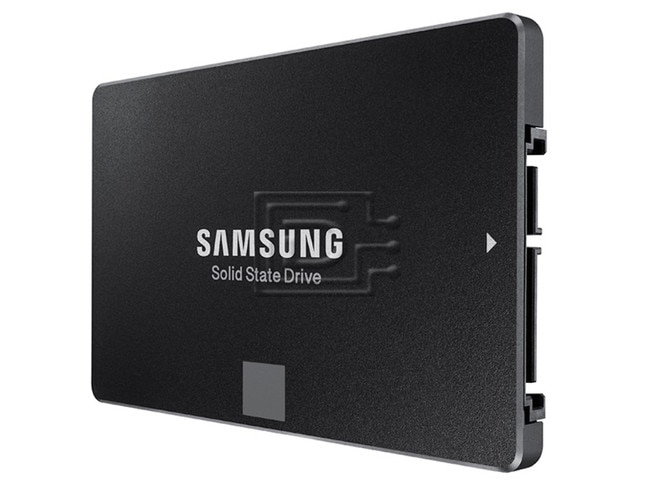

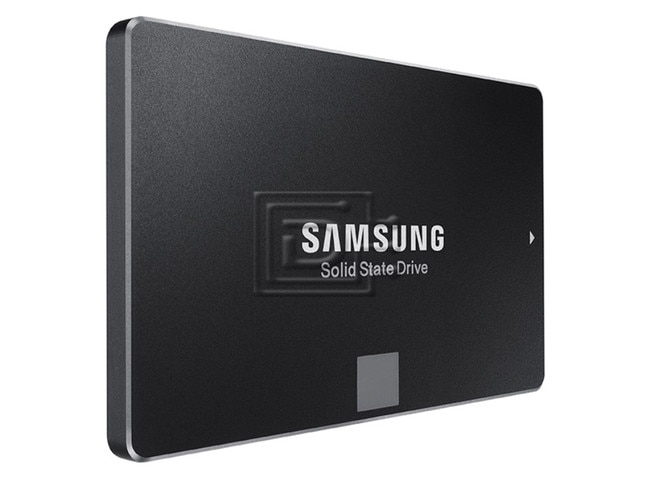

Samsung MZ-75E120B/AM 120GB 2.5in 6Gbps TLC 3D V-NAND SED 850 EVO SATA SSD - Brand New
Samsung MZ-75E120B/AM 120GB 2.5" 6.0 Gbps, Triple Level Cell, 3D V-NAND, Self-Encrypting, 850 EVO Serial ATA, Solid State Disk Drive - Brand New
Make Your Mark With a New Caliber of Performance and Reliability
The 850 EVO enhances all aspects of daily computing through the latest in advanced 3D V-NAND technology.
Samsung SSD 850 EVO
Upgrade virtually every aspect of your computer’s performance with Samsung’s new 850 EVO, designed with the very latest in state-of-the-art SSD advancements including 3D V-NAND technology. As the next generation beyond the best-selling 840 EVO, you’ll get the 850 EVO’s new three-dimensional chip design that enables superior performance, greater reliability and superior energy efficiency so you can work and play faster and longer than ever before.
What is 3D V-NAND and how does it differ from existing technology? - Samsung’s innovative 3D V-NAND ash memory architecture breaks through density limitations, performance and endurance of today’s conventional planar NAND architecture. Samsung 3D V-NAND stacks 32 cell layers vertically resulting in higher density and better performance utilizing a smaller footprint.
Optimize daily computing with TurboWrite technology for unrivaled read/write speeds - Achieve the ultimate read/write performance to maximize your everyday computing experience with Samsung’s TurboWrite technology. You can obtain up to 1.9x faster performance than the award-winning Samsung 840 EVO . The 850 EVO delivers class-leading performance in sequential read 540 MB/s and write 520 MB/s speeds. Plus, you also gain optimized random performance in all QD for better real-world performance.
Get into the fast lane with the improved RAPID mode - Samsung’s Magician software supports RAPID mode for 2x faster performance by utilizing unused PC memory (DRAM) as high-speed cache storage. The newest version of Samsung Magician supports up to a 4GB cache on a system with 16GB of DRAM.
Guaranteed endurance and reliability bolstered by 3D V-NAND technology - The 850 EVO delivers guaranteed endurance and reliability by doubling the endurance compared to the previous generation 840 EVO. With enhanced long-term reliability, the 850 EVO assures long-term dependable performance of up to 30% longer than the previous generation 840 EVO.
Improved energy efficiency enabled by 3D V-NAND - The 850 EVO delivers signi¬cantly longer battery life on your notebook with a controller designed and optimized for 3D V-NAND that supports Device Sleep for Windows® at a highly efficient 2mW. The 850 EVO features 25% better power efficiency than the 840 EVO during write operations thanks to ultra efficient 3D V-NAND only consuming half the energy than that of traditional Planar 2D NAND.
Secure valuable data through advanced AES 256-bit encryption - The 850 EVO comes forti¬ed with the latest hardware-based full disk encryption engine. The AES 256-bit hardware encryption secures data without any performance degradation and complies with TCG Opal 2.0. It is also compatible with Microsoft® eDrive IEEE1667 to integrate simply in the latest versions of Windows so your data is protected at all times for your peace of mind.
Level up to the 850 EVO simply without any hassle - In three simple steps the Samsung’s One-stop Install Navigator software easily allows you to migrate all the data and applications from your existing drive to the 850 EVO. The included Samsung Magician software also allows you to set up, optimize and manage your system for peak SSD performance.
Acquire an integrated in-house solution consisting of top-quality components - Samsung is the only SSD brand to design and manufacture all its components in-house, allowing for complete optimized integration. The result – enhanced performance, lower power consumption with an up to 1GB LPDDR2 DRAM cache memory and improved energy efficiency with the MEX/MGX controller – all from the #1 memory manufacturer in the world.
This drive is compatible with any server that accepts 2.5inx7mm SATA drives
|Controller||Samsung MGX Controller|
|NAND Flash Memory||Samsung 32-Layer 3D V-NAND|
|Seq. Read||Up to 540MB/sec|
|Seq. Write||Up to 520MB/sec|
|Ran. Read @ 4KB/QD32||94000|
|Ran. Write @ 4KB/QD32||88000|
|Operating Features||Standard Operating Voltage 5V ± 5% |
Power Consumption (Active): 2.1W
Power Consumption (Idle) 50mW
|Reliability (MTBF)||2.0M Hours|
|Temperature||32°F to 158°F (Operating)|
|Humidity||5% to 95%, Non-Condensing|
|Trim Support||Yes (Requires OS Support)|
|RAID Support||Yes (with RAID Controller)|
|Encryption||Yes, Class 0 (256-Bit AES), TCG/Opal v2.0, MS eDrive (IEEE1667)|
|Software Compatibility|| Windows 8 (32-bit and 64-bit) |
Windows 7 (32-bit and 64-bit)
Vista (SP1 and above)
XP (SP2 and above)
Windows Server 2008 (32-bit and 64-bit)
Windows Server 2003 (32-bit and 64-bit with SP2 and above)
|Product Dimentions (W x H x L)||2.76 x 0.27 x 3.94 in. |
2.5" Form Factor
Only 7mm Thick to Accommodate Ultraportables and Netbooks
|Product Weight||Max 0.12 lbs|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: MZ-75E120B-AM
Weight: 1 lb
Warranty: 5 Year Manufacturer
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
