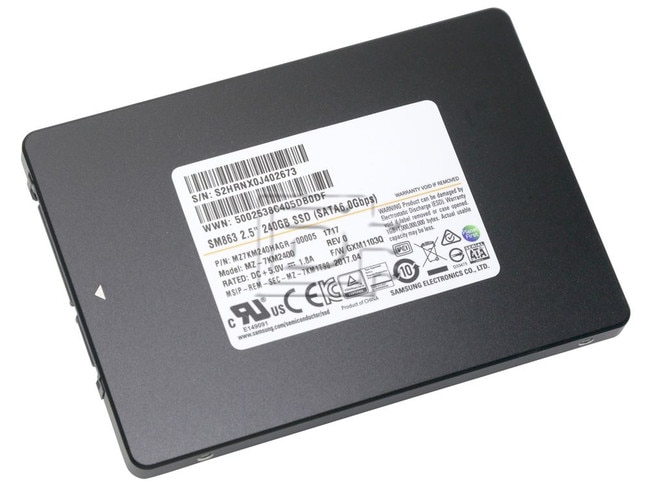

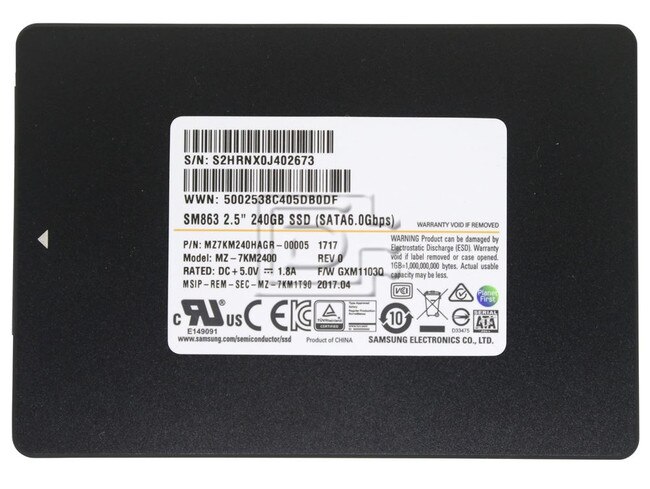

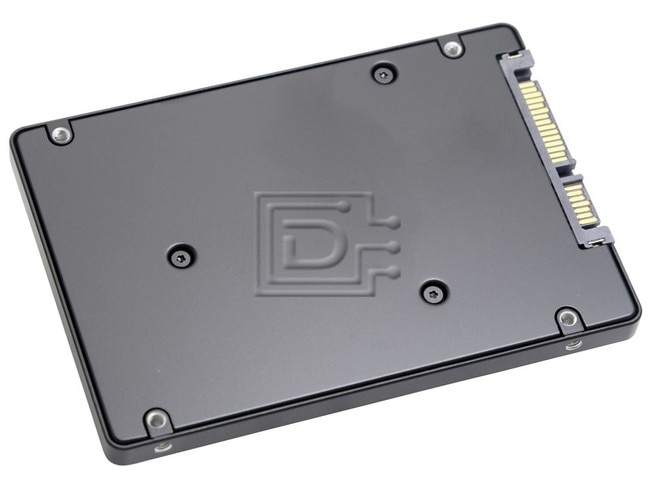

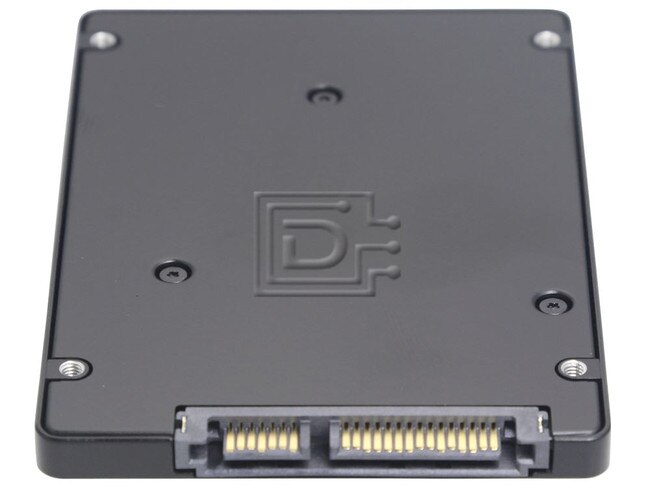

Samsung MZ-7KM2400 240GB Enterprise SATA SSD

(0) No Reviews Yet

SAMSUNG Part #/MPN: MZ-7KM2400

DiscTech Item #: SAM-MZ-7KM2400-BN-OE


$149.00
$149.00

Enterprise Grade

Capacity: 240GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 520 Read /485 Write

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use

Samsung SM863 MZ-7KM2400 240GB 2.5in 6Gbps eMLC Mixed Use 3.6-DWPD Enterprise SATA SSD - Brand New

Samsung SM863 MZ-7KM2400 240GB 2.5in 6Gbps eMLC Mixed Use 3.6-DWPD Enterprise SATA SSD - Brand New

At a Glance
Samsung’s SM863 SSDs feature our own V-NAND technology and are built from Samsung components. They are an ideal storage solution for applications such as mail servers, data warehousing and high performance computing, providing high endurance for around the clock operations.

  • Built for mixed use enterprise applications
  • Built for sustained performance with strong IOPS consistency
  • Tantalum capacitors for power loss protection
  • Low latency and high quality of service (QoS)

Features

  • V-NAND Technology - Samsung's V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 48 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.
  • Sustained Performance - Built to handle the 24/7 operation and heavier workloads of data center usage, the SM863 delivers an exceptionally high level of sustained performance and consistent low latency over the life of the SSD to meet the demands for increasing data handling.
  • IOPS Consistency - When combined in RAID configurations with multiple drives, small variations are multiplied and lead to significant effects on performance. The SM863 delivers an exceptional level of performance above 99% in random read, as well as superior performance in random write.
  • Outstanding Reliability - The SM863 is optimized for server and data center environments by offering reinforced endurance, enterprise-grade power-loss protection thanks to tantalum capacitors, low power consumption.
  • Latency and QoS - The SM863 offers extremely low latency and a high level of Quality of Service (QoS), which are both essential for data center and cloud server applications.
  • Advanced ECC Engine and End-to-End Data Protection - Detect signal discrepancies and proactively remedy them in real time with the Error Correcting Code (ECC) engine.
  • Power-Loss Protection - Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture. Using the electricity from a tantalum capacitor to provide enough time to transfer the cached data in the DRAM to the flash memory, you can be assured no loss of data.
  • S.M.A.R.T. - Monitor the computer drives proactively to detect and report various reliability indicators with Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T).
  • Dynamic Thermal Guard Protection - Safeguard the SSD from overheating by automatically controlling the speed of the CPU relative to its core temperature, by throttling back the performance to prevent thermal shutdown.
Mfg Pt# MZ7KM240HAGR-00005



Compatibility:

This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.

SATA Enterprise SSD for Business
Model NumberMZ-7KM2400
Specifications
Product TypeSATA 6Gb/s
SeriesSM863
Application
Data CenterYes
Storage
Capacity240GB
Key Features
Sequential Read Speed520 MB/s
Sequential Write Speed485 MB/s
Random Read Speed
  • Random Read IOPS (4KB): 97K
  • Random Write Speed
  • Random Write IOPS (4KB): 20K
  • NAND FlashV-NAND
    General
    Power Consumption (W)
  • Read: 2.2W
  • Write: 2.7W
  • Voltage5.0 V + 5%
    Reliability (MTBF)/td>2.0 Million Hours Reliability (MTBF)
    Environmental Specs
    Operating Temperature0 °C to 70 °C
    Non-Operating Temperture-40°C to 85 °C
    Operating Humidity5% to 95% non-condensing
    Shock1500 G
    Duration 0.5 ms
    Half Sine Wave
    Form Factor
    Product2.5" 7mm SATA
    Dimensions (W x D x H)
    Product3.94" X 2.75" X .27"
    Weight
    Product0.13 lb

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: MZ7KM240HAGR-00005

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
