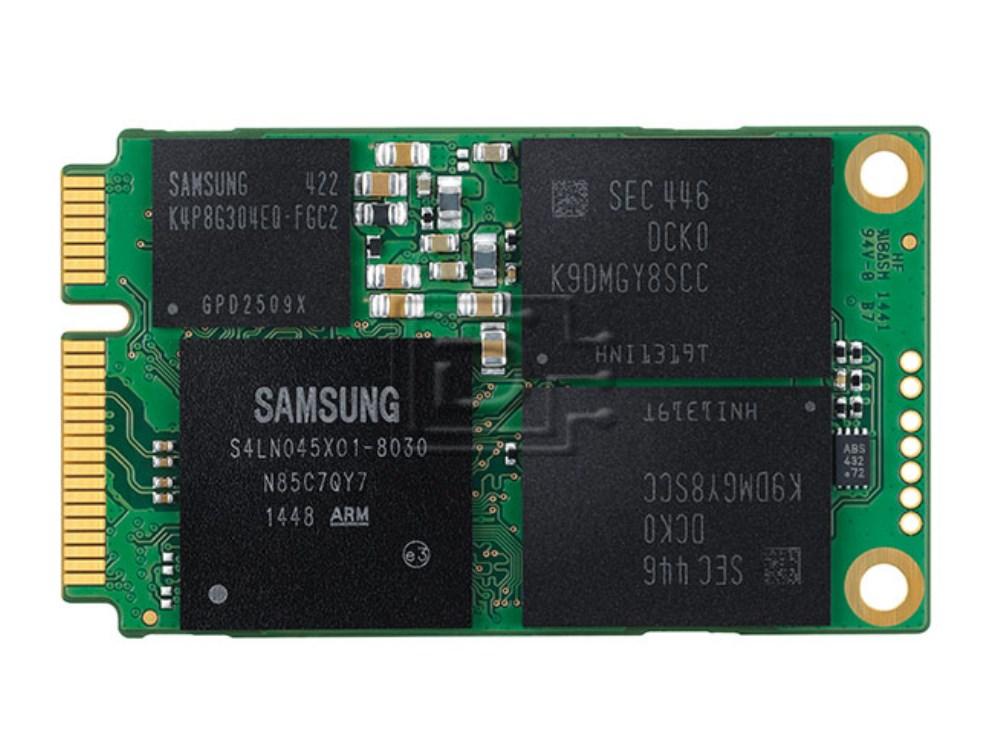

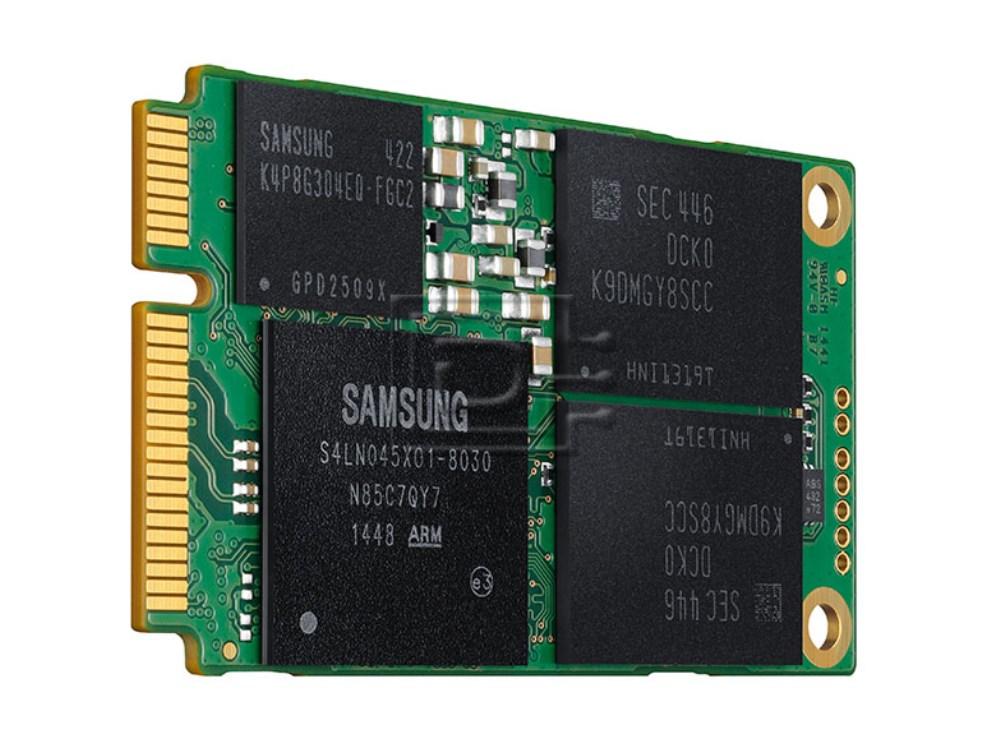

Samsung MZ-M5E120BW 120GB mSATA SSD

SAMSUNG Part #/MPN: MZ-M5E120BW

DiscTech Item #: SAM-MZ-M5E120BW-BN-5Y


$119.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$119.00

Capacity: 120GB

Speed: Solid State Memory

Interface Types: SATA 1.8in Mini-SATA / MSATA

Form Factor: 1.8inx3.5mm Ultrathin Caseless

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 520 to 540

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 512MB

SSD Type: TLC

SSD Endurance DWPD: Consumer / Value

Samsung MZ-M5E120BW 120GB 1.8in 6Gbps TLC 3D V-NAND SED 850 EVO mSATA SSD - Brand New

Samsung MZ-M5E120BW 120GB 1.8" 6.0 Gbps, Triple Level Cell, 3D V-NAND, Self-Encrypting, 850 EVO, mini Serial ATA, Solid State Disk Drive - Brand New

ABOUT THIS PRODUCT

The Samsung SSD 850 EVO. The top SSD for top professionals.

3D V-NAND Technology - Samsung’s innovative 3D V-NAND flash memory architecture breaks through density, performance, and endurance limitations of today’s conventional planar NAND architecture. Samsung 3D V-NAND stacks 32 cell layers vertically resulting in higher density and better performance utilizing a smaller footprint.

TurboWrite Technology - Achieve incredible read/write performance to maximize your everyday computing experience with Samsung’s TurboWrite technology. You can obtain up to 2x faster random read write speeds than the award-winning Samsung 840 EVO. The 850 EVO delivers class-leading performance in sequential read (540MB/s) and write (520MB/s) speeds. Plus, gain optimized random performance in all QD for better real-world performance.

RAPID Mode - Samsung’s Magician software enables RAPID Mode for up to 2x faster performance by utilizing unused PC memory (DRAM) as a high-speed cache. The newest version of Samsung Magician supports up to a 4 GB cache on a system with 16 GB of DRAM.

Enhanced Endurance and Reliability - The 850 EVO doubles the endurance and reliability compared to the previous generation 840 EVO. With enhanced long-term reliability, the 850 EVO assures long-term dependable performance of up to 30% longer than the previous generation 840 EVO.

  • Innovative 3D V-NAND Technology
  • Incredible Read/Write Performance
  • Enhanced Endurance and Reliability
  • The Most Evolved SSD for Ultra-thin Laptops and PC’s


Compatibility:

This drive is compatible with any server that accepts 1.8"x3.5mm (Ultrathin Caseless) mSATA drives.

SPECIFICATIONS
Model NameMZ-M5E120BW
Memory Size120GB
Product TypemSATA
InterfaceSATA 6Gb/s Interface
Compatible with SATA 3Gb/s & SATA 1.5Gb/s interface
Sequential Read SpeedUp to 540 MB/sec Sequential Read
Sequential Write SpeedUp to 520 MB/sec Sequential Write
Memory Speed
  • Samsung 32 layer 3D V-NAND
  • Samsung 512 MB Low Power DDR3 SDRAM
  • Random Read Speed (4KB, QD32)
  • Up to 97,000 IOPS Random Read
  • Up to 95,000 IOPS Random Read
  • Random Write
  • (4KB, QD32) Up to 88,000 IOPS Random Write
  • (4KB, QD1) Up to 40,000 IOPS Random Write
  • Trim SupportYes
    S.M.A.R.T. SupportYes
    WWN SupportWorld Wide Name Supported
    Device Sleep Mode SupportYes
    ControllerSamsung MGX Controller
    AES EncryptionAES 256 bit Encryption (Class 0)
    TCG/Opal
    IEEE1667 (Encrypted Drive)
    GC (Garbage Collection)Auto Garbage Collection Algorithm
    Power Consumption (W)50 mWatts
    Voltage5V ± 5% Allowable voltage
    Reliability (MTBF)1.5 Million Hous Reliability (MTBF)
    Operating Temperature32°F - 158°F
    Shock1,500G & 0.5ms (Half sine)
    Form FactormSATA
    Dimensions (W x H x D)1.18 x 2 x 0.15
    Weight0.02lb

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 0.5 lb

    Warranty: 5 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    5 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
