SAMSUNG Part #/MPN: MZ-M5E1T0BW
DiscTech Item #: SAM-MZ-M5E1T0BW-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 1TB
Speed: Solid State Memory
Interface Types: SATA 1.8in Mini-SATA / MSATA
Form Factor: 1.8inx3.5mm Ultrathin Caseless
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 520 to 540
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 1GB
SSD Type: TLC
SSD Endurance DWPD: Consumer / Value

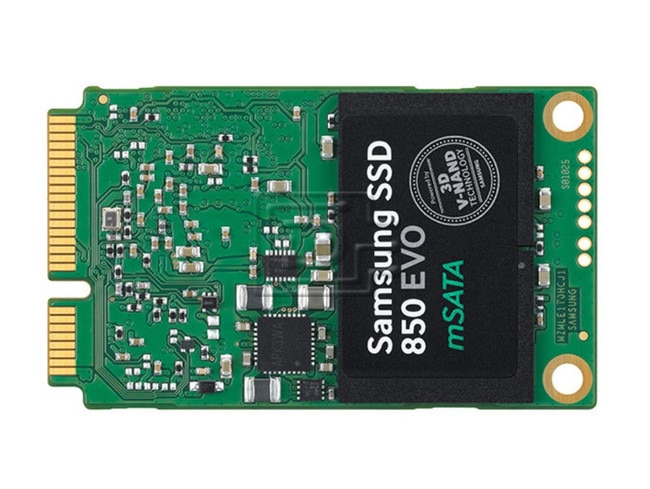

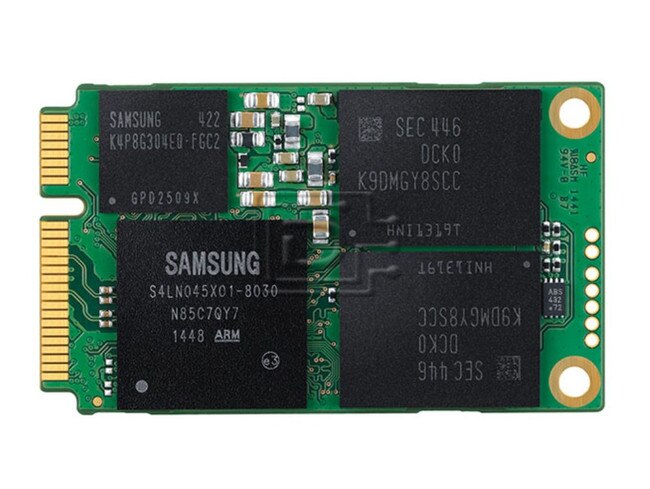

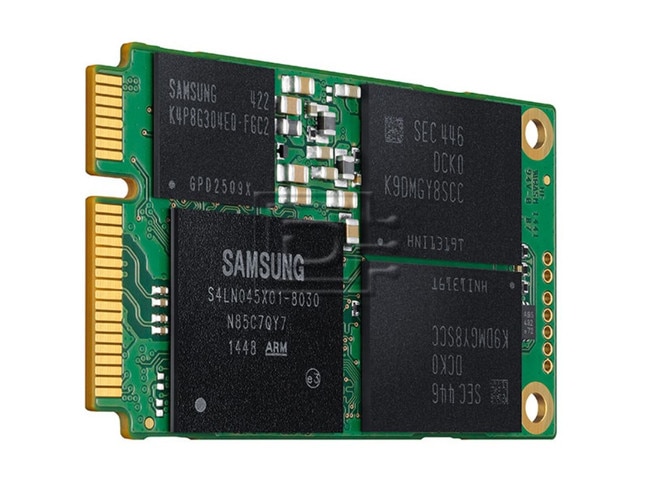

Samsung MZ-M5E1T0BW 1TB 1.8in 6Gbps TLC 3D V-NAND SED 850 EVO mSATA SSD - Brand New
Samsung MZ-M5E1T0BW 1TB 1.8" 6.0 Gbps Triple Level Cell, 3D V-NAND, Self-Encrypting, 850 EVO, Mini Serial ATA Solid State Disk Drive - Brand New
ABOUT THIS PRODUCT
The Samsung SSD 850 EVO. The top SSD for top professionals.
3D V-NAND Technology - Samsung’s innovative 3D V-NAND flash memory architecture breaks through density, performance, and endurance limitations of today’s conventional planar NAND architecture. Samsung 3D V-NAND stacks 32 cell layers vertically resulting in higher density and better performance utilizing a smaller footprint.
TurboWrite Technology - Achieve incredible read/write performance to maximize your everyday computing experience with Samsung’s TurboWrite technology. You can obtain up to 2x faster random read write speeds than the award-winning Samsung 840 EVO. The 850 EVO delivers class-leading performance in sequential read (540MB/s) and write (520MB/s) speeds. Plus, gain optimized random performance in all QD for better real-world performance.
RAPID Mode - Samsung’s Magician software enables RAPID Mode for up to 2x faster performance by utilizing unused PC memory (DRAM) as a high-speed cache. The newest version of Samsung Magician supports up to a 4 GB cache on a system with 16 GB of DRAM.
Enhanced Endurance and Reliability - The 850 EVO doubles the endurance and reliability compared to the previous generation 840 EVO. With enhanced long-term reliability, the 850 EVO assures long-term dependable performance of up to 30% longer than the previous generation 840 EVO.
- Innovative 3D V-NAND Technology
- Incredible Read/Write Performance
- Enhanced Endurance and Reliability
- The Most Evolved SSD for Ultra-thin Laptops and PC’s
Compatibility:
This drive is compatible with any server that accepts 1.8"x3.5mm (Ultrathin Caseless) mSATA drives.
| SPECIFICATIONS | |
|---|---|
| Model Number | MZ-M5E1T0BW |
| Memory Size | 1TB/1000GB |
| Product Type | mSATA |
| Interface | |
| Sequential Read Speed | Up to 540 MB/sec Sequential Read |
| Sequential Write Speed | Up to 520 MB/sec Sequential Write |
| Memory Speed | |
| Random Read Speed (4KB, QD32) | |
| Random Write | |
| Trim Support | Yes |
| S.M.A.R.T. Support | Yes |
| WWN Support | World Wide Name Supported |
| Device Sleep Mode Support | Yes |
| Controller | Samsung MEX Controller |
| AES Encryption | |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Power Consumption (W) | 50 mWatts |
| Voltage | 5V ± 5% Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hous Reliability (MTBF) |
| Operating Temperature | 32°F - 158°F |
| Shock | 1,500G & 0.5ms (Half sine) |
| Form Factor | mSATA |
| Dimensions (W x H x D) | 1.18 x 2 x 0.15 |
| Weight | 0.02lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
