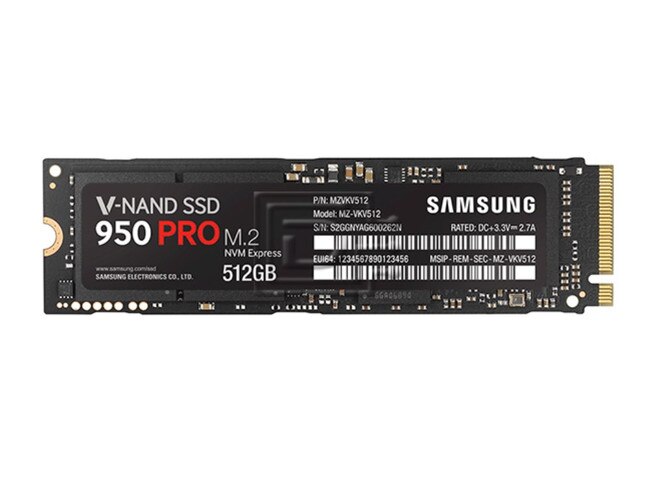

Samsung MZ-V5P512BW 512GB M.2 PCIe Solid State Drive


DiscTech Item #: SAM-MZ-V5P512BW-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 512GB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: M.2 x 80mm

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: Up to 2,500 / Up to 1,500

Electrical Interface: PCIe - v3.0 - 16GBps

On-Board Cache: 512MB


SSD Endurance DWPD: Consumer / Value

Samsung 950 PRO MZ-V5P512BW 512GB M.2 0.4-DWPD NVMe Multi-Level Cell V-NAND Self-Encrypting PCI Express Sold State Disk Drive - Brand New

Samsung SSD 950 PRO M.2


  • PCIe 3.0 x4 NVM Express SSD for Client PCs
  • M.2 (2280)
  • Samsung V-NAND
  • Samsung Magician Software for SSD management

V-NAND Technology and THE SAMSUNG SSD 950 PRO
Samsung’s unique and innovative V-NAND flash memory architecture is a breakthrough in overcoming the density limitations, performance and endurance of today’s conventional planar NAND architecture. VNAND is fabricated by stacking layers vertically over one another rather than decreasing the cells dimensions and trying to fit itself onto a fixed horizontal space resulting in higher density and better performance utilizing a smaller footprint.

This cutting-edge V-NAND-based NVMe SSD supports PCI Express® Gen 3 x4 lanes, providing a higher bandwidth and lower latency to process a massive amount of more data than previous-generation SATA SSDs. Presented in a compact M.2 form factor, the future-oriented 950 PRO is ideal for professionals who want cutting-edge performance from their high-end PCs and workstations.

Experience next-generation ultimate SSD today
The 950 PRO NVMe SSD is the ultimate flash storage solution, designed with tomorrow's technology today. Providing an enhanced bandwidth, it's ideal for intensive workloads, such as computer-aided design, data analysis and engineering simulations. It outperforms SATA SSDs with 4.5X faster sequential read (2,500 MB/s) and 2.5X faster sequential write speeds (1,500 MB/s). Plus, the 950 PRO boasts random read/write speeds of up to whopping 300K/110K IOPS.

Maximize endurance reliability under heavy workloads

Maximize endurance under heavy workloads
The innovative V-NAND technology designed into the 950 PRO strengthens the endurance of the SSD through insulators that cause less stress and are more resistant to wear, prolonging the lifespan of the SSD. This state-of-the-art technology has been tested for endurance on client systems under heavy workloads over a 5-year warranty period. These tests ensure that the 950 PRO will maintain a high level of sustained performance for long periods of time under heavy workloads.

Save power while maintaining peak performance
If you're in the midst of performing a complex data analysis or engineering simulation on your laptop, the last thing you want to have happen is your battery runs out. Designed to consume 5.7 W at peak workloads, the 950 PRO secures battery life while maintaining superior performance levels. The Active State Power Management (ASPM) mechanism built into the 950 PRO, which is similar to the device sleep mode in a SATA interface, reduces power consumption. In standby mode, the 950 PRO consumes only 2.5 mW of power, half the power consumption of an SATA (compared to 850 PRO) in Device Sleep Mode.

Dynamic Thermal Throttling Protection
In most cases of data transfers, heavy workloads can induce heat and result in high temperatures. Once temperatures reach a threshold, memory performance may malfunction. As the leader in SSD memory solutions, we equipped the 950 PRO with Dynamic Thermal Throttling Protection technology to automatically monitor and maintain optimal operating temperature to reduce the risks of overheating.


This drive is compatible with any server that accepts M.2 x 80mm PCIe drives.

Samsung SSD 950 PRO M.2
Model NumbersMZ-V5P512BW
Usage ApplicationClient PC's
Dimensions (LxWxH)Max 80.15 x Max 22.15 x Max.2.38 (mm)
InterfacePCIe 3.0 x4 (up to 32Gb/s) NVMe 1.1
Form FactorM.2(2280)
ControllerSamsung UBX controller
NAND Flash MemorySamsung V-NAND
DRAM Cache Memory512MB LPDDR3
Sequential ReadUp to 2,500 MB/s
Sequential WriteUp to 1,500 MB/s
4KB Random Read (QD32 Thread 4)Up to 300K IOPS
4KB Random Write(QD32 Thread 4)Up to 110K IOPS
4KB Random Read(QD1 Thread 1)Up to 12K IOPS
4KB Random Write(QD1 Thread 1)Up to 43K IOPS
Data SecurityAES 256-bit for User Data Encryption TCG Opal Family Spec and eDrive(IEEE1667) to be supported by FW update
WeightMax. 10g
ReliabilityMTBF : 1.5 million hours
Power Consumption
  • Active Average/Maximum: 5.7W/7.0W
  • Idle: 70mW
  • DEVSLP(L1.2 mode): 2.5mW
  • Supporting features
  • TRIM(Required OS support)
  • Garbage Collection
  • S.M.A.R.T
  • TemperatureOperating Temp : 0°C to 70°C (Measured by SMART Temperature. Proper airflow recommended)
    Humidity5% to 95%, non-condensing
    VibrationNon-Operating: 20~2000Hz, 20G
    ShockNon-Operating: 1500G , duration 0.5m sec, 3 axis
    TBW 400TB
    Box Contents
  • Samsung SSD 950 PRO 512GB
  • Warranty statement

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 0.5 lb

    Warranty: 5 Year Manufacturer

    Brand New
