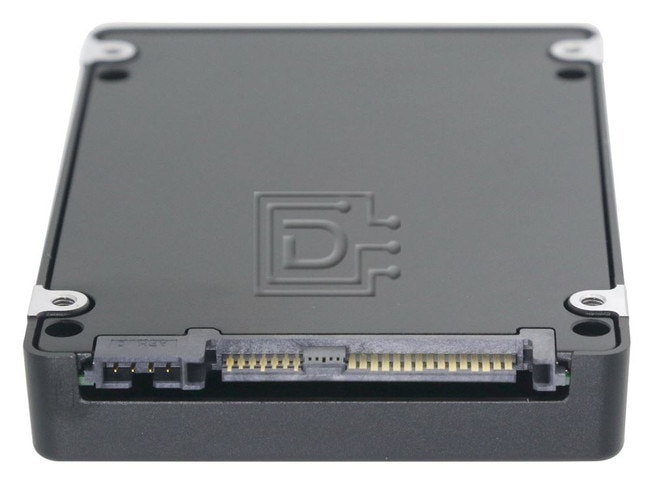

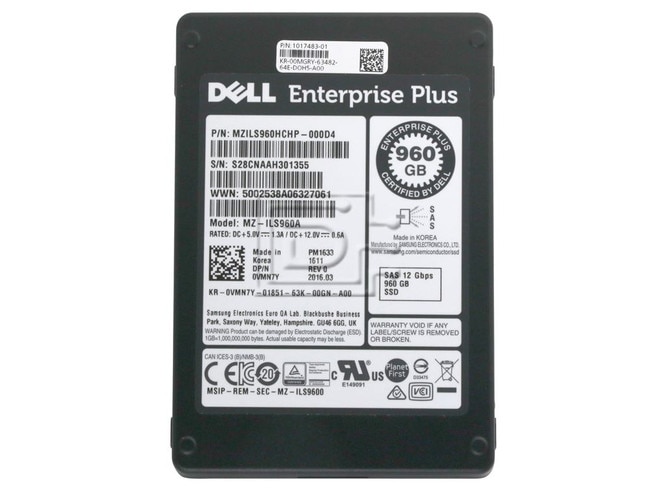

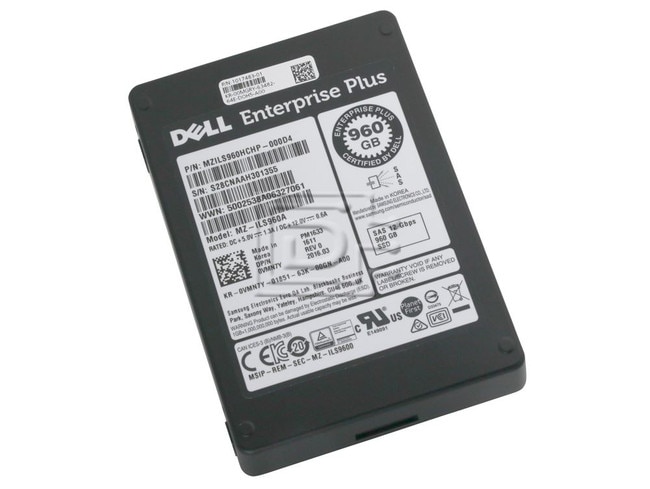

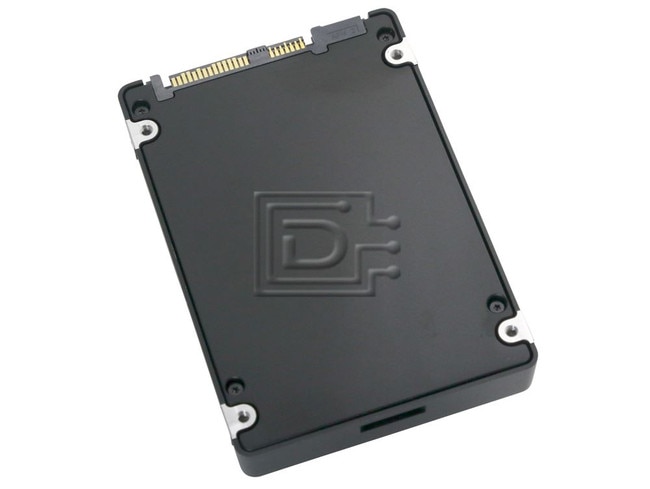

Samsung PM1633a Series MZILS960HCHP / MZILS960HCHP-000D4 960GB SSD


DiscTech Item #: SAM-MZILS960HCHP-000D4-NP-OE-DEP


Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Dell Enterprise Plus VMN7Y / Samsung PM1633a Series MZILS960HCHP / MZILS960HCHP-000D4 960GB 12Gbps 2.5in SFF Enterprise SAS SSD - New Pull OEM


For Compellent Arrays.

PM1633a 2.5” SAS SSD
Samsung PM1633a solid-state drive offers up to 1,000 times the performance of 15K RPM hard disk drives at a comparable cost per gigabyte.

Samsung PM1633a SAS SSD delivers:

  • Consistently High Performance – Up to 1,000 times the performance of the fastest 15K RPM hard drives, the Samsung PM1633a SAS SSD provides enterprise IT administrators performance to spare. An optimized Samsung native SAS 3.0 controller supplies the drive with 12 Gb/s of bandwidth and provides enterprises the performance margin to prevent costly and disruptive application support tickets.

  • Exceptional Value – The same low cost per gigabyte as slower SAS HDDs. By utilizing Samsung state-of-the-art 3D V-NAND flash memory, cost effective TLC flash memory can address high-end enterprise applications, outperforming older planar MLC flash memory, and providing solid state performance and reliability at hard drive cost. With no moving parts, the PM1633a SAS SSD delivers over 10 times the reliability of spinning disks, reducing the administrative cost overhead associated with drive replacement.

  • Breakthrough Storage Density – Capacities up to 16TB in a 2.5” small form factor (SFF) drive. With 60% higher capacity per drive, and a smaller 2.5” form factor, up to 384TB can be stored in a 2U server. This breakthrough in storage density more than triples the density available with high capacity HDDs, using an industry standard form factor, and without sacrificing enterprise reliability, availability, and serviceability (RAS).
    DP/N: VMN7Y 0VMN7Y


    This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.

    For Compellent arrays.

    Samsung PM1633a SSD Technical Specifications
    Form Factor2.5”
    Host Interface SAS 3.0 @ 12 Gb/s
    MTBF2,000,000 hours
    Power Consumption (Active/Idle)11 W / 4.5 W
    Endurance1 DWPD for 5 Years
    UBER1 in 10^17
    Random Read Up to 195,000 IOPS
    Random WriteUp to 31,000 IOPS
    Sequential ReadUp to 1350 MB/s
    Sequential WriteUp to 750 MB/s
    Physical Dimensions70 x 100 x 15 mm
    Weight140 grams

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: VMN7Y 0VMN7Y MZ-ILS960A

    Weight: 1 lb

    Warranty: 1 Year DiscTech

    New Pull

    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
