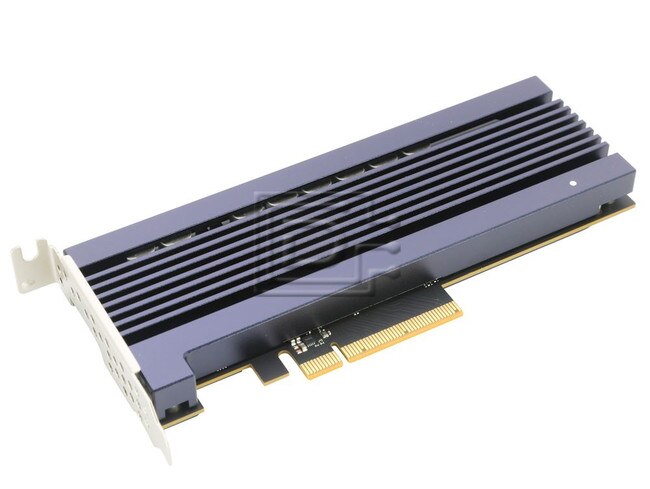

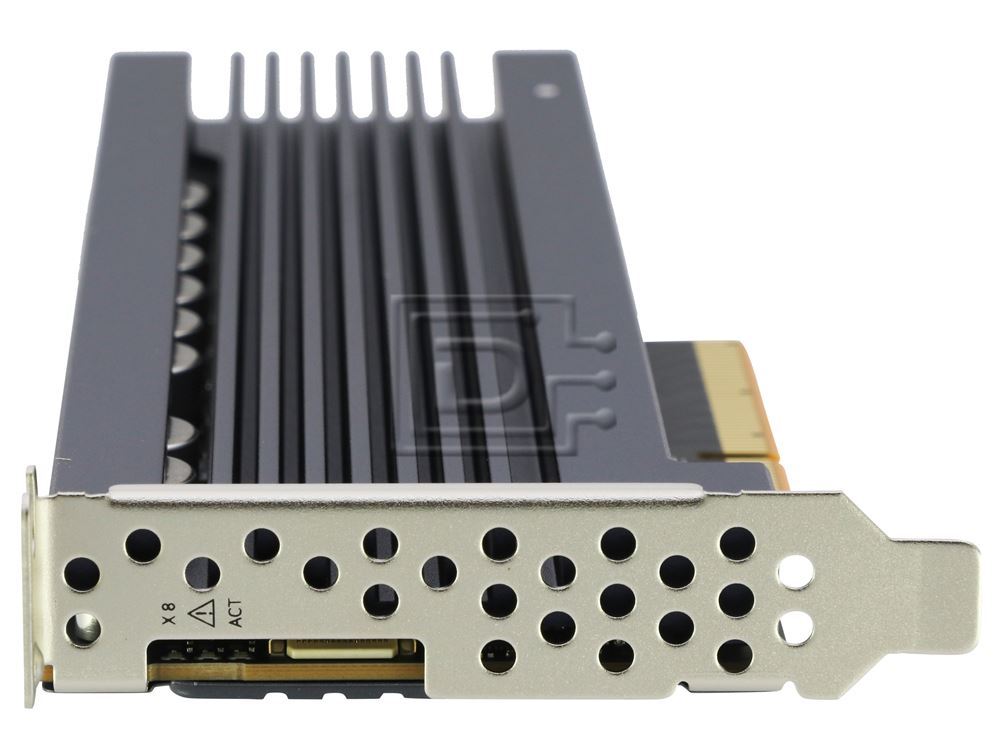

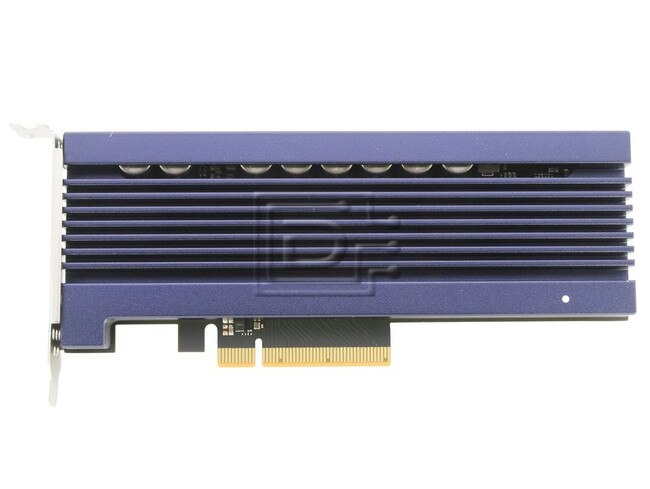

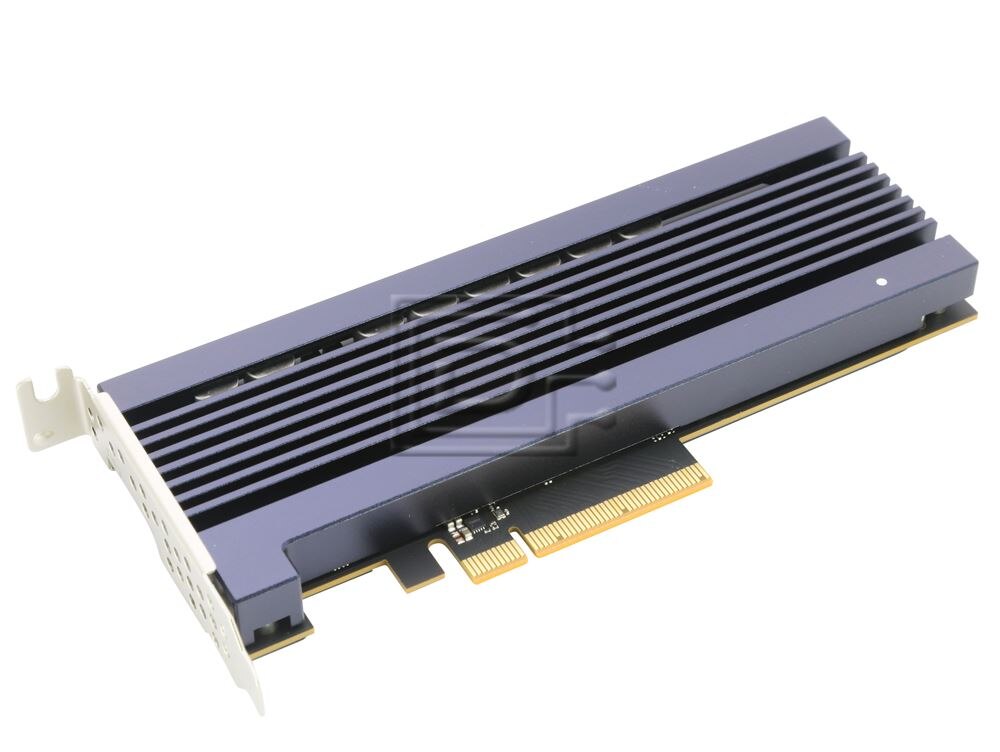

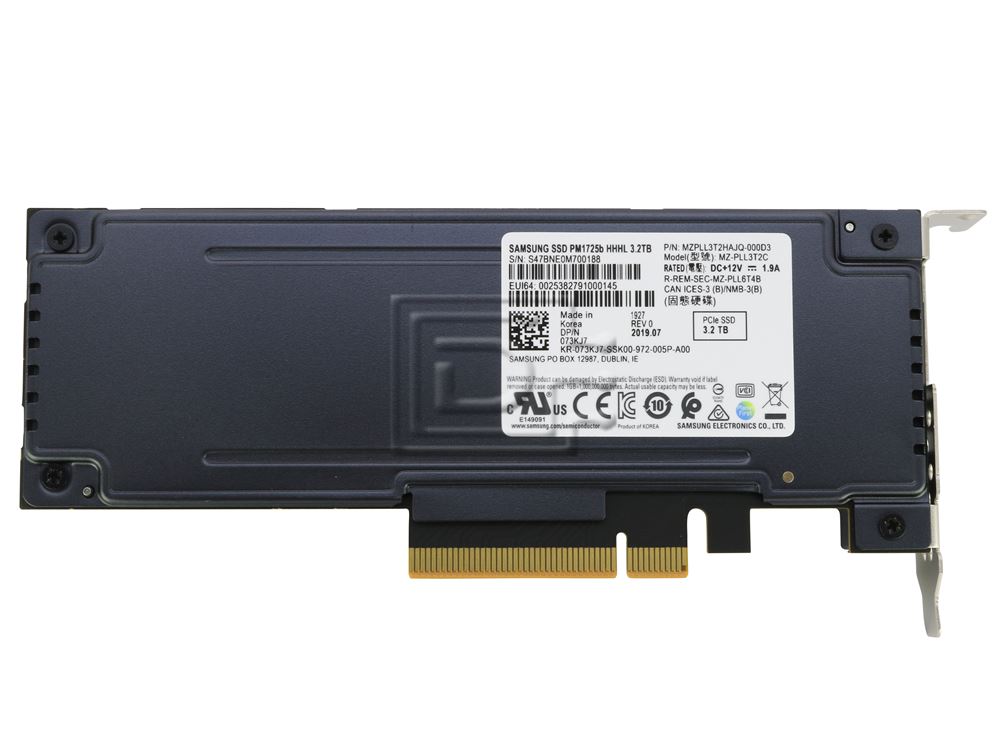

Samsung PM1725B 3.2TB MZ-PLL3T2C / MZPLL3T2HAJQ-00005 / Dell 73KJ7 PCIe NVMe SSD

SAMSUNG Part #/MPN: MZPLL3T2HAJQ-00005

DiscTech Item #: SAM-MZPLL3T2HAJQ-BN-OE-DEG


$399.00
$399.00

Enterprise Grade

Capacity: 3.2TB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Half-Height/Half-Length

Encryption/SED Supported

Sector Size: 512 / 512e

Electrical Interface: PCIe - v3.0 - 16GBps

SSD Endurance DWPD: Enterprise Mixed Use

Samsung PM1725B / MZ-PLL3T2C / MZPLL3T2HAJQ-00005 / MZPLL3T2HAJQ-000D3 / Dell 73KJ7 3.2TB PCIe (HHHL) 3.0 X 8 NVME Enterprise SSD - Brand New Samsung PM1725B / MZ-PLL3T2C / MZPLL3T2HAJQ / MZPLL3T2HAJQ-00005 / MZPLL3T2HAJQ-000D3 / Dell 73KJ7 3.2TB /3200GB PCIe (HHHL) 3.0 X 8 NVME Enterprise Solid State Drive - Brand New

Alt PN: 73KJ7 , 073KJ7 , MZ-PLL3T2C, MZPLL3T2HAJQ


Extreme performance from an SSD technology leader

Maximize data transfer with the high-performance, reliable PM1725b
Enterprise environments have unique requirements to ensure that they operate optimally 24/7, 365 days a year. A varied level of performance with low latency is essential. It is also critical that these environments remain stable when processing various read and write workloads. And the most crucial criteria of all are protection from data corruption or loss due to unexpected power outages. Considering each of these factors, IT and data center managers are tasked with finding high performing, dependable memory solutions. Samsung is well-equipped to offer superb enterprise environment SSDs. The drives deliver exceptional performance in multithread applications, such as compute and virtualization, relational databases, and storage. These high performing SSDs also provide outstanding reliability for continual operation regardless of unanticipated power loss. Their reliability also extends to non-interrupt service in case a failure occurs on one of the paths to a port. Using its proven expertise and wealth of experience in cutting-edge SSD technology, Samsung memory solutions helps data centers operate continually at the highest performance levels. Samsung has the added advantage of being the sole manufacturer of all of its SSD components. This advantage helps ensure end-to-end integration, quality assurance and the utmost compatibility.

Samsung PM1725b NVMe SSD delivers:
  • Exceptional value: The PM1725b utilizes Samsung V-NAND flash memory, which features a unique design that stacks 48 layers on top of another. It also employs cost-effective TLC (triple-level cell) flash memory, which delivers higher reliability than MLC (multi-level cell) planar NAND flash memory SSDs. With this architecture, the PM1725b can deliver enterprise-level performance economically.
  • Consistently high performance: The PM1725b HHHL (half-height, half-length) card delivers a wide bandwidth of up to 6,200/2,600 MB/s sequential R/W speeds respectively, using under 23 W of power. It delivers up to 1,000K and 180K IOPS for random 4KB read and write, respectively. The PM1725b 2.5-inch SSD delivers a bandwidth of up to 3,300/3,000 MB/s for sequential R/W and up to 800K/160K IOPS for random 4KB R/W, respectively. The PM1725a delivers QoS (quality of service, 99%) of 160μs and 100μs for random 4KB writes. Outstanding reliability: Even though the PM1725b employs a TLC V-NAND flash memory, it boasts 5 DWPD (drive writes per day) for 5 years. This rate translates to writing a total of 32 TB each day during that time, which means users can write 6,400 files of 5 GB-equivalent data every day. This level of reliability is more than sufficient for enterprise storage systems that have to perform ultrafast transmissions of large amounts of data.
  • High density: By fitting more memory into a V-NAND chip, it provides significantly more capacities of up to 6.4 TB in both the PM1725b 2.5-inch and HHHL card SSDs. Depending on your storage requirements and applications, 800 GB, 1.6TB, 3.2 TB and 6.4 TB capacities are available.
Optimized for enterprise environments
The Samsung PM1725b SSD is optimized to excel in virtually any data center scenario. This enterprise-level, ultra-high performance SSD provides unsurpassed random read performance and is particularly suitable for read-intensive data center applications. When compared with other standardized Samsung SSDs, the PM1725b SSD provides the highest random read IOPS performance. The PM1725b is equipped with Samsung 3rd-generation TLC V-NAND technology. This technology eliminates performance and reliability issues that result from capacity limitations found in planar NAND technologies. The Samsung V-NAND technology delivers reliable and consistent performance at lower costs for today's demanding data-centric world.

Compatibility:

This drive is compatible with computers, servers and arrays that accept HHHL PCIe NVMe drives

Samsung® SSD PM1725B Series
Model Number MZPLL3T2HAJQ-00005
Essentials
Product CollectionSamsung® SSD PM1725B Series
Capacity3.2TB / 3200GB
StatusMass Production
Form FactorHHHL
InterfacePCIe Gen3 x 8, NVMe
Use ConditionsServer/Enterprise
PERFORMANCE
Sequential Read6200 MB/s
Sequential Write2900 MB/s
Random Read980K IOPS
Random Write180K IOPS
DWPD3(5yrs)


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 73KJ7 073KJ7 MZ-PLL3T2C MZPLL3T2HAJQ MZPLL3T2HAJQ-000D3

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
