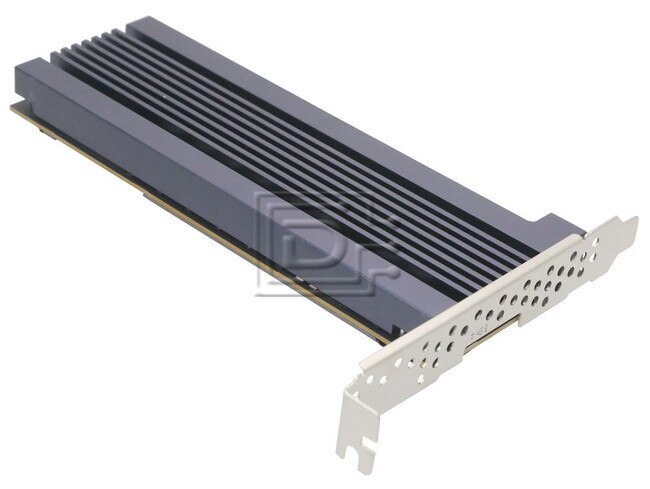

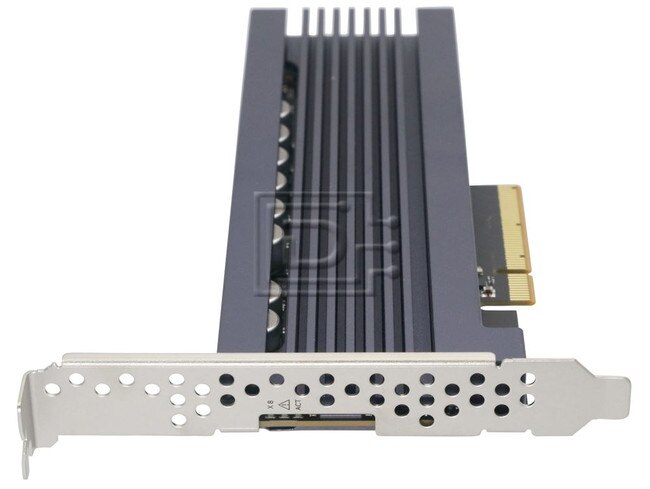

Samsung PM1725B MZ-PLL1T6C / MZPLL1T6HAJQ-00AD3 / Dell FTX2R 1.6TB PCIe (HHHL) 3.0 X 8 NVME MU Enterprise SSD


DiscTech Item #: SAM-MZ-PLL1T6C-C9-OE-DEG

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Half-Height/Half-Length

Sector Size: 512 / 512e

Sustained Throughput: 6300/3300

Electrical Interface: PCIe - v3.0 - 16GBps


SSD Endurance DWPD: Enterprise Mixed Use

Samsung PM1725B MZ-PLL1T6C / MZPLL1T6HAJQ-00AD3 / Dell 0FTX2R / FTX2R 1.6TB PCIe (HHHL) 3.0 X 8 NVME ISE Mixed Use Enterprise Solid State Drive - Certified 95

Samsung PM1725B MZ-PLL1T6C / MZPLL1T6HAJQ / MZPLL1T6HAJQ-00AD3 / Dell 0FTX2R / FTX2R 1.6TB / 1600GB PCIe 3.0 X 8 NVME HHHL / Half Height Half Length ISE / Instant Secure Erase MU / Mixed Use 3 DWPD / Daily Writes Per Day Enterprise SSD / Solid State Drive - Certified 95

Alt PN: 006V6M, MZPLL1T6HEHP-000D3

Extreme performance from an SSD technology leader

Maximize your data transmission with Samsung’s highly reliable, high performance PM1725b SSD:

Enterprise environments have unique requirements to ensure that they operate optimally 24/7, 365 days a year. Varied levels of performance with low latency is essential. It is also critical that these environments remain stable when processing a wide variety of read and write workloads. The most crucial criteria of all is protection from data corruption or loss due to unexpected power outages. Considering each of these factors, IT and data center managers are tasked with finding high performing and dependable memory solutions.

Samsung is offering enterprises superb solid-state drives (SSDs) that deliver outstanding performance in multi-thread applications, such as compute and virtualization, relational databases and storage. These SSDs are also extraordinarily reliable for continuous operation regardless of unanticipated power loss. Using proven expertise and a wealth of experience in cutting-edge SSD technology, Samsung memory solutions help data centers operate continuously at the highest performance levels. Samsung has the added advantage of being the sole manufacturer of all of its SSD components, ensuring end-to-end integration, remarkable quality assurance and the utmost compatibility.

Samsung PM1725b NVMe SSD delivers:

  • Extreme performance: The highest level of random read speed and an ultra-low latency rate using Samsung’s highly innovative 3D vertical-NAND (V-NAND) flash memory and an optimized controller.
  • Outstanding reliability: Features three DWPD (drive writes per day) for five years, which equates to 38.4TBs daily, or 7,680 files of 5GB-equivalent data or video every day.
  • High capacities The 1725b supports a range of capacities, from 1.6TB to an industry leading 15.36TB.

Realize extreme performance with ultra-low latency in read-intensive applications

To satisfy an enterprise environment’s exceptionally high demands, an SSD must perform over long periods of time at maximum performance levels for the variety of workloads accessing the device simultaneously. In addition, the SSD must provide the performance consistency to satisfy grueling Quality of Service (QoS) requirements.

Delivering highly optimized performance for various data center applications

The Samsung PM1725b SSD is optimized to excel in virtually any data center scenario. This enterprise-level, ultra-high performance SSD provides exceptional random read performance and is particularly suitable for read-intensive data center applications.

Physical and Digital Flexibility to fit your needs

The PM1725b is available in both 2.5" U.2 and HHHL AIC form factors. In addition, the PM1725b firmware can be modified by the user to exchange some endurance for additional drive capacity. These features provide you with the flexibility to bring top-tier performance and reliability to a variety of architectures and environments.

The PM1725b is endurance and performance optimized, with 3 DWPD at 1.6TB, 3.2TB, 6.4TB and 12.8TB. However, the drive can also be reconfigured as capacity optimized, changing to 1 DWPD at 1.92TB, 3.84TB, 7.68TB, and 15.36TB. The capacity optimized version is most popular when utilizing dual port functionality in all-flash-array applications.

Delivering Dual-Port NVMe to the Enterprise

PM1725b supports dual-port functionality, enabling highavailability via two access paths to the storage array controller. This feature delivers the reliability, availability and serviceability (RAS) that is required for enterprise storage designs, allowing for SAS SSDs to be replaced by highperformance NVMe SSDs in new all-flash-array architectures.

Enterprise-grade power loss protection

During normal power-off periods, the host server allocates time to preserve data integrity by transmitting a standby command to each device. In the event of an unexpected power loss, though, the cached data in a storage device’s internal buffers (DRAM) can be lost. This can occur with unexpected power outages, or when users unplug devices from the system. However, the Samsung PM1725b SSD has been designed to prevent data loss resulting from unexpected power shutdowns with its power-loss protection architecture. Upon detection of a failure, the SSD immediately uses the stored energy from tantalum capacitors to provide enough time to transfer the cached data in DRAM to the flash memory, ensuring no loss of data.

Comparable/Equivalent to: 06V6M (PM1725A)


This drive is compatible with servers and arrays that accept Half- Heigh Half-Length PCIe NVMe drives

Samsung® SSD PM1725B Series
Model NumberMZ-PLL1T6C
Product CollectionSamsung® SSD PM1725B Series
Physical dimensions69.90 x 167.65 x 18.71 mm
Capacity1.6TB / 1600GB
Launch DateQ2'18
Lithography TypeSamsung TLC 3D V-NAND
Use ConditionsServer/Enterprise
Sequential Read(up to) 6300 MB/s
Sequential Write(up to) 3300 MB/s
Random Read(100% Span) 980000 IOPS
Random Write(100% Span) 190000 IOPS
LatencyRead 120 µs
LatencyWrite 20 µs
Power - Active23W
Power - Idle8W
Vibration - Operating2.17GRMS
Vibration - Non-Operating3.13GRMS
Shock (Operating and Non-Operating1000G
Operating Temperature Range0°C to 55°C
Endurance Rating (Lifetime Writes)3 DWPD for 5 Years
Mean Time Between Failures (MTBF)2 million hours
Uncorrectable Bit Error Rate (UBER)1 sector per 10-17 bits read
Form FactorHHHL
InterfacePCIe 3.0 x 8, NVMe 1.2
Encryption SupportedInstant Secure Erase

Click here to view the manufacturer's item description/brochure

ROHS Compliant


Weight: 1 lb

Warranty: 1 Year DiscTech

Certified 95

Condition Levels Explained

These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
