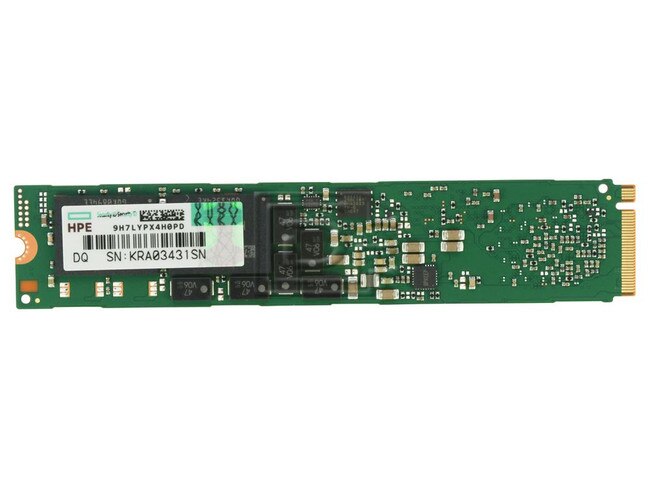

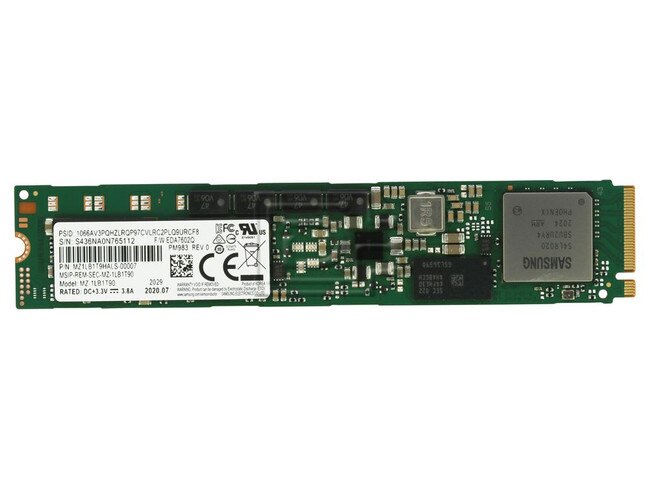

Samsung PM983 MZ-1LB1T9NE 1.92TB M.2 22110 PCIe Solid State Drive


DiscTech Item #: SAM-MZ-1LB1T90-BN-OE-HPI


Enterprise Grade

Capacity: 1.92TB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: M.2 x 110mm

Sector Size: 512 / 512e

Sustained Throughput: 3000/1400

Electrical Interface: PCIe - v3.0 - 16GBps


SSD Endurance DWPD: Enterprise Mixed Use

Samsung PM983 MZ-1LB1T90 / MZ1LB1T9HALS-00007 / HPI P05898-001 1.92TB M.2 22110 MLC PCIe 3x4 NVMe Mixed Use Solid State Drive - Brand New

Samsung PM983 MZ-1LB1T90 / MZ1LB1T9HALS / MZ1LB1T9HALS-00007 / HPI P05898-001 1.92TB / 1920GB M.2 22110 V-NAND 3-bit MLC / Multi-Level Cell 1.3 DWPD / Drive Writes Per Day PCIe / PCI Express 3.0 x4 NVMe / NVM Express 1.2b MU / Mixed Use SSD / Solid State Drive - Brand New

Samsung PM983 delivers:
• Unmatched Flexibility

Three separate form factors enable you to find the product that best fits your density and performance needs.
• High-Performance

Four times the performance of SATA SSDs, using Samsung 3D V-NAND and an optimized Samsung NVMe controller with a native PCIe Gen 3.0 x4 host interface supplies 32 Gb/s of bandwidth.
• Exceptional Value

The same low cost per gigabyte as slower SATA SSDs. By providing four times the IOPS per dollar, data center operators can continue to scale workload utilization on their servers, decreasing the cost of computing

Data center architects face challenging requirements when delivering reliable computing and storage resources at the lowest total cost. Data center servers require high levels of I/O performance to keep their CPUs fully utilized, and high system density, to minimize total cost. The storage systems supplying that I/O performance need to deliver consistent performance and latency to all tenant virtual machines 24/7, 365 days a year. Considering each of these factors, IT and data center managers are tasked with finding optimal storage solutions. Samsung provides data centers with solid-state drives (SSDs) that deliver exceptional performance in cloud applications, such as content delivery networks (CDN), infrastructure as a service (IaaS), shared hosting, NoSQL databases, and cloud data storage. Compared to SATA SSDs, these high-performing NVMe SSDs deliver four times the read performance and lower latency, while still maintaining SATA cost and low-power consumption. As a pioneer in NVMe SSDs, Samsung has been delivering the advantages of industry standard NVMe performance longer than anyone else. Samsung also has the advantage of being a vertically integrated supplier of SSDs, providing the highest levels of quality. The Samsung PM983 SSD allows data center architects to deliver the highest storage capacity and performance.


This Drive is designed to work in any Personal Computer, Consumer Application, or Server that uses M.2 x 110mm PCIe drives.

SamsungPM983 NVMe M.2 Enterprise SSD for Business
Model# MZ-1LB1T90
Product Type Solid State Drive (SSD)
Series PM983
Data Center Yes
Interface PCIe Gen 3.0 x 4, NVMe 1.2b
Capacity 1.92TB
Sequential Read Speed

Up to 3,000 MB/s

  • Performance may vary based on system hardware & configuration
Sequential Write Speed

Up to 1,400 MB/s

  • Performance may vary based on system hardware & configuration
Random Read Speed

Up to 480,000 IOPS

  • Performance may vary based on system hardware & configuration
Random Write Speed

Up to 42,000 IOPS

  • Performance may vary based on system hardware & configuration
Controller Samsung Phoenix Controller
NAND Flash Samsung V-NAND 3-bit MLC
Memory Cache Samsung 3GB Low Power DDR4 SDRAM
Trim Support Yes
S.M.A.R.T. Support Yes
GC (Garbage Collection) Auto Garbage Collection Algorithm
WWN Support NGUID Supported
Power Consumption (W)

Activity (Read / Write)

  • 7.6 W / 8.0 W


  • Max. 2.6 W

Actual power consumption may vary depending on system hardware & configuration

Voltage 3.3V ± 5% Allowable voltage
Reliability (MTBF) 2.0 Million Hours Reliability (MTBF)
Operating Temperature 0 - 70 ℃ Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
Form Factor M.2 (22110)
Dimensions (W x H x D) 110.2 x 22.0 x 3.8 (mm)
Weight Max 20.0 g
Software Samsung SSD DC Tool kit
Endurance 1.3 DWPD

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: MZ1LB1T9HALS MZ1LB1T9HALS-00007 P05898-001
