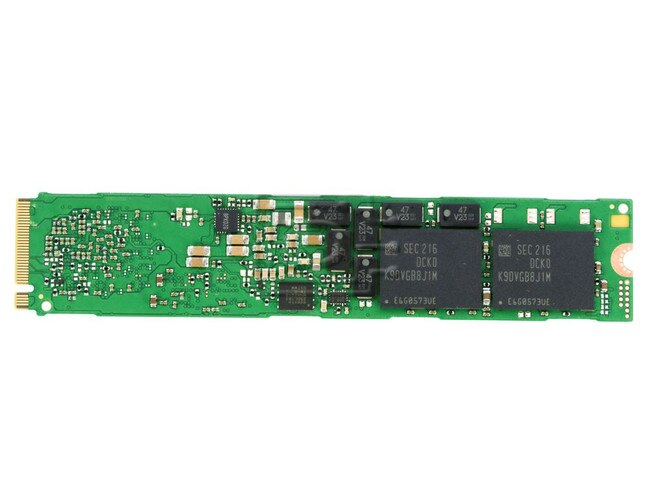

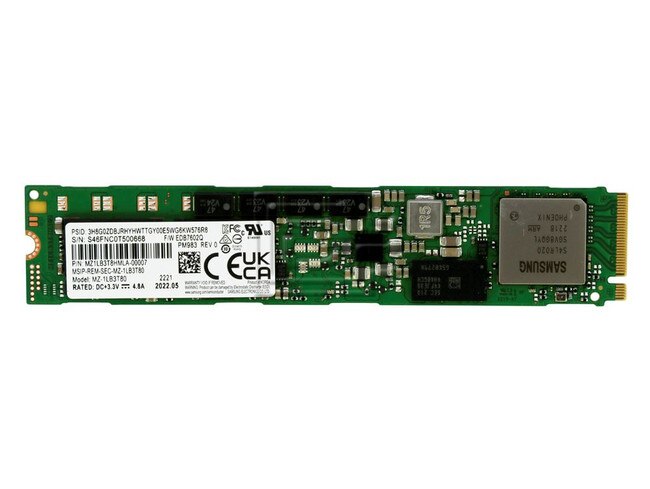

Samsung PM983 MZ-1LB3T80 / MZ1LB3T8HMLA-00007 3.84TB M.2 PCIe NVMe SSD

SAMSUNG Part #/MPN: MZ-1LB3T80

DiscTech Item #: SAM-MZ-1LB3T80-BN-OE


$429.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$429.00

Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: NVMe M.2

Form Factor: M.2 x 110mm

Sector Size: 512 / 512e

Sustained Throughput: 3100/2000

Electrical Interface: PCIe - v3.0 - 16GBps

SSD Endurance DWPD: Enterprise Mixed Use

Samsung PM983 MZ-1LB3T80 / MZ1LB3T8HMLA-00007 / HP P05879-003 3.84TB (4TB) M.2 PCIe 3.0 x4 NVMe 22110 MU Enterprise Solid State Drive - Brand New

Samsung PM983 MZ-1LB3T80 / MZ1LB3T8HMLA-00007 / MZ1LB3T8HMLA / HP P05879-003 3.84TB M.2 22110 Enterirpse MU / Mixed Use 1.3-DWPD / Drive Writes Per Day PCIe / PCI Express 3.0 x4 NVMe / NVM Express 1.2b SSD / Solid State Drive - Brand New

AT A GLANCE

Samsung's PM983 is a high-performance solution for servers that need enhanced data reliability to safeguard critical data, from content delivery networks (CDNs) to big data, artificial intelligence (AI) and Internet of Things (IoT) applications. Available in two form factors, U.2 and M.2., the PM983 NVMe interface empowers blazing-fast speed, high responsiveness and a high Quality of Service (QoS). And with power-loss protection and end-to-end data protection, you get a highly reliable enterprise storage solution up to 1,366 TBW.

  • M.2 form factor and NVMe (Non-Volatile Memory Express) interface deliver blazing fast speed
  • End-to-end data protection to help ensure consistency over the entire data transfer path
  • Power-loss protection helps to prevent data corruption in the case of power failure
  • Designed for optimized performance in server applications thanks to Samsung's proprietary 3-bit MLC V-NAND



Features

  • U.2 Form Factor and Non-Volatile Memory Express (NVMe)
    PM983 960GB NVMe SSDs in the M.2 form factor deliver blazing fast sequential read/write speeds up to 3,000/1,100 MB/s and random read/write speeds up to 400/38K IOPS. They also support PCI Express (PCIe) Gen 3 x 4 lanes to provide high bandwidth and low latency.
  • Advanced ECC Engine and End-to-End Data Protection
    Detect signal discrepancies and proactively remedy them in real time with the Error Correcting Code (ECC) engine. Secure data without performance degradation thanks to AES 256-bit encryption.
  • Power-Loss Protection
    Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture. Using the electricity from a tantalum capacitor to provide enough time to transfer the cached data in the DRAM to the flash memory, you can be assured no loss of data.
  • V-NAND Technology
    Samsung's V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 64 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.
  • Sustained Performance
    Built to handle the heavier workloads of servers, the PM983 delivers an exceptionally high level of sustained performance over the life of the SSD to meet the demands for increased data handling.
  • High Quality of Service (QoS)
    Designed for server applications, the 983 DCT offers a high Quality of Service (QoS) for a consistent, predictable latency and IOPS.
  • S.M.A.R.T.
    Monitor the computer drives proactively to detect and report various reliability indicators with Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T).
  • Dynamic Thermal Guard Protection
    Safeguard the SSD from overheating by automatically controlling the speed of the CPU relative to its core temperature, by throttling back the performance to prevent thermal shutdown.




Compatibility:

This Drive is designed to work in any Personal Computer or Consumer Application that uses M.2 x 110mm PCIe drives.

Samsung PM983 NVMe M.2 Enterprise SSD for Business
Model#MZ-1LB3T80
Product TypeSolid State Drive (SSD)
SeriesPM983
Data CenterYes
InterfacePCIe Gen 3.0 x 4, NVMe 1.2b
Capacity3.84TB
Sequential Read SpeedUp to 3,100 MB/s
  • Performance may vary based on system hardware & configuration
Sequential Write SpeedUp to 2,000 MB/s
  • Performance may vary based on system hardware & configuration
Random Read SpeedUp to 540,000 IOPS
  • Performance may vary based on system hardware & configuration
Random Write SpeedUp to 50,000 IOPS
  • Performance may vary based on system hardware & configuration
Power Consumption (W)Activity (Read / Write)
  • 9.0W / 11.5W
  • Idle
    • Max. 3.6 W
  • Actual power consumption may vary depending on system hardware & configuration
Voltage3.3V ± 10% Allowable voltage
Reliability (MTBF)2.0 Million Hours Reliability (MTBF)
Operating Temperature0 - 70 ℃ Operating Temperature
Endurance1.3 Drive write per day
Form FactorM.2 (22110)
Dimensions (W x L x H)30.50 x 110.00 x 4.38 (mm)
WeightMax 22.0 g

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: MZ1LB3T8HMLA-00007 MZ1LB3T8HMLA P05879-003

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
