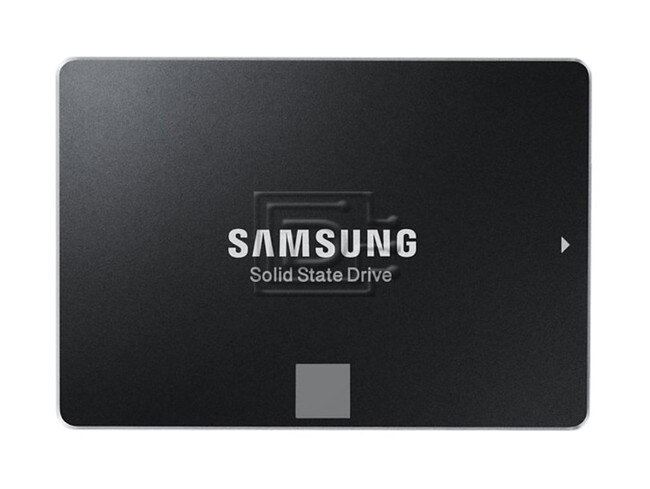

Samsung SM843TN MZ7WD480HCGM 480GB SATA SSD
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 480GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Samsung SM843TN MZ7WD480HCGM 480GB 2.5inx7mm 6.0Gbps MLC Read-Intensive 1.8-DWPD SED SATA SSD - Brand New
Alt MPN: MZ7WD480HCGM-00003
Samsung SM843T/SV843 Raise the Bar on Data Center SSDs
Exceptional Low Latency and a Workhorse of a Drive
Unlike conventional SSDs in their category, which provide very good performance at the onset, as more write operations are made to other SSDs, the latency and QoS typically suffer. On the other hand, Samsung’s SM843T and SV843 SSDs deliver an exceptionally consistent level of performance (99.9% of reads at 170µs) over the life of the SSD at the same price category as other consumer-based MLC-based offerings. The Samsung SM843T and SV843 are optimized for sustained random read and write workloads (89,000 IOPS/14,000 IOPS).
High-Write Endurance
The life of a drive is generally determined by such factors as the type of applications and workloads that are being used. The Samsung SM843T is optimized for random write workloads up to 1.8 full drive writes per day (WPD) and up to 3.6 WPD with the SV843 SSD which represents a 12x improvement over competitive offerings.
Enterprise Power-Loss Protection
Samsung SM843T and SV843 SSDs are built with tantalum capacitors to protect all of your data in write cache in the case of a power failure. This enterprise-grade power-loss protection provides an added level of security to ensure that valuable write information is well protected against data corruption caused by power-loss.
Samsung SM843T and SV843 SSDs are available in several densities, allowing you to maximize your capacity with the same number of drive slots. The drive processes 14,000 IOPS on writes all the way up to 960GB—over 7x the density over a 128GB SSD.
Compatibility
This drive is compatible with servers and laptops that accept 2.5"x7mm SATA drives.
Specifications
| General Features | |
|---|---|
| Form Factor | 2.5” |
| Capacity (GB) | 480 |
| Host Interface | SATA Gen 3.0 – 6Gb/s |
| Physical Dimensions | 100 x 70 x 7mm |
| Weight (up to) | 56g |
| MTBF | 2,000,000 hours |
| Uncorrectable Bit Error Rate (UBER) | 1 in 10^17 |
| Encryption | Class 0 (AES-256) |
| Power Consumption (Active/Idle) | 4.0/1.1 W |
| Sustained Performance (up to) | |
| Read Latency (99.9% QoS) | 170 μs |
| Write Latency (99.9% QoS) | <3 ms (28% O/P: <500 μs) |
| 4K Random Reads | 89,000 IOPS |
| 4K Random Writes | 14,000 IOPS (28% O/P: 35,000 IOPS) |
| 64K Sequential Reads | 530 MB/s |
| 64K Sequential Writes | 360 MB/s |
| Endurance (up to) | |
| 4K Random WPD | 1.8 WPD (28% O/P: 5.4 WPD) |
| 64K Sequential WPD | 11 WPD |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MZ7WD480HCGM-00003
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
