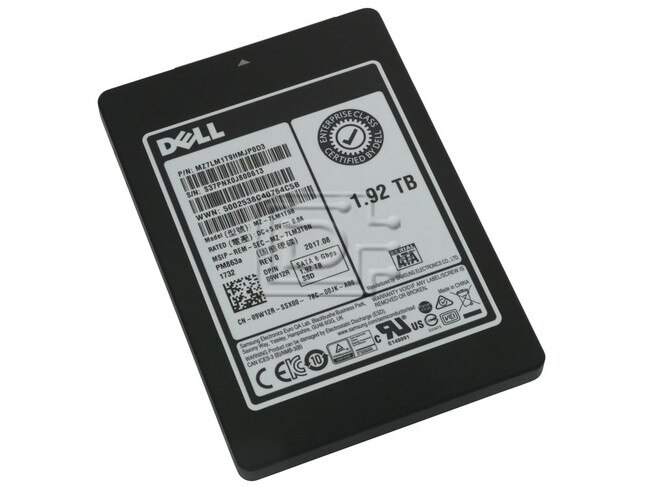

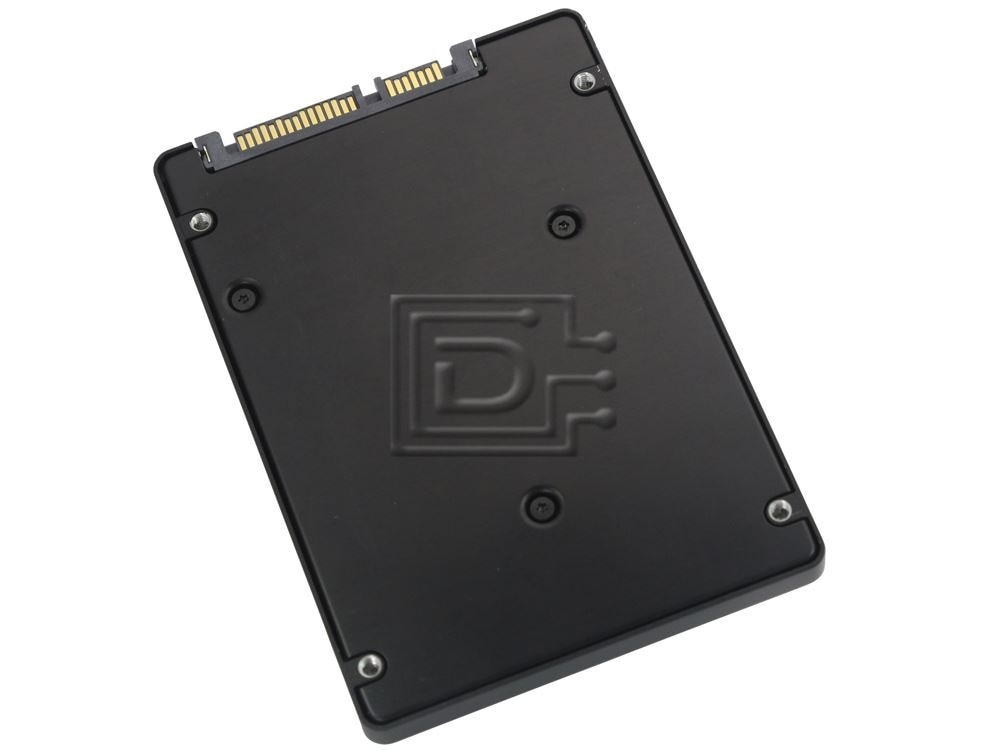

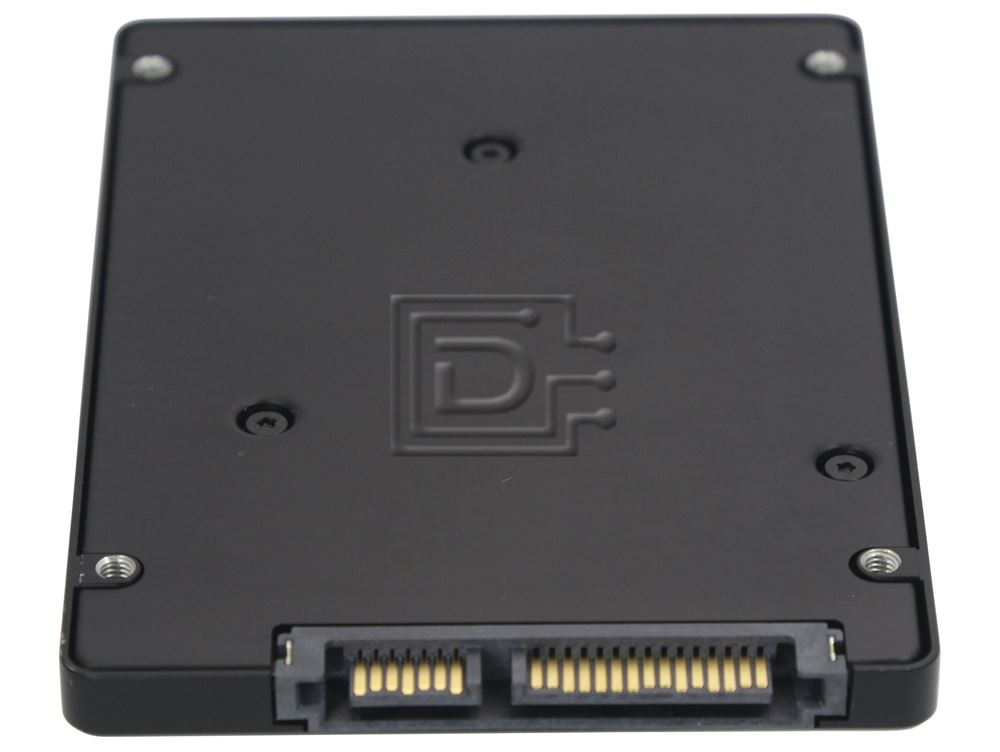

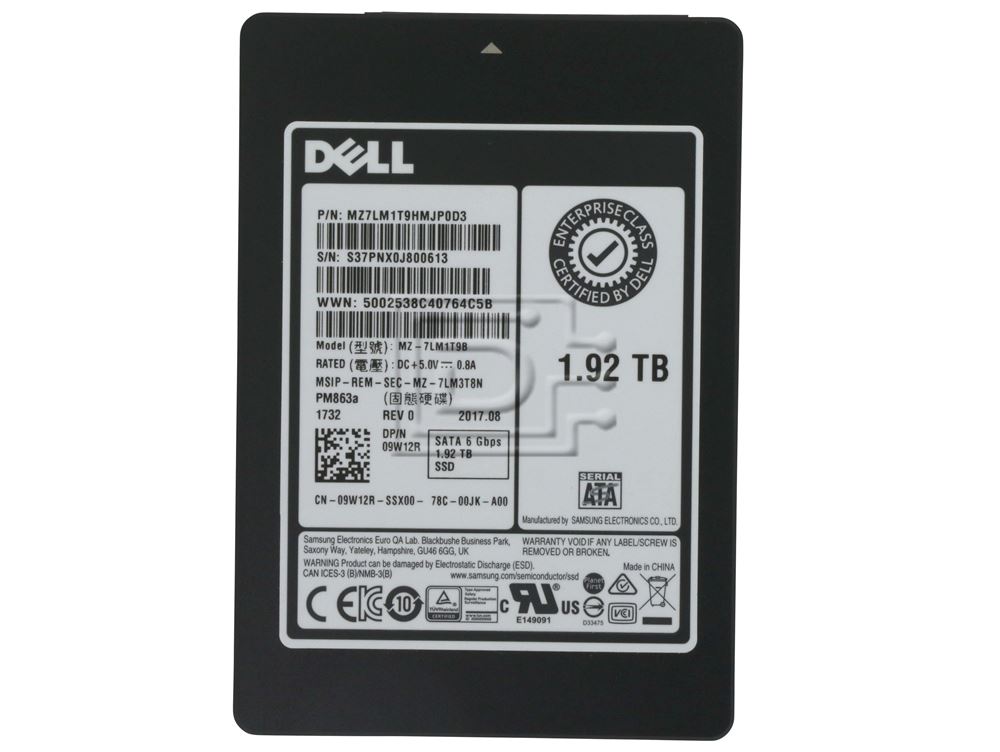

Dell K5P0T / Samsung SM863a MU 512n MZ7KM1T9HMJP0D3 1.92TB 6Gbps 2.5" MLC SATA SSD


DiscTech Item #: SAM-MZ7KM1T9HMJP0D3-BN-OE-DEL

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 1.92TB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 530 / 460

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

Dell K5P0T / Samsung SM863a Mixed Use 512n MZ7KM1T9HMJP0D3 1.92TB 6Gbps 2.5" MLC SATA SSD - Brand New OEM

Dell K5P0T / Samsung SM863a Mixed Use 512n MZ7KM1T9HMJP0D3 1.92TB 6Gbps 2.5" MLC SATA SSD - Brand New OEM

DPN 0K5P0T / K5P0T


This drive is compatible with any server or laptop that accepts 2.5"x7mm SATA drives.

InterfaceSATA 6Gb/s
Sequential Read/Write (MB/s)Up to 530/460 MB/s
Random Read/Write (IOPS)Up to 76K/14K IOPS
15nm MLC User Capacities1.9TB / 1900GB
Data Reliability (BER)1 unrecoverable error in 10e18 read
MTBF2 Million Hours
Data Fall RecoveryFlexible Redundant Array of Independent Memory Elements (FRAME) Technology
Power Fail Recovery/td>Write cache immunity with in-flight data protection
Temperature MonitoringS.M.A.R.T. warning with performance throttling
DWPD (Random/Workload)0.6 DWPD for 5 years
Vcc5.0V +10%/-5%
Active (Typ)
  • 3.8W average sequential write
  • 2.6W average sequential read
  • Idle1.6W RMS
    Shock (operating)1000g @ 1.0 msec, 1 shock along each axis, X, Y, Z, in each direction
    Vibration (operating)3.22 g rms 5-1,000 Hz
    Operating Temperature0° C to 70° C (internal)
    Storage Temperature-40° C to 95° C
    Humidity5% to 95%, non-condensing, relative humidity
    Altitude-1,000 feet to 15,000 feet
    Length100.2 mm
    Width69.85 mm
    Height7.17 mm

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 0K5P0T K5P0T MZ-7KM1T9N

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
