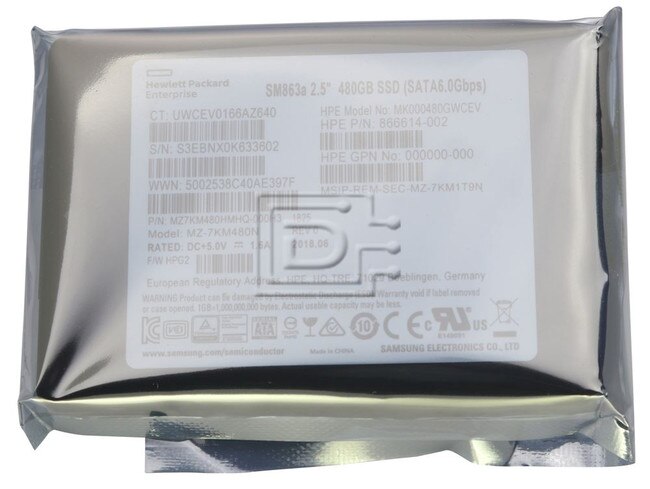

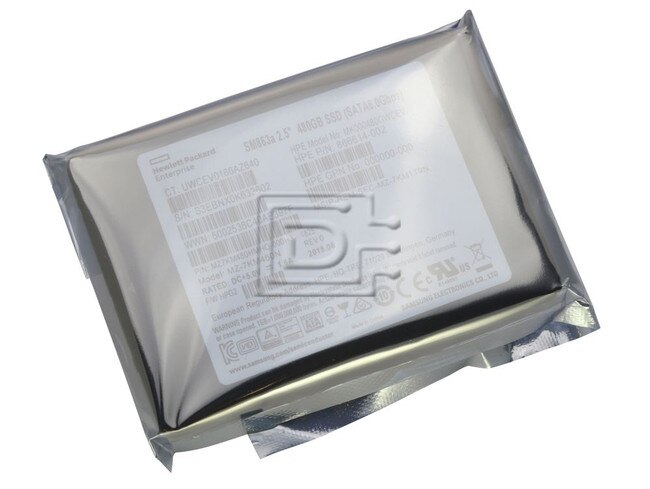

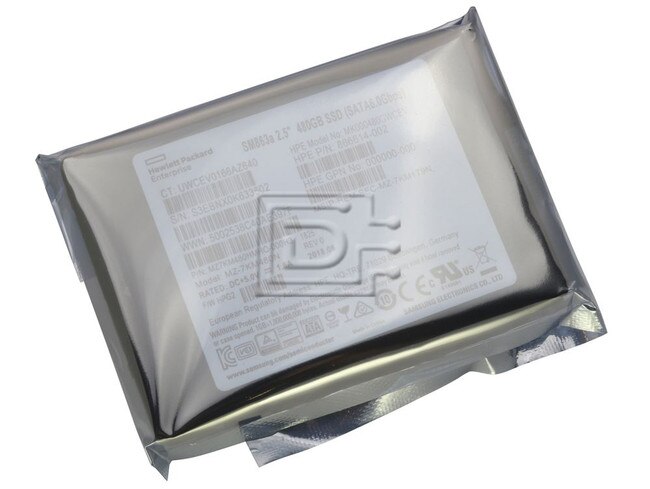

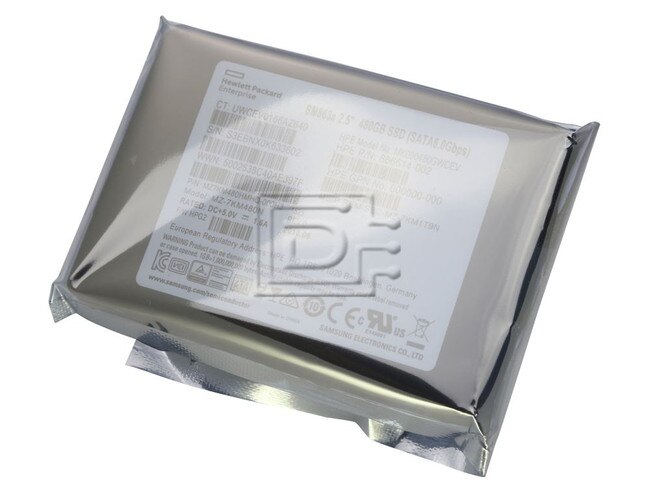

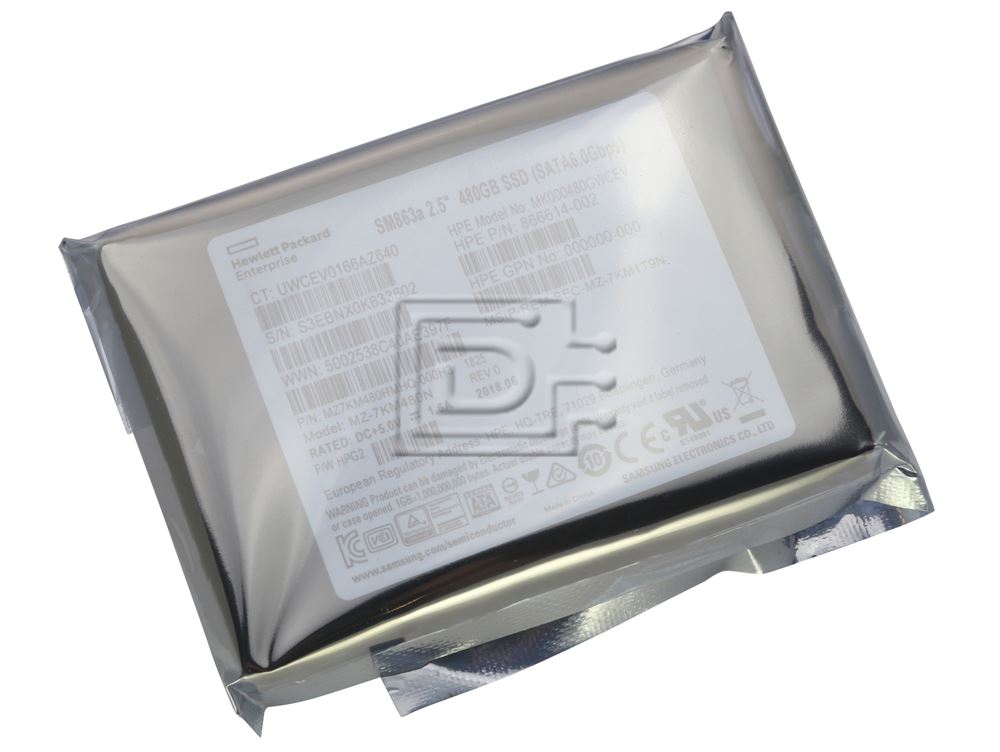

Samsung SM863a MZ7KM480HMHQ-000H3 / MZ-7KM480N 480GB 6Gb/s SATA Mixed Use SSD


DiscTech Item #: SAM-MZ7KM480HMHQ-000H3-BN-OE-HPI


Enterprise Grade

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 520/475

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

Samsung SM863a MZ7KM480HMHQ-000H3 / MZ7KM480HMHQ-00005 / MZ-7KM480N / 866614-002 480GB 6Gb/s SATA Mixed Use SSD - Brand New

Samsung SM863a MZ7KM480HMHQ-000H3 / MZ7KM480HMHQ-00005 / MZ-7KM480N / 866614-002 480GB 6Gb/s SATA Mixed Use SSD - Brand New


With the rise of personal, mobile, social and cloud computing, leading data centers are turning to SSDs to meet big data demands. Samsung’s 3rd-generation V-NAND technology provides high capacities up to 3.84 TB in the same 2.5-inch form factor. Boasting exceptional performance, endurance and power efficiency, the new Samsung SATA 2.5-inch PM863a and SM863a SSDs deliver superb IOPS consistency, latency and QoS (quality of service). These high-performance SSDs provide the essentials for 24/7 data center environments.

PM863a – Robust performance and lower TCO

The PM863a is designed for mixed workload data center applications, such as CDNs (content delivery networks), streaming and web servers. With sequential R/W (read/write) speeds up to 520/480 MB/s and 4 KB random R/W speeds up to 97K/24K IOPS, it delivers robust performance1 under various heavy workloads. Generating a better performance-to-power ratio than HDDs, the PM863a reduces data center operating costs, resulting in lower TCO (total cost of ownership)2 . Furthermore, by using the same 2.5-inch SATA interface, and with capacity options up to 3.84 TB, IT managers can scale up their data centers using existing infrastructure

 SM863a – Enhanced performance and endurance

With a higher level of endurance than the PM863a, the SM863a is the ideal choice for write-intensive applications, such as servers for OLTP (online transaction processing), emails and databases. The SM863a delivers sequential R/W speeds up to 510/485 MB/s and 4 KB random R/W IOPS up to 95K/28K

Enhanced data integrity

Both the PM863a and SM863a demonstrate a low probability of data corruption. End-to-end protection keeps data consistent along the entire data transfer path and Power Loss Protection safeguards data in the write cache in the event of a power failure. The Dynamic Thermal Guard algorithm monitors the temperature of the SSD to help prevent thermal shutdown.

Self-encrypted drives

The PM863a and SM863a protect data with AES 256- bit hardware-based encryption. This encryption engine secures data without the performance degradation often experienced with software-based encryption.

A technology leader in innovation

With innovation as its foundation, Samsung is one of the leading solution providers of world-class technology and scale. Samsung actually designs and integrates a wide array of critical SSD components in house, from the DRAM and NAND to the controller and firmware. Based on its intimate knowledge of every component, Samsung fine-tunes each element, enabling them to work in perfect synergy

Model NumberMZ7KM480HMHQ-000H3

Form Factor2.5 inch
InterfaceSerial ATA 6.0 Gbps
Density 480GB
Voltage+5V ± 5%
Sequntial Read (128KB)510 MB/s
Sequential Write (128KB)485 MB/s
Random Read IOPS (4KB)95 KIOPS
Random Write IOPS (4KB)19 KIOPS

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: MZ-7KM480N 866614-002 MK000480GWCEV

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
