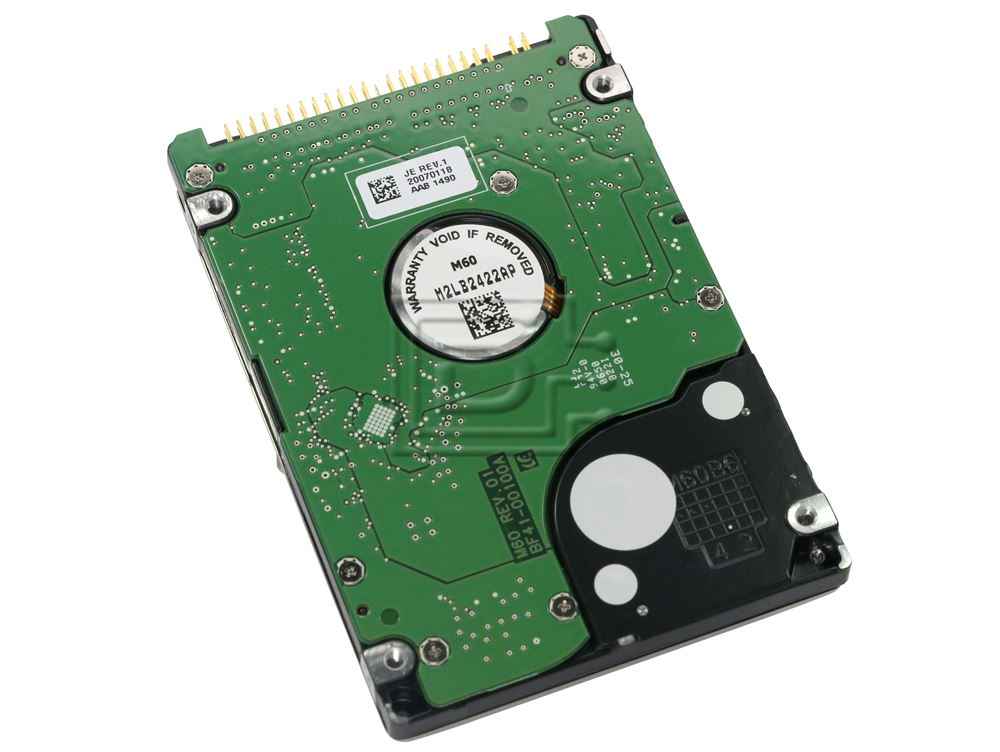

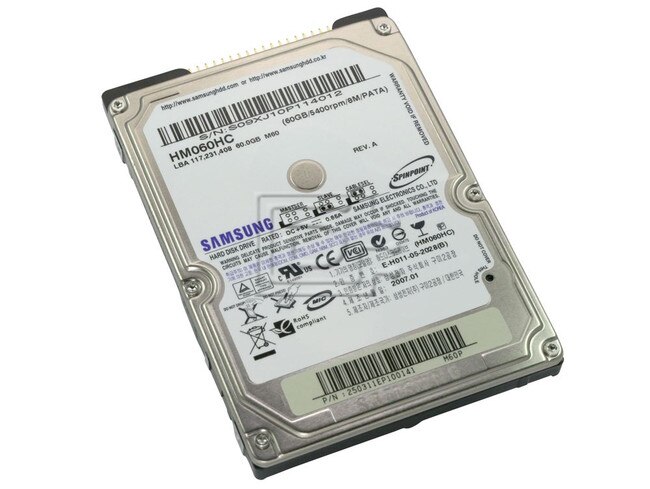

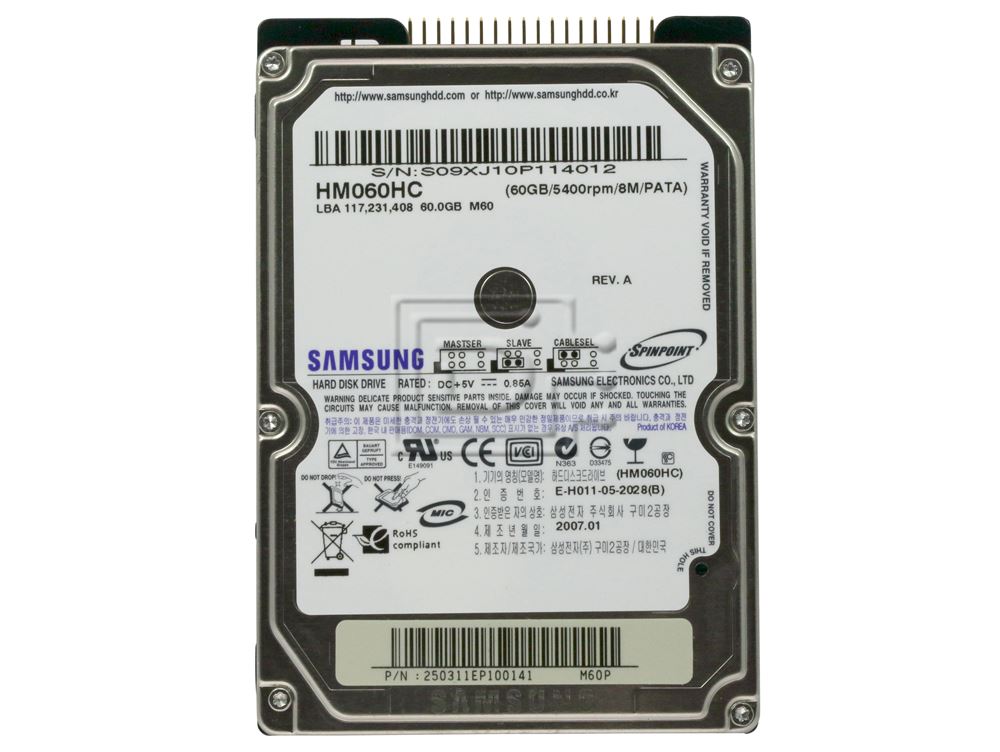

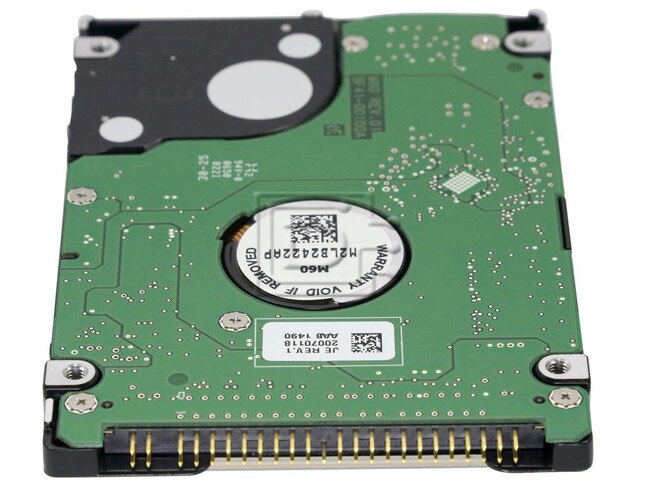

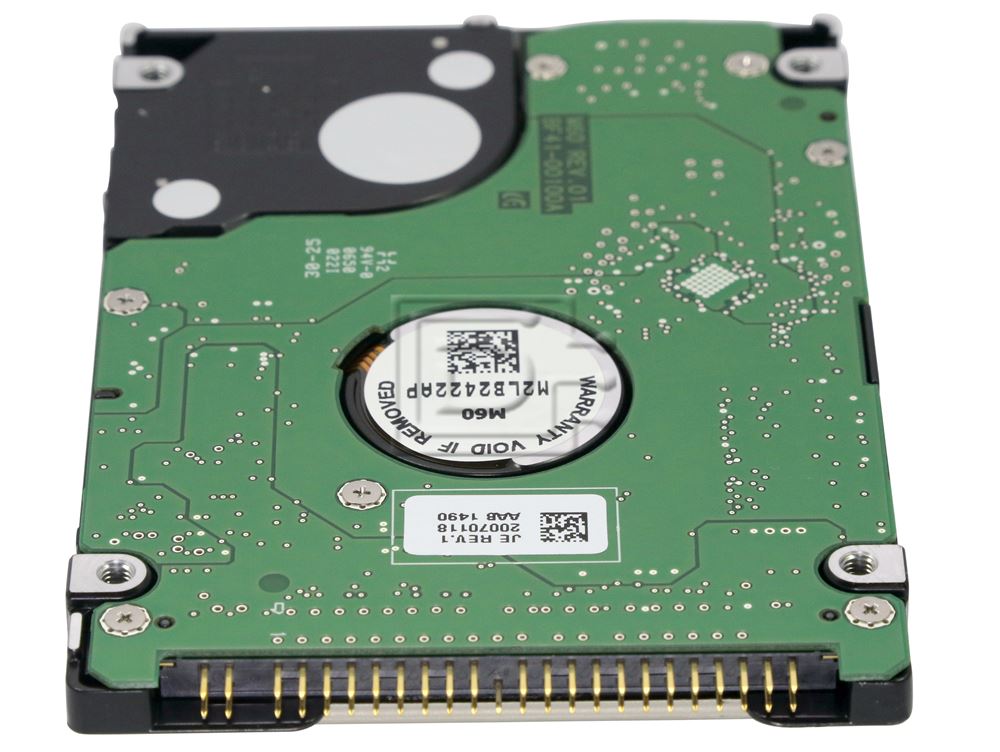

Samsung SpinPoint M60 HM060HC 60GB PATA / IDE ATA-100 Hard Drive


DiscTech Item #: SAM-HM060HC-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 60GB

Speed: 5,400RPM

Interface Types: IDE ATA 2.5in IDC44M for laptop

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 12

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 8MB

Samsung SpinPoint M60 HM060HC 60GB 5.4K 2.5 inch PATA / IDE ATA-100 Hard Drive - Brand New

Samsung SpinPoint M60 HM060HC 60GB 5.4K 2.5 inch PATA / IDE ATA-100 Hard Drive - Brand New

Product Information

Rugged and speedy, this Samsung 60 GB hard drive is a good choice for delivering industrial strength and outstanding specs. This Samsung 60 GB hard drive is the ultimate companion when you want to provide high-performance data storage. Do-it-yourselfers and system builders alike relish the performance and quality of the Samsung SpinPoint M60. This internal 2.5-inch hard drive is wonderfully stable, with rugged construction, so you can enjoy the benefits of long-lived flawless operation without fear of component failures or disk crashes. The generous storage capacity found on the Samsung SpinPoint M60 makes it easy for you to hold onto tons of your precious software utilities, mp3s, and videos with more than enough space leftover. This Samsung 60 GB hard drive is a breeze to install, allowing you to simply hook it up to computers supporting the DMA/ATA-100 (Ultra) interface. Plus, the Samsung SpinPoint M60 has an ultra-fast 5400 RPM speed, so you can copy lots of MP3s, photos, and games without waiting a long time. This internal 2.5-inch hard drive enables you to enjoy super-fast system performance when you're analyzing information, watching videos, or loading software thanks to its 8 MB buffer size.

Performance Specifications
Rotational Speed5,400 RPM (nominal)
Buffer Size8 MB
Average Latency5.50 ms (nominal)
Seek Times
Read Seek Time12.0 ms
Track-To-Track Seek Time2.0 ms (average)
Transfer Rates
Buffer To Host (IDE)100 MB/s
Transfer Rate (Buffer To Disk)6421 Mbits/s (Max)
Physical Specifications
Formatted Capacity
Capacity60 GB
InterfacePATA / IDE 100 MB/s
Physical Dimensions
Height0.374 Inches ±0.008 inch
Length3.94 Inches ±0.010 inch
Width2.75 ±0.010 inch
Weight0.26 Pounds
Height9.5 mm ±0.20 mm
Length100.2 ±0.25 mm
Width69.85 ±0.25 mm
Weight0.117 kg
Environmental Specifications
Idle Mode20 dBA (average)
Seek Mode 021 dBA (average)
Temperature (English)
Operating32° F to 140° F
Non-operating-40° F to 149° F
Temperature (Metric)
Operating0° C to 60° C
Non-operating-40° C to 65° C
Operating8-95% RH non-condensing
Non-operating5-95% RH non-condensing
Altitude (English)
Operating-1,000 feet to 10,000 feet
Non-operating-1,000 feet to 40,000 feet
Altitude (Metric)
Operating-305M to 3,050M
Non-operating-305M to 12,200M
Linear10-500 Hz, 1.0G (0 to peak)
Random10-500 Hz (0.309 g² / Hz)
Electrical Specifications
Current Requirements
Read/Write500 mA
Idle400 mA
Standby45 mA
Sleep38 mA
Power Dissipation
Read/Write2.50 Watts
Idle0.85 Watts
Standby0.23 Watts
Sleep0.19 Watts
