SAMSUNG Part #/MPN: HM160JC
DiscTech Item #: SAM-HM160JC-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 160GB
Speed: 5,400RPM
Interface Types: IDE ATA 2.5in IDC44M for laptop
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 8MB

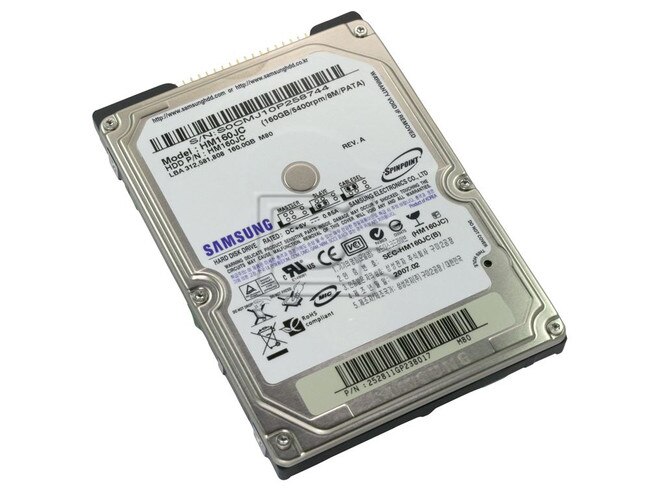

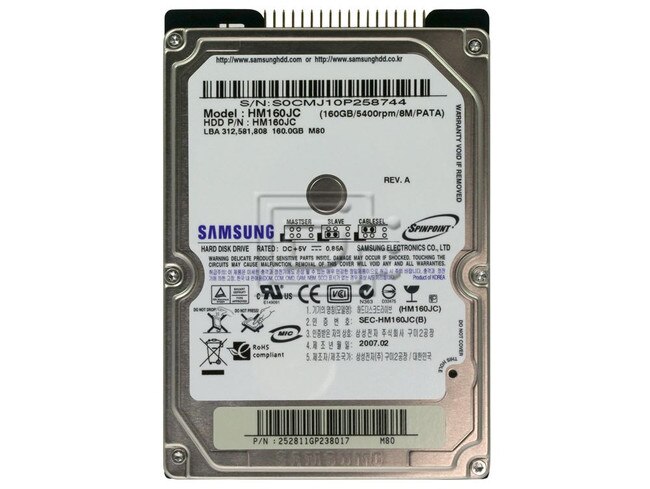

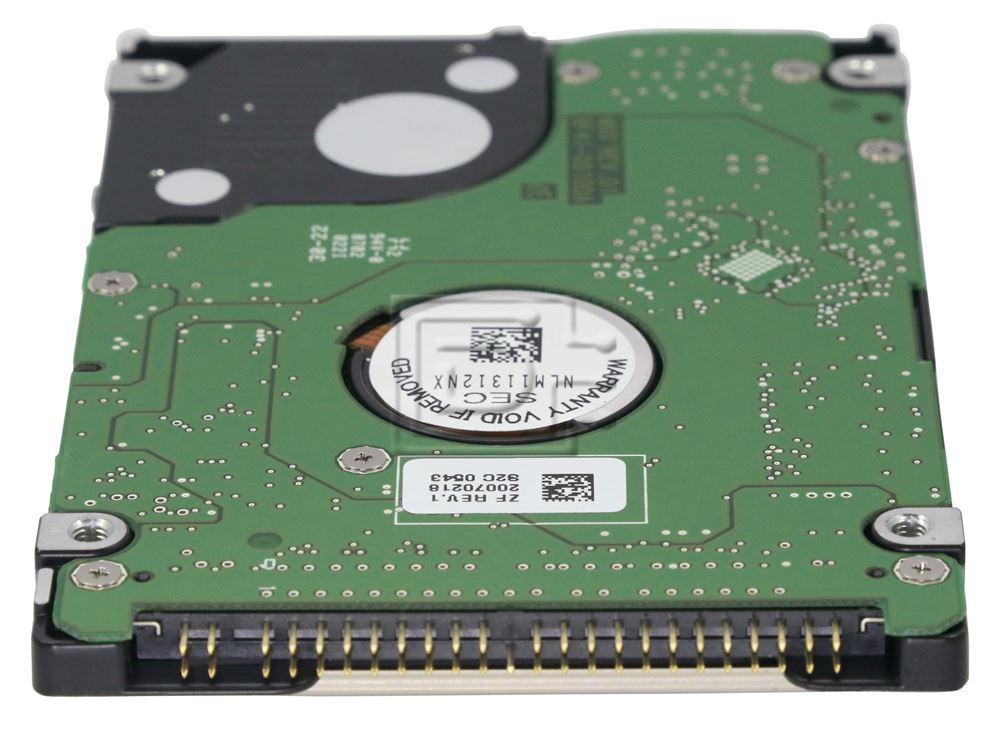

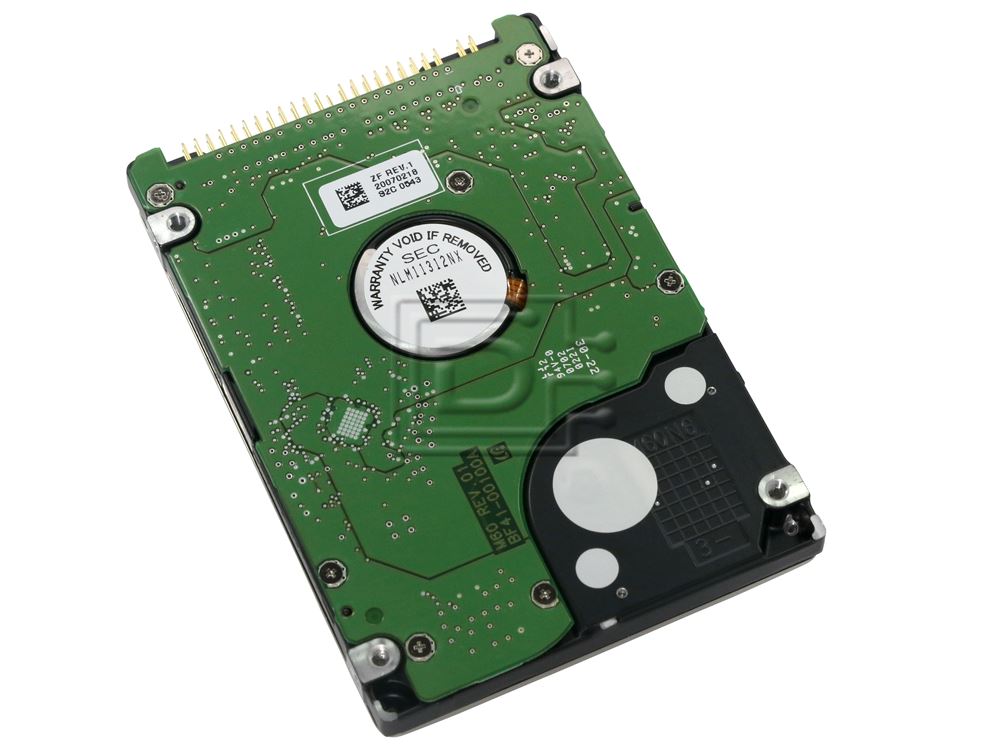

Samsung SpinPoint M80 HM160JC 160GB 5.4K 2.5 inch PATA / IDE ATA-100 Hard Drive - Brand New
Samsung SpinPoint M80 HM160JC 160GB 5.4K 2.5 inch PATA / IDE ATA-100 Hard Drive
Product Information
Rugged and speedy, this Samsung 160 GB hard drive is a good choice for delivering industrial strength and outstanding specs. This Samsung 160 GB hard drive is the ultimate companion when you want to provide high-performance data storage. Do-it-yourselfers and system builders alike relish the performance and quality of the Samsung SpinPoint M80. This internal 2.5-inch hard drive is wonderfully stable, with rugged construction, so you can enjoy the benefits of long-lived flawless operation without fear of component failures or disk crashes. The generous storage capacity found on the Samsung SpinPoint M80 makes it easy for you to hold onto tons of your precious software utilities, mp3s, and videos with more than enough space leftover. This Samsung 160 GB hard drive is a breeze to install, allowing you to simply hook it up to computers supporting the DMA/ATA-100 (Ultra) interface. Plus, the Samsung SpinPoint M80 has an ultra-fast 5400 RPM speed, so you can copy lots of MP3s, photos, and games without waiting a long time. This internal 2.5-inch hard drive enables you to enjoy super-fast system performance when you're analyzing information, watching videos, or loading software thanks to its 8 MB buffer size.
| Performance Specifications | ||
 | Rotational Speed | 5,400 RPM (nominal) |
| Buffer Size | 8 MB |
| Average Latency | 5.50 ms (nominal) |
| Seek Times | ||
| Read Seek Time | 12.0 ms |
| Track-To-Track Seek Time | 2.0 ms (average) |
| Transfer Rates | ||
| Buffer To Host (IDE) | 100 MB/s |
| Transfer Rate (Buffer To Disk) | 6421 Mbits/s (Max) |
| Physical Specifications | ||
| Formatted Capacity | 160,041 MB |
| Capacity | 160 GB |
| Interface | PATA / IDE 100 MB/s |
| Physical Dimensions | ||
| English | ||
| Height | 0.374 Inches ±0.008 inch |
| Length | 3.94 Inches ±0.010 inch |
| Width | 2.75 ±0.010 inch |
| Weight | 0.26 Pounds |
| Metric | ||
| Height | 9.5 mm ±0.20 mm |
| Length | 100.2 ±0.25 mm |
| Width | 69.85 ±0.25 mm |
| Weight | 0.117 kg |
| Environmental Specifications | ||
| Acoustics | ||
| Idle Mode | 20 dBA (average) |
| Seek Mode 0 | 21 dBA (average) |
| Temperature (English) | ||
| Operating | 32° F to 140° F |
| Non-operating | -40° F to 149° F |
| Temperature (Metric) | ||
| Operating | 0° C to 60° C |
| Non-operating | -40° C to 65° C |
| Humidity | ||
| Operating | 8-95% RH non-condensing |
| Non-operating | 5-95% RH non-condensing |
| Altitude (English) | ||
| Operating | -1,000 feet to 10,000 feet |
| Non-operating | -1,000 feet to 40,000 feet |
| Altitude (Metric) | ||
| Operating | -305M to 3,050M |
| Non-operating | -305M to 12,200M |
| Vibration | ||
| Operating | |
| Linear | 10-500 Hz, 1.0G (0 to peak) |
| Random | 10-500 Hz (0.309 g² / Hz) |
| Electrical Specifications | ||
| Current Requirements | ||
| 5 VDC | |
| Read/Write | 500 mA |
| Idle | 400 mA |
| Standby | 45 mA |
| Sleep | 38 mA |
| Power Dissipation | ||
| Read/Write | 2.50 Watts |
| Idle | 0.85 Watts |
| Standby | 0.23 Watts |
| Sleep | 0.19 Watts |
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
