Samsung Spinpoint F1 Series HD161GJ 160GB 7.2K SATA Hard Drive

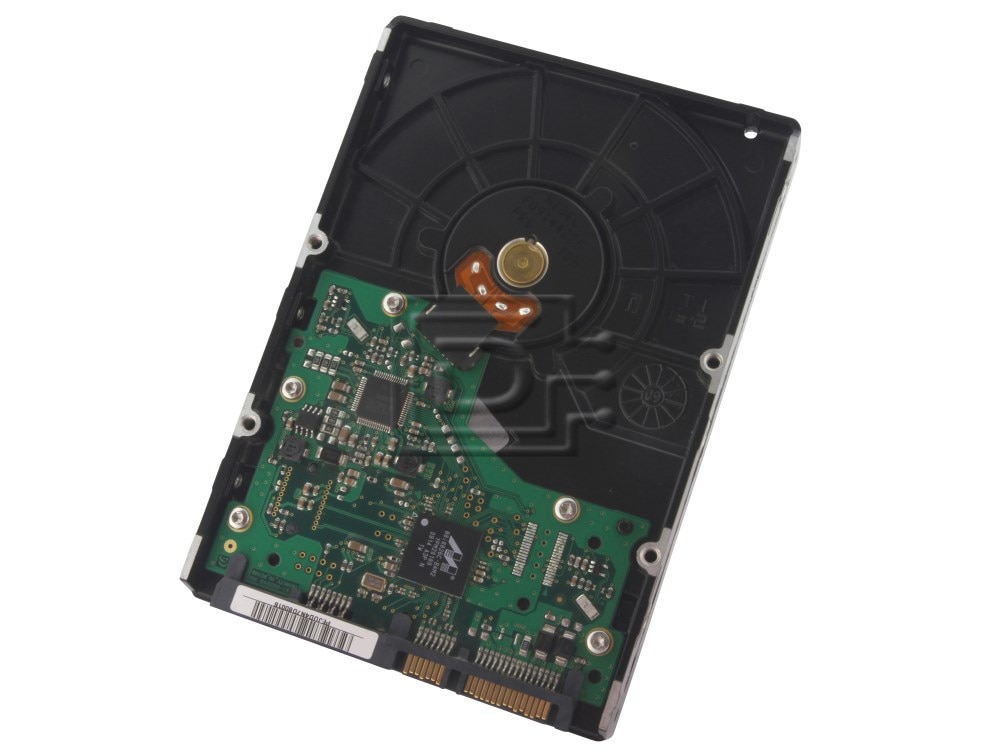

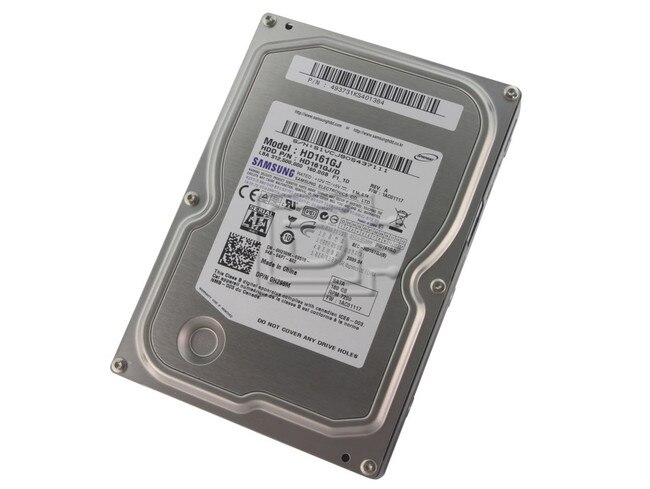

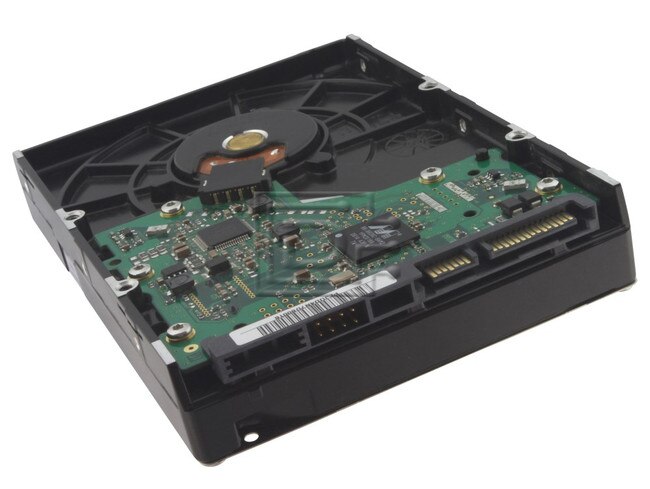

SAMSUNG HD161GJ HD161GJ/D SATA Hard Drive Image 1 imageSAMSUNG HD161GJ HD161GJ/D SATA Hard Drive Image 2 imageSAMSUNG HD161GJ HD161GJ/D SATA Hard Drive Image 3 image
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$59.00

Capacity:160GB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 300 - 3Gbps
RAM:16MB

Description

Samsung SpinPoint F1 Series HD161GJ 160GB 7.2K  SATA 3.5" Hard Drive - New Pull

The Samsung HD161GJ Spinpoint F1 Hard Drive offers 160GB of storage capacity, making it perfect for storing videos, music, photos and much more. With its sleek appearance, excellent high-performance and low level acoustics, the Samsung HD161GJ Spinpoint F1 hard drive is ideal for adding extra storage capacity to your PC or Network Storage device.

Vital Statistics

  • Model Number: HD161GJ
  • Capacity: 160GB
  • Speed: 7200RPM
  • Seek Time: 8.9 ms
  • Cache: 8MB
  • Interface: SATA 3 Gb/s
  • Form Factor: 3.5"

SilentSeek and NoiseGuard
The Samsung HD161GJ Spinpoint F1 Hard Drive includes Samsung's proprietary SilentSeek technology, which, when combined with Samsungs NoiseGuard technology, provides the best low level acoustics and hard drive performance available today - ideal for diverse and demanding hard drive applications.

Key Features

  • Formatted capacity : 160GB
  • Serial ATA 3.0 Gbps Interface Support
  • Improved recording stability over temperature with PMR
  • Advanced dynamic FOD control for best data integrity
  • Intelligent compensation of external disturbance
  • SATA Native Command Queuing Feature
  • Device Initiated SATA Power Management
  • Staggerd Spin-up Support
  • Environment friendly product with RoHS compliance
  • Improved performance with dual-ARM based firmware
  • ATA S.M.A.R.T. Compliant
  • ATA Automatic Acoustic Management Feature
  • ATA 48-bit Address Feature
  • ATA Device Configuration Overlay Feature
  • Rotational vibration sensor
  • NoiseGuard
  • SilentSeek

What the Samsung HD161GJ Spinpoint F1 Hard Drive Holds

  • Up to 32,000 digital photos
  • Up to 40,000 songs (MP3)
  • Up to 3,750 songs (uncompressed CD quality)
  • Up to 12 hours of Digital Video (DV)
  • Up to 60 hours of DVD quality video
  • Up to 19 hours of HD video

Compatibility

This drive is compatible with any of our SATA hot swap trays and controllers.

Specifications

Drive Configurations

  • Capacity
    • 160 GB
  • Interface
    • SATA 3.0Gbps
  • Buffer DRAM Size
    • 8 MB
  • Byte per Sector
    • 512 bytes
  • Rotational Speed
    • 7,200 RPM

Performance Specifications

  • Average Seek time(typical)
    • 8.9 ms
  • Data Transfer Rate / Media to/from Buffer (Max.)
    • 175 MB/sec
  • Data Transfer Rate / Buffer to/from Host (Max.)
    • 300 MB/sec
  • Average Latency
    • 4.17 ms
  • Drive Ready Time(typical)
    • 8 sec

Reliability Specifications

  • Non-recoverable Read Error
    • 1 sector in 10^15 bits

Acoustics

  • Idle
    • 2.45 Bel
  • Performance Seek
    • 2.80 Bel

Environmental Specifications

  • Temperature / Operating
    • 0 ~ 60 °C
  • Temperature / Non-operating
    • -40 ~ 70 °C
  • Humidity (non-condensing) / Operating
    • 5 ~ 90 %
  • Humidity (non-condensing) / Non-operating
    • 5 ~ 95 %
  • Liner Shock (1/2 sine pulse) / Operating
    • 70 G
  • Liner Shock (1/2 sine pulse) / Non-operating
    • 350 G
  • Altitude (relative to sea level) / Operating
    • -300 to 3,000 m
  • Altitude (relative to sea level) / Non-operating
    • -300 to 12,000 m

Power Requirements

  • Voltage
    • +5V±5%, +12V±10%
  • Spin-up Current (Max.)
    • 2.0 A
  • Seek (typical)
    • 5.7W
  • Read/Write (typical)
    • 6.1W
  • Idle (typical)
    • 4.4W
  • Standby (typical)
    • 0.7/1W
  • Sleep (typical)
    • 0.7/1W

Physical Dimension

  • Height (Max.)
    • 26.1 mm
  • Width
    • 101.5 mm
  • Length
    • 147.0 mm
  • Weight (avg.)
    • 470 g
Click here to view the manufacturer's item description/brochure

Alternate MPNs: HD161GJ/D

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

New Pull

Warranty

1 Year DiscTech Warranty
