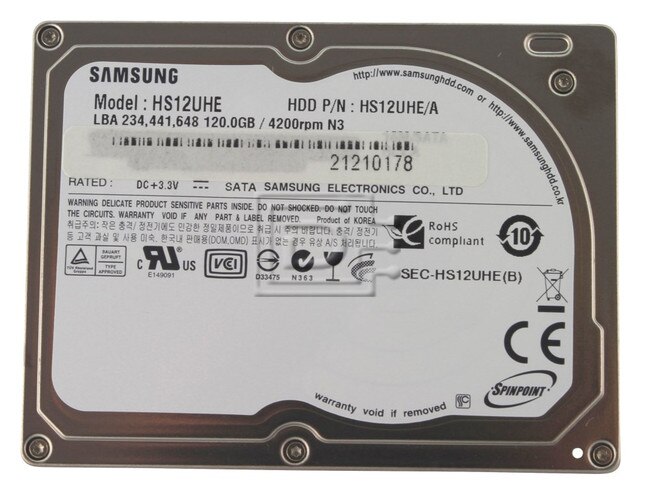

Samsung Spinpoint N3B HS12UHE 1.8" SATA Hard Drive


DiscTech Item #: SAM-HS12UHE-FR-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Capacity: 120GB

Speed: 4,200RPM

Interface Types: SATA

Form Factor: 1.8inx5mm

Sector Size: 512 / 512e

Average Seek Time: 14

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 16MB

Samsung Spinpoint N3B HS12UHE 120GB 4.2K 1.8" LIF Ultra Mobile SATA Hard Drive - Factory Refurbished

The Samsung Spinpoint HS12UHE has a SATA/LIF connector designed for ultra mobile applications.

  • Formatted capacity : 120GB
  • High Speed Digital Signal Processor Based Architecture
  • Low Power HDC
  • Advanced Power Management Control
  • Fluid Dynamic Bearing Spindle Motor Technology
  • SATA S.M.A.R.T Compliant
  • SATA 48-bit Address Feature Set
  • Multi-Burst On-The-Fly Error Correction
  • SilentSeek™
  • Free Fall Sensor (optional)


This drive is compatible with the Macbook Air RevB and some camcorders, MP3 players, navigations, PMP(Personal Media Player), UM PC

Drive Configurations
Capacity * 120 GB
Interface SATA 1
Buffer DRAM Size 16 MB
Byte per Sector 1K
Rotational Speed 4200 RPM class


Performance Specifications
Average Seek time(typical) 14.0 ms
Average Latency 8.3 ms
Drive Ready Time(typical) 600 Mb/s


Reliability Specifications
Non-recoverable Read Error 1 sector in 10^13 bits


Idle 2.2 Bel
Performance Seek 2.4 Bel


Environmental Specifications
Temperature / Operating 0 ~ 60 ℃
Temperature / Non-operating -40 ~ 85 ℃
Humidity(non-condensing) / Operating 8 ~ 90 %
Humidity(non-condensing) / Non-operating 8 ~ 90 %
Liner Shock(1/2 sine pulse) / Operating 600 G
Liner Shock(1/2 sine pulse) / Non-operating 1500 G
Vibration / Operating 0.67 Grms
Altitude(relative to sea level) / Operating -300 to 3.000 m
Altitude(relative to sea level) / Non-operating -400 to 15,000 m


Power Requirements
Voltage +3.3V ±5%
Spin-up Current (Max.) 540 mA
Seek (typical) 1.30 W
Read/Write (typical) 1.50 W
Idle (typical) 0.40 W
Standby (typical) 0.12 W
Sleep (typical) 0.10 W


Physical Dimension
Height (Max.) 5.0 mm
Width 71.0 mm
Length 54.0 mm
Weight (avg.) 48 g

Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
