SANDISK Part #/MPN: LB406M
DiscTech Item #: SAN-LB406M-RF-OE-DEP
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 400GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 530
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

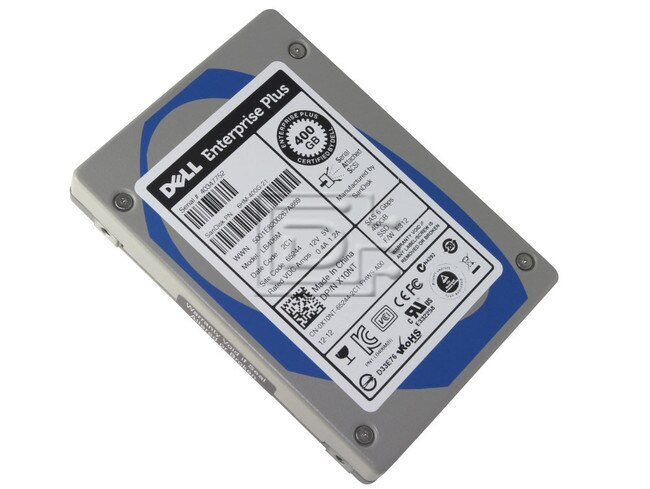

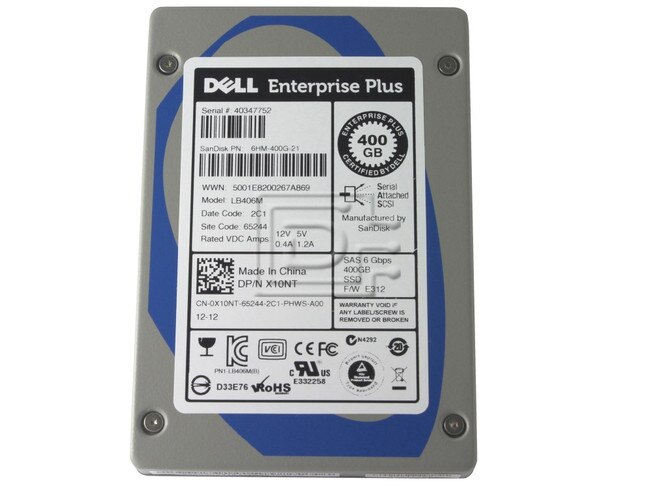

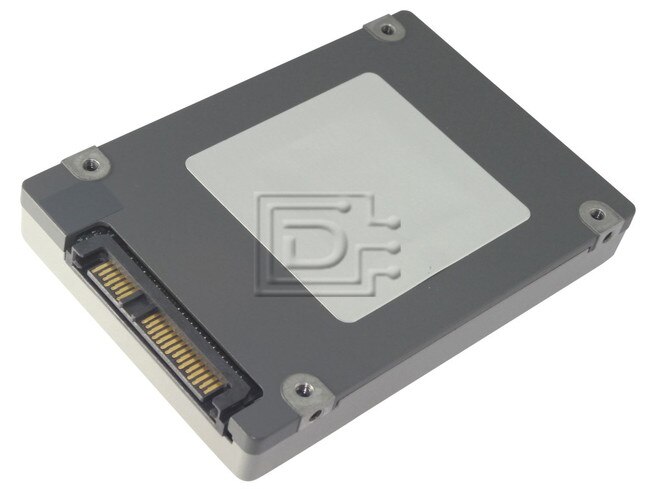

SanDisk LB406M 400GB MLC SFF 2.5inch Serial Attached SCSI / SAS Dell Enterprise Plus Solid State Drive SSDR - Refurbished OEM
Alt. MPN: 6HM-400G-21
Dell Enterprise Plus PNs: X10NT 0X10NT
Lightning Read-Intensive SAS SSDs Accelerate Performance and Enhance Reliability
The ability to quickly access data is critical to nearly every enterprise organization. Lightning® Read-Intensive 6Gb/s SAS Enterprise Solid State Drives (SSDs) greatly reduce latency compared to traditional hard-disk drives (HDDs). Optimized for environments with a high proportion of data reads compared to writes (90 percent read/10 percent write), Lightning Read-Intensive SAS drives can be used to serve data in a broad range of applications and services, such as media and entertainment, cloud services, and web servers.
I/O optimization for read-intensive workloads reduces bandwidth usage, alleviating network bottlenecks and enabling organizations to maximize the utility of existing infrastructure. Lightning Read-Intensive SSDs feature an advanced controller based on a highly efficient parallel-processing architecture, so your data center or business will get the speed it needs.
- up to 410 MB/s** data throughput
- up to 87,000 total IOPS (read)
- 400GB** to 1.6TB capacities
- Two million hours MTBF**
- Qualify once and deploy throughout your system
Compatibility:
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
| Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Interface | Capacity | 200GB | 400GB | 800GB | 2000GB | ||
| Type | SAS | ||||||
| Transfer Rate | 6Gb/s | ||||||
| Availability | Dual-port | ||||||
| Performance | Sustained Read Throughput | Up to: | 530MB/s1 | 530MB/s | 530MB/s | 530MB/s | |
| Sustained Write Throughput | Up to: | 380MB/s | 380MB/s | 453MB/s | 295MB/s | ||
| Max 100% Read IOPS | Up to: | 120,000 | 120,000 | 118,000 | 113,000 | ||
| Max 100% Write IOPS | Up to: | 110,000 | 110,000 | 63,000 | 103,000 | ||
| Max 100% Random Read IOPS | (4K) | 84,000 | 84,000 | 85,000 | 65,000 | ||
| Max 100% Random Write IOPS | (4K) | 28,500 | 34,000 | 17,500 | 6,000 | ||
| Physical | Form Factor | 2.5-inch | |||||
| Dimensions (mm) | 100.2mm(L) x 69.8mm(W) x 15.0mm(H) | ||||||
| Weight | <0.4kg | ||||||
| Endurance | Drive Writes Per Day for 5 Years | 15x | 15x | 10x* | 10x* | ||
| (100% Random 4KB/8KB write workload)†† | |||||||
| Environmental | Operational Temperature | 0° to 60°C (Commercial) | |||||
1The drive saturates the I/O bus
†† (DWPD at aligned block size in product specifications)
*Unlimited version available **1TB = 1000GB
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: X10NT 0X10NT 6HM-400G-21
Weight: 1 lb
Warranty: 1 Year DiscTech
