SANDISK Part #/MPN: SDLTMCKW-800G-5C20
DiscTech Item #: SAN-SDLTMCKW-800G-5C20-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: Up to 980/740
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: SLC
SSD Endurance DWPD: Enterprise Write Intensive

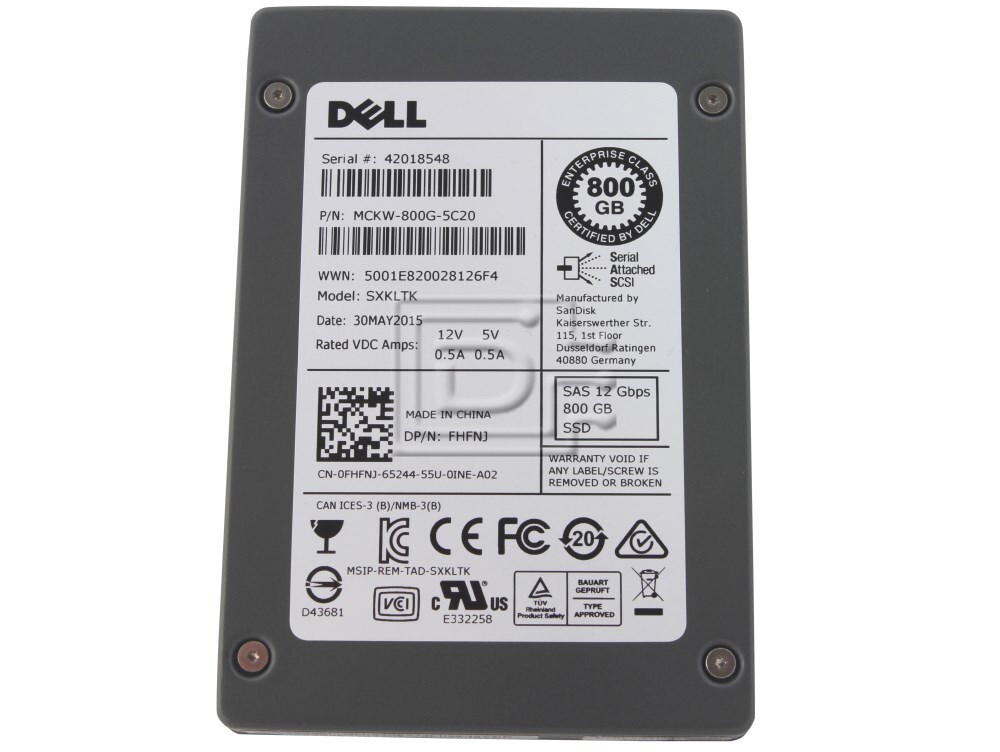

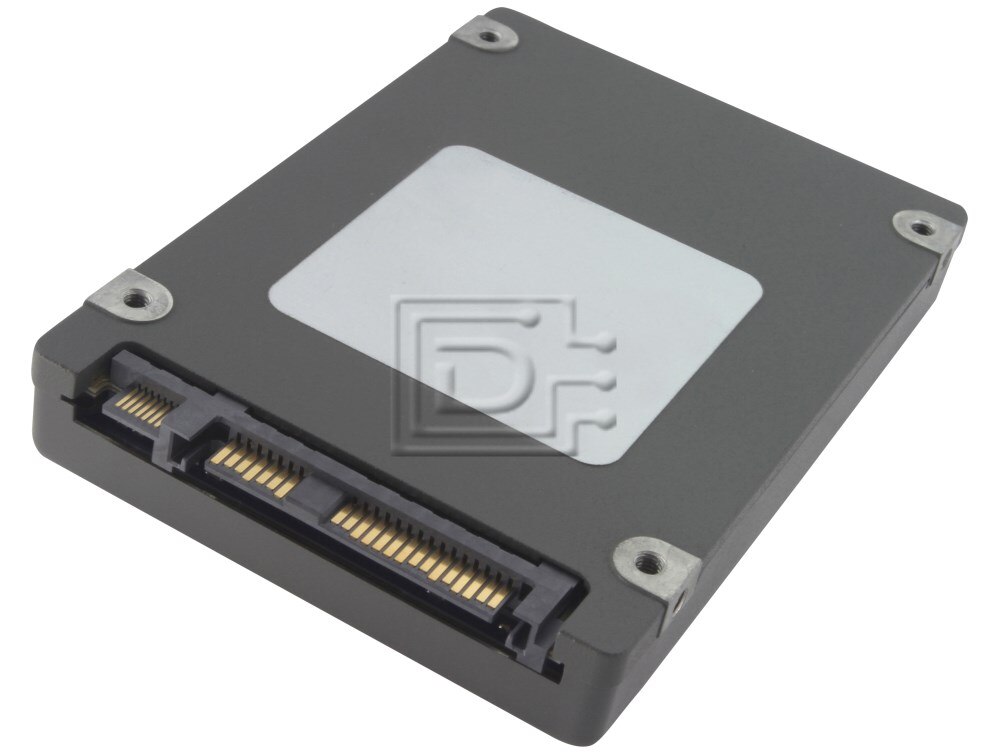

SanDisk Lightning Ultra SDLTMCKW-800G-5C20 800GB 2.5" 12Gbps High Endurance / Write-Intensive / 25-DWPD SLC Enterprise SAS SSD - Brand New OEM
SanDisk Lightning Ultra SDLTMCKW-800G-5C20 800GB 2.5in 12.0Gbps High Endurance / Write-Intensive / 25-DWPD SLC Enterprise SAS SSD - Brand New OEM
Alt Part Numbers: FHFNJ, 0FHFNJ
The new Lightning® Gen. II product family of 12Gb/s SAS SSDs doubles interface speed providing the highest performance for mission-critical hyperscale, cloud and virtualized data center application workloads. This next generation of Lightning SSDs offer capacities ranging from 200GB – 1.6TB with random read/write performance up to 190K/100K and sequential read/write speeds of up to 1000/600 MB/s. These SSDs utilize the latest 19nm SLC and eMLC NAND flash technology combined with an innovative parallel processing architecture to deliver industry-leading, predictable performance, superior reliability and maximum value.
Lightning Ultra™ Gen. II SAS SSDs
Lightning Ultra™ Gen. II SAS SSDs offer industry-leading predictable performance with high availability for the analysis of large data sets. Available in 19nm SLC capacities from 200GB – 800GB and with random read/write performance of up to 190K/100K IOPS and sequential read/write speed of up to 1000/600 MB/s. These SSDs are designed for write-intensive applications such as High Performance Computing (HPC), Big Data Analytics, Data Warehousing, Database Logging, Media Editing, and Indexing with a heavy workload comprised of a 50/50 read/write mix. This SSD offers 25 full drive writes per day (DWPD) with a limited 5 year warranty.
Lightning Ultra™ Gen. II SSD Application Workloads
- High Performance Computing (HPC)
- Oil and Gas
- Life Science
- Aerospace
- Engineering
- Media Editing
- Analytics
- Indexing
- Database Logging
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
| Lightning Ultra™ Gen. II | |
|---|---|
| Model Number | SDLTMCKW-800G-5C20 |
| Performance | |
| Interface | 12Gb/s SAS |
| Interface Ports | Dual full-duplex |
| Sequential Read/Write (MB/s) | Up to 980/740 |
| Random Read/Write (IOPS) (4K-single port) | Up to 199K/115K |
| Capacity | |
| 19nm User Capacities | 800GB |
| Reliability | |
| Data Reliability (UBER) | <1 sector in 10^19bits read |
| MTBF | 2.5 Million Hours |
| Endurance | |
| DWPD (Random Read) | 25 DWPD |
| Power | |
| Idle | 3.9W |
| Active (Typ) | 5.9W |
| Environmental | |
| Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
| Vibration | 2.17 g rms, 7-800 Hz |
| Operating Temperature | 0° C to 60° C |
| Storage Temperature | -40° C to 85° C |
| Humidity | 5% to 95%, non-condensing, relative humidity |
| Altitude | 5486.4 m [18,000 ft] |
| Mechanical | |
| Length | 100.45 mm |
| Width | 70.1 mm |
| Height | 15.0 mm |
| Weight | 0.238 Kg |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: FHFNJ 0FHFNJ
