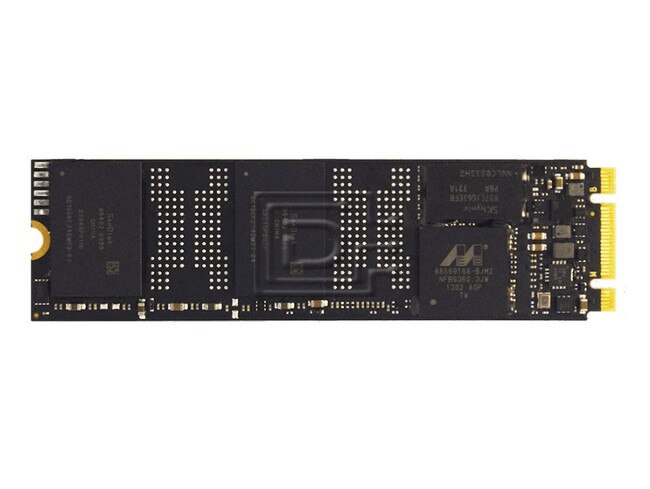

SanDisk SD7SN6S-128G 128GB M.2 6Gbps X300 TLC SATA SSD

SANDISK Part #/MPN: SD7SN6S-128G

DiscTech Item #: SAN-SD7SN6S-128G-BN-5Y

$109.00

Brand New
Condition Levels Explained
The product is brand new.
Warranty:5 Year Manufacturer
Product Warranties Explained
The product has a manufacturer warranty for the time period specified.
Low Stock:Call for ETA
Stock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back

$109.00

Capacity: 128GB

Speed: Solid State

Interface Types: SATA M.2 NGFF

Form Factor: M.2 x 80mm

Sector Size: 512 / 512e

Sustained Throughput: 520

Electrical Interface: SATA 600 - 6Gbps

SSD Type: TLC

SSD Endurance DWPD: Consumer / Value

SanDisk SD7SN6S-128G 128GB M.2 6Gbps X300 TLC SATA SSD - Brand New

SanDisk SD7SN6S-128G 128GB M.2 6.0 Gbps X300 Triple-Level Cell Serial Advanced Technology Attachment Solid State Disk Drive - Brand New

SanDisk® X300 SSD (Solid State Drive)

RELIABLE AND RESPONSIVE PERFORMANCE WITH LOW POWER

Based on state of the art 1Ynm TLC flash technology, the SanDisk X300 SSD SATA delivers performance with high reliability and low power. It features nCache™ 2.0, SanDisk’s next generation tiered caching technology, designed to improve SSD responsiveness for most corporate and consumer workloads. The X300 is highly versatile and can accommodate a wide range of computing platforms.

nCache 2.0 Technology - nCache 2.0 uses a combination of both SLC and TLC flash blocks to improve endurance, increase efficiency, and boost performance. By first writing all of the data to SLC blocks, the write amplification on the TLC blocks is minimized. The new On Chip Copy (OCC) mechanism then independently copies the SLC cache blocks into the TLC blocks in main storage, thus offloading the burden from the controller and DDR resources. This leaves the DRAM cache and controller free for other tasks.

Reliability - The X300 SSD also includes a new and robust on-the-fly error handling mechanism called Multi-Page Recovery (MPR). It uses page-level striping with distributed parity for an added layer of data protection and can recover errors that other traditional error correction mechanisms cannot.

Low Power - The X300 utilizes a SATA DEVSLP low-power mode, compatible with Microsoft® InstantGo, to minimize its power consumption during idle periods. DEVSLP enables the SSD to completely shut off its SATA PHY, thus resulting in much lower power consumption compared to SATA Slumber. This increases the amount of usable hours per battery charge, which is essential for modern mobile devices.

X300 KEY FEATURES

NCACHE 2.0 – IMPROVES SSD RESPONSIVENESS FOR HIGH PRODUCTIVITY WORKLOADS.
ON CHIP COPY (OCC) – OFFLOADS WORK FROM CONTROLLER AND DDR RESOURCES TO IMPROVE PERFORMANCE
MULTI PAGE RECOVERY (MPR) - PROVIDES AN ADDITIONAL LAYER OF DATA PROTECTION USING PAGE-LEVEL STRIPING WITH DISTRIBUTED PARITY
LOW POWER WITH DEVSLP SUPPORT AND INSTANTGO COMPATIBILITY
SATA REVISION 3.2 6GB/S INTERFACE
WINDOWS® WHCK CERTIFIED
DYNAMIC THERMAL THROTTLING

Compatibility:

This drive is compatible with any server that accepts M.2 x 80mm SATA drives.

Drive Model	SD7SN6S-128G
Capacity	128GB
Form Factor	M.2 2280
Interface	SATA III (6 Gb/s) backward compatible to SATA II (3 Gb/s) and SATA I (1.5 Gb/s)
Performance
Seq. Read up to (MB/s)	520
Seq. Write up to (MB/s)	415
Random Read up to (IOPS)	73K/s
Random Write up to (IOPS)	40K
Endurance (TBW)	up to 72
Power (Average)
Active Power (mW)	95
Max Read Operating (mW)	2,300
Max Write Operating (mW)	2,950
Slumber (mW)	70
DEVSLP (mW)	<7
MTTF	Up to 1,752,000 hours
Product Dimensions (mm)	2.23/22.00/80.0
Product Dimensions (in)	0.0878/0.8661/3.1496
Weight (g/lb)	8/0.0176
Environmental
Operating Temperature	0°C to 70°C
Non-Operating Temperature Range	-55°C to 85°C
Operating Vibration	50gRMS, 10 - 2000 Hz
Non-Operating Vibration	4.9 gRMS, 7 - 800 Hz
Shock	1,500 G @0.5 msec half sine
Certifications (g/lb)	FCC, UL, TUV, KC, BSMI, VCCI
