SANDISK Part #/MPN: SDLKOE9W-100G
DiscTech Item #: SAN-SDLKOE9W-100G-BN-5Y
- Brand New
- Warranty:5 Year Manufacturer
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 100GB
Speed: Solid State
Interface Types: SAS
Form Factor: 2.5" x 9mm Fits Most laptops
Sector Size: 512 / 512e
Sustained Throughput: Up to 500
Electrical Interface: SAS-2 6Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive / WI

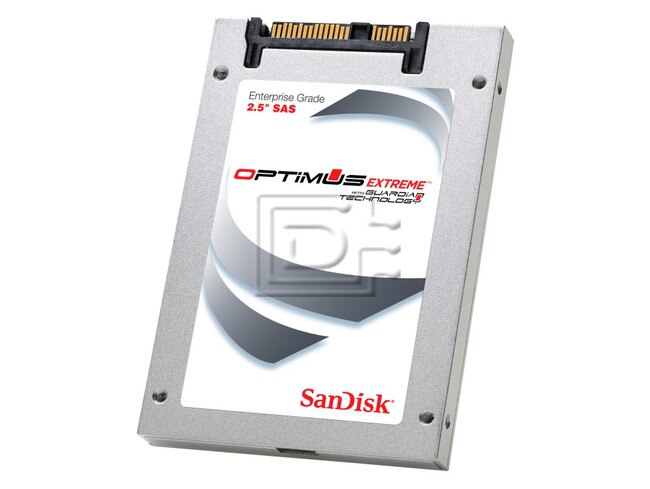

SanDisk SDLKOE9W-100G 100GB 2.5in 6Gbps eMLC Optimus Extreme SAS SSD - Brand New
SanDisk SDLKOE9W-100G 100GB 2.5" 6.0 Gbps Enterprise Multi-Level Cell Optimus Extreme Serial Attached SCSI Solid State Disk Drive - Brand New
Optimus Extreme SAS SSDs
The Ideal SSD Solution for Demanding Data-Intensive Workloads
Optimus Extreme™ SAS SSDs are designed for demanding write-intensive application workloads that need the highest levels of performance and reliability. Examples include financial applications and databases associated with workloads that are time-sensitive and produce results that are critical to the businesses they support.
Write-intensive workloads include database logging, data warehousing, high-performance computing (HPC)—especially when the HPC workload supports business decisions such as oil and gas applications—and financial on-line transaction processing (OLTP) applications.
Database Logging - Database logging is a write-intensive workload that allows customers to recover from failures by helping to connect primary and secondary databases. These database logs keep records of all database changes as transactions are updated, and they roll data forward to the point of failure. In cases of unplanned downtime, databases can be restored to a point beyond the last full, offline back-up, because they preserve the last in-flight transactions.
Databases and Data Warehouses - Database workloads require fast and accurate writes to disk, as well as easy access to the stored data. SanDisk Optimus Extreme SSDs support database workloads, even in virtualized computing environments. This is important because many IT organizations are consolidating database workloads to run on fewer physical servers, resulting in more efficient infrastructures that host business workloads in less data center space, and require less power and cooling. By hosting more virtual machines (VMs) per physical server, customers reduce total cost of ownership (TCO) and increase return on investment (ROI) for new server deployments that have SSDs, compared with hard-disk (HDD) deployments.
High-Performance Computing (HPC) - High-performance computing (HPC) workloads consist of high-volume processing of large datasets which are greatly benefited by using flash technology. HPC includes engineering and data-intensive workloads like seismic analysis, oil and gas exploration, weather forecasting, and market simulations. Flash storage SSDs help each server’s application in an HPC cluster to work more effectively and to protect data as it is generated by scale-out applications across the cluster.
Optimus Extreme™/ Write-Intensive Application Workloads
- High Performance Computing (HPC)
- Oil and Gas
- Life Sciences
- Aerospace
- Engineering
- Media Editing
- Analytics
- Indexing
- Database Logging
Compatibility:
This drive is compatible with any server that accepts 2.5"x9mm SAS drives.
Drive Model | SDLKOE9W-100G |
---|---|
Capacity | 100GB |
Form Factor | 2.5" 9.5mm |
Performance | |
Interface | 6Gb/s SAS |
Interface Ports | Dual/Wide |
Sequential Read/Write (MB/s) | Up to 500/500 MB/s /1 GB/s Wide-Port |
Random Read/Write (IOPS) | Up to 95K/40K IOPS |
Capacity | |
19nm eMLC User Capacities | 100GB |
Reliability | |
Sector Sizes | 512, 520, 528 byte |
Data Reliability (BER) | 1 unrecoverable error in 100,000,000,000,000,000 bits read |
MTBF | 2.5M hours2,500 |
Data Fail Recovery | F.R.A.M.E. (Flexible Redundant Array of Memory Elements) |
Power Fail Recovery | EverGuard Technology: Backup Power Circuitry |
Data Path Protection | DataGuard Technology, T10 DIF |
Endurance | |
Random Workload | 45 DWPD |
Power | |
Vcc | 5V/12V |
Active (Typ) | 7W |
Environmental | |
Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
Vibration | 2.17g rms, 7-800 Hz |
Operating Temperature | 0°C to 70°C |
Storage Temperature | -40°C to 90°C |
Humidity | 5% to 95%, non-condensing, relative humidity |
Altitude | 5486.4 m [18,000 ft] |
Mechanical | |
Length (mm/in) | 100.20/3.945 |
Width (mm/in) | 69.85/2.75 |
Height | 9.5/0.374 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 5 Year Manufacturer
Brand New
5 Year Manufacturer Warranty
