SanDisk SDLKOEGW-150G 150GB SAS SSD
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 150GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Write Intensive / WI |
| Electrical Interface: | SAS-2 6Gbps |
Description

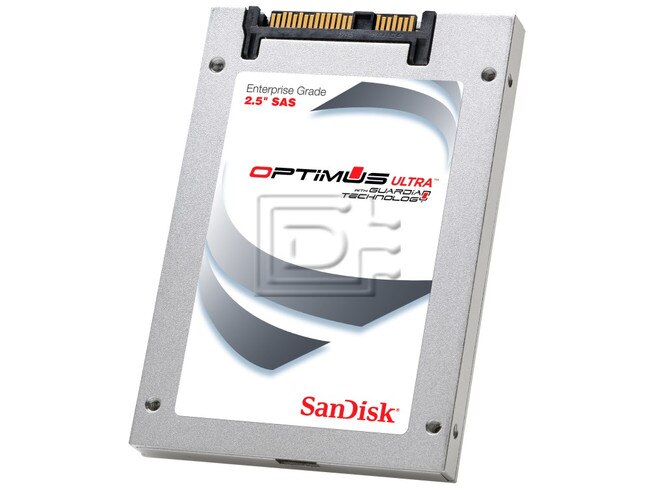

SanDisk SDLKOEGW-150G 150GB 2.5in 6Gbps eMLC Optimus Ultra SAS SSD - Brand New
SanDisk SDLKOEGW-150G 150GB 2.5" 6.0 Gbps Enterprise Multi-Level Cell Optimus Ultra Serial Attached SCSI Solid State Disk Drive - Brand New
Optimus Ultra™ SAS SSDs
Outstanding performance for a wide variety of write-intensive application workloads.
OEMs and IT managers no longer have to compromise on performance, endurance and reliability to obtain affordability. Optimus Ultra™ SSDs offer all four in a single package through a combination of unique and innovative IP, and the use of enterprise Multi-Level Cell (eMLC) flash. SanDisk’s newest generation of 19nm eMLC SSDs feature a native SAS 6Gb/s interface, outstanding performance metrics, and a comprehensive set of high-end features making them ideal to integrate with existing infrastructure for write-intensive applications with an I/O pattern designed predominately for workloads such as, Data Warehousing, Enterprise Resource Planning (ERP), Customer Relationship Management (CRM), and On-line Transaction Processing (OLTP), where performance and high-availability are required.
Optimus Ultra SSDs provide random read/write performance up to 95K/40K IOPS and sequential read/write data transfer rates of up to 550/540 MB/s. Optimus Ultra SSDs also include support for wide-port SAS capability providing up to 1 GB/s sequential read performance in applications that support this advanced feature. Optimus Ultra SSDs provide 25 random Drive Writes Per Day (DWPD).
Guardian Technology™ Platform
Optimus Ultra SAS SSDs are powered by SanDisk’s proprietary Guardian Technology Platform, a comprehensive suite of enterprise features comprised of FlashGuard™, DataGuard™ and EverGuard™ technologies.
FlashGuard Technology combines Aggregated Flash Management, which treats all flash elements as a single system, and Advanced Signal Processing, which dynamically adjusts flash parameters throughout the life of the SSD, to reliably extract significantly more life from commercial-grade MLC flash, making it suitable for write-intensive application workloads.
DataGuard Technology features full data path protection, safeguarding user data from corruption along all data paths in the SSD.
EverGuard Technology protects against loss of user data in the event of unexpected power interruptions using a 3rd generation backup power circuit design and high-reliability discrete capacitors. Optimus Ultra SAS SSDs are designed for I/O intensive, mission-critical, 24/7 applications.
Features
- 25 DWPD (random workload)
- Data Integrity – BER 1017
- FlashGuard – Enhances Flash Endurance
- DataGuard – Ensures Data Integrity
- EverGuard – Reliable 24x7 operation
Write-Intensive Application Workloads
- Data Warehousing
- Enterprise Resource Planning (ERP)
- Customer Relationship Management (CRM)
- On-line Transaction Processing (OLTP)
Compatibility
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) SAS drives.
Specifications
| Drive Model | SDLKOEGW-150G |
|---|---|
| Performance/IOPS | |
| Interface | SAS 6Gb/s |
| Interface Ports | Dual/Wide |
| Sequential Read/Write MB/s | Up to 550/380MB/s 1GB/s Wide Port |
| Random Read/Write (IOPS) | Up to 95K/40K IOPS |
| Capacity | |
| 19nm eMLC User Capacities | 150GB |
| Reliability | |
| Sector Sizes | 512, 520, 528 bytes |
| Data Reliability (BER) | 1 unrecoverable error in 10e17 bits read |
| MTBF | 2.5M hours |
| Data Fail Recovery | F.R.A.M.E. (Flexible Redundant Array of Memory Elements) |
| Power Fail Recovery | EverGuard™ Technology: Backup Power Circuitry |
| Data Path Protection | DataGuard™ Technology |
| Endurance | |
| DWPD (Random Workload) | 25 DWPD |
| Mechanical | |
| Length (mm/in) | 100.20/3.945 |
| Width (mm/in) | 69.85/2.75 |
| Height (mm/in) | 9.5/0.374 |
| Power | |
| Vcc | 5V, - 5%/+10% |
| Active (Typ) | 7W |
| Environmental | |
| Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
| Vibration | 2.17 g rms, 7-800 Hz |
| Operating Temperature | 0° C to 70° C |
| Storage Temperature | -40° C to 90° C |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
