SanDisk SDLLOCDR-038T-5CA1 4000GB SAS SSD Solid State Drive


DiscTech Item #: SAN-SDLLOCDR-038T-5CA1-NP-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 500

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

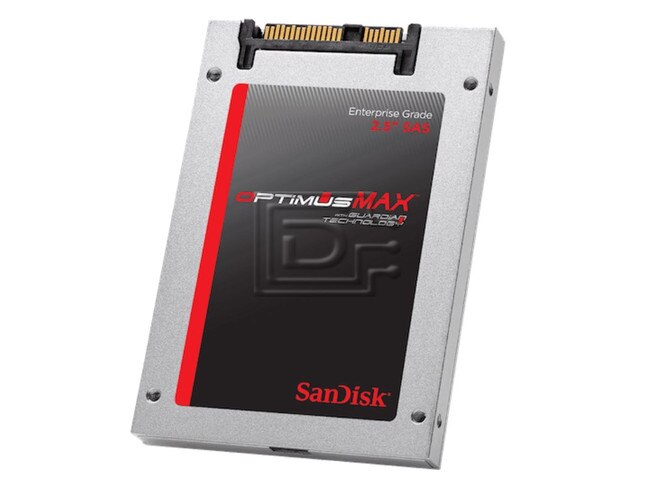

SanDisk SDLLOCDR-038T-5CA1 4TB 2.5" 6Gbps Optimus MAX eMLC SAS SSD - New Pull

SanDisk SDLLOCDR-038T-5CA1 4000GB 2.5" 6.0 Gbps Optimus MAX Enterprise Multi-Level Cell Serial Attached SCSI Solid State Disk Drive - New Pull

Achieve ultimate capacity and scalability for maximum TCO savings

The Optimus MAX™ 4TB SAS SSD is the first SSD of its kind to deliver SAS performance and features at the cost of SATA SSD-like prices for enterprise, cloud and virtualized data centers. This 4TB SSD enables organization to transition to a leaner infrastructure model, for maximum total cost of ownership (TCO) savings and surpasses the current high capacity 2.5" SAS SSDs and 2.5” SAS HDDs on the market today. The Optimus MAX SSD is optimized for read-intensive application workloads such as, Data Warehousing, Media Streaming, Web Servers, Video on Demand (VOD), and Web-based Applications with a typical workload comprised of a 90/10 read/write mix. This 4TB SAS SSD alleviates I/O bottlenecks by providing high-density storage for efficient data throughput to deliver, high performance, superior reliability and enhanced endurance for maximum application scalability.

The Optimus MAX 4TB SAS SSD features industry leading 19nm eMLC with a native 6Gb/s SATA interface and provides data transfer rates of up to 500/500MB/s sequential read/ write and performance of up to 65K/10K IOPS random read/write. This SSD offers 1 full drive write per day (DWPD) with a limited 5 year warranty. The Optimus MAX 4TB SAS SSD removes the flash capacity barrier for replacing 10K and 15K RPM SAS HDDs and provides an ideal solution for true storage stack applications.

Guardian Technology™ Platform

The Optimus MAX 4TB SSD is powered by SanDisk’s innovative Guardian Technology Platform, a comprehensive suite of enterprise features comprised of FlashGuard™, DataGuard™ and EverGuard™ technologies.

FlashGuard Technology combines Aggregated Flash Management, which treats all flash elements as a single system, and Advanced Signal Processing, which dynamically adjusts flash parameters throughout the life of the SSD, to reliably extract significantly more life from commercial-grade MLC flash, making it suitable for mixed-use application workloads.

DataGuard Technology features full data path protection, safeguarding user data from corruption along all data paths in the SSD. DataGuard also protects the SSD against loss of data at the page and block levels using a unique feature called F.R.A.M.E. (Flexible Redundant Array of Memory Elements). F.R.A.M.E. acts as a data recovery feature that enables the recovery of user data even after catastrophic events such as flash page or block failures.

EverGuard Technology protects against loss of user data in the event of unexpected power interruptions using a 3rd generation backup power circuit design and high reliability discrete capacitors.


This drive is compatible with any server that accepts 2.5" x 15mm (SFF Hard Drive) SAS drives.

Drive ModelSDLLOCDR-038T-5CA1
InterfaceSAS 6Gb/s
Interface PortsDual Wide
Sequential Read/WriteUp to 500/500 MB/s
Random Read/Write (IOPS)Up to 65K/10K
Sector Sizes512, 520, 528 byte
Data Reliability (UBER)<1 unrecoverable error in 10 bits read
MTBF2.5 Million Hours
Data Fail RecoveryF.R.A.M.E. (Flexible Redundant Array of Memory Elements)
Power Fail RecoveryEverGuard™ Technology: Backup Power Circuitry
Data Path ProtectionDataGuard™ Technology
DWPD (Random Workload)1 DWPD
Vcc5V, - 5%/+10%
Active (Typ)7W
Shock1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction
Vibration2.17 g rms, 7-800 Hz
Operating Temperature<0° C to 70° C (internal)
Storage Temperature-40° C to 90° C
Humidity5% to 95%, non-condensing, relative humidity
Altitude5486.4 m [18,000 ft]
Length (mm/in)100.20/3.945
Width (mm/in)69.85/2.75
Height (mm/in)15/0.591

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.5 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
