SANDISK Part #/MPN: SDLTODKR-800G-5CA1
DiscTech Item #: SAN-SDLTODKR-800G-5CA1-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 1000
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

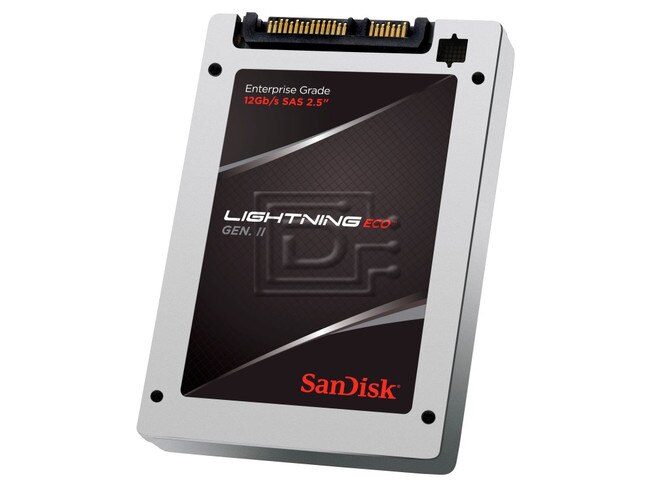

SanDisk Lightning Eco Generation 2.0 SDLTODKR-800-5CA1 800GB 2.5" 12.0 Gbps Enterprise Multi-Level Cell Self-Encrypting Serial Attached SCSI Solid State Disk Drive - Brand New
Alt MPN: SDLTODKR-800G
Lightning Eco™ Gen. II SAS SSDs
Maximize bandwidth with low latency read speeds for the highest, most cost-effective performance
The Lightning Eco™ Gen. II 12Gb/s SAS SSD doubles interface speed, providing the highest performance for mission-critical hyperscale, cloud and virtualized data center application workloads. This next generation Lightning® SSD offers a feature rich robust design, combined with SanDisk’s custom controller and innovative parallel processing architecture to deliver full data path protection (T10-DIF support), temperature based power control, SED instant secure erase, an MTBF of 2.5 million hours, and power fail protection. This SSD is backward-compatible with 6Gb/s SAS and offers a single firmware binary platform for seamless integration and reduced qualification times.
Lightning Eco™ Gen. II SAS SSDs offer solid I/O cost to performance benefits with low latency data access for high quality of service (QoS). Available in 19nm eMLC capacities from 800GB - 1.6TB2 and with random read/write performance of up to 180K/35K IOPS and sequential read/write speed of up to 1000/500 MB/s. These SSDs are designed for read-intensive applications such as Data Warehousing, Media Streaming, Video on Demand (VOD), Web-based Applications, Virtual Tape Libraries (VTL) and File Servers, with a heavy read workload comprised of a 90/10 read/write mix. This SSD offers 3 full drive writes per day (DWPD).
Lightning Eco Gen. II SAS SSDs are a product of SanDisk’s vertical integration - spanning from the fabrication of the NAND technology and wafer to the manufacturing of the finished SSD. This vertical integration, results in a customized solution that takes full advantage of each component to deliver maximum performance and quality assurance. Lightning Eco Gen. II SSDs provide high, predictable performance, industry-leading reliability and maximum value.
Features
- Full data path protection, End-to-end T10-DIF support
- SED, Instant Secure Erase
- Temperature-based performance control
- MTBF - 2.5 Million Hours
Benefits
- High, Predictable Performance
- Industry-leading Reliability
- Highest Cost-to-performance value
- Low latency data access for high quality of service (QoS)
- Maximum bandwidth for high speed data transfer rates Read-Intensive
Application Workloads
- Data Warehousing
- Web Servers
- Media Streaming
- Virtual Tape Libraries (VTL)
- Video on Demand (VOD)
- Web-Based Applications
- File Servers
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
| Drive Model | SDLTODKR-800G-5CA1 |
|---|---|
| Performance/IOPS | |
| Data Throughput (Sequential Read/Write) | 1000/500 MB/s |
| Total IOPS (Random Read) 4KB - (single port) | 180,000 IOPS |
| Total IOPS (Random Write) 4KB - (single port) | 35,000 IOPS |
| Interface, Capacity, and Memory Technology | |
| Host Interface | 12Gb/s SAS |
| Interface Ports | Dual full-duplex |
| Form Factor | 2.5 inch |
| 19nm eMLC User Capacities | 800GB |
| Sector Sized Supported | 512, 520, 528 bytes/sector |
| Reliability | |
| MLC Page Pairing Protection | No risk of data loss |
| Unrecovered Bit Error Rate (UBER) | 1 sector in 10e17 bits read |
| End-to-End Data Protection | No performance impact |
| Patrol Read (automatic) | No performance impact |
| Power-on Hours | 8760 hours per year |
| MTBF | 2.5 million hours |
| Endurance | |
| DWPD (Random Workload) | 3 DWPD |
| Physical Dimensions | |
| Length (mm/in) | 100.45/3.9547 |
| Width (mm/in) | 70.1/2.7598 |
| Height (mm/in) | 15.0/0.59055 |
| Weight (g/lb) | 238/0.5247 |
| Power Consumption | |
| Idle | 3.9 watts |
| Typical | 5.9 watts |
| Environment | |
| Operating Temperature (ambient) | 0° C to 60° C |
| Non-Operating Temperature | -40° C to 85° C |
| Start-up Time (Power-on to Ready) | <15 seconds |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDLTODKR-800G
Weight: 1.5 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
