DiscTech Item #: SAN-SDSSDXP-480G-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Consumer / Value

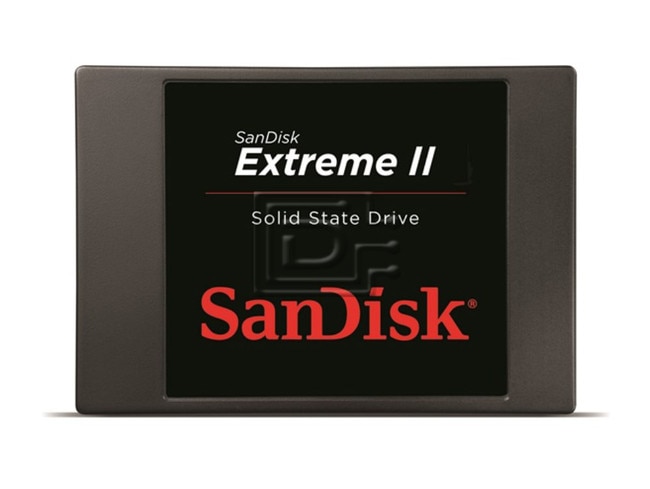

SanDisk SDSSDXP-480G 480GB 2.5in 6Gbps Extreme II SATA SSD - Brand New

SanDisk SDSSDXP-480G 480GB 2.5" 6.0 Gbps Extreme II Serial Advanced Technology Attachment Solid State Disk Drive - Brand New


Whether it’s extending the battery life of your PC or improving your gameplay, the SanDisk Extreme® II SSD is the reliable drive for you. Enjoy faster performance1, providing next-level speed for your graphic-intense games. Get faster load times and enhance your computing experience from boot-up to shut-down and every moment in-between. The SanDisk Extreme II SSD features no moving parts for quiet operation and is also backed by rigorous shock and vibration testing. Get faster performance with SanDisk Extreme II SSD.

nCache technology is used to accumulate small writes (called segments) at high speed and then flush and consolidate them to larger sections of the Flash memory array. Thermal throttling allows to lower performance in the event junction temperature of critical components is measured to be exceeding the maximum allowed for the product.


  • Built on Sandisk’s proprietary nCache™ technology
  • Supports thermal throttling
  • Launch applications faster and enjoy quicker system boot ups/shut downs
  • Low power consumption for cooler operation and extended battery life1
  • Noise reduction for quiet drive operation
  • Designed to withstand shocks and vibration for high durability
  • Durable stainless-steel casing


This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives

Drive ModelSDSSDXP-480G
Interface TypeSATA
Interface Speed6Gbps
Seq. Read (up to)545 MB/s
Seq. Write (up to)500 MB/s
Rnd. Read (up to)95K IOPS
Rnd. Write (up to)75K IOPS
Operating temperature32ºF to 158ºF (0ºC to 70 ºC)
Shock Resistantup to 1500 G @ 0.5 m/sec
Vibration (Operating)5 gRMS, 10-2000 HZ
Vibration (Non-Operating)4.9 gRMS, 7-800 HZ
Width (in/mm)0.28/7.0
Height (in/mm)2.75/69.85
Depth (in/mm)3.96/100.5
Weight (lb/g)0.12/54.43

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SDSSDXP-480G-G25 SDSSDXP-480G-G26

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
