Seagate Part #/MPN: ST320014A
DiscTech Item #: SGT-ST320014A-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 20GB
Speed: 5,400RPM
Interface Types: IDE ATA 3.5in
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 18.0 / 24.9
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 2MB

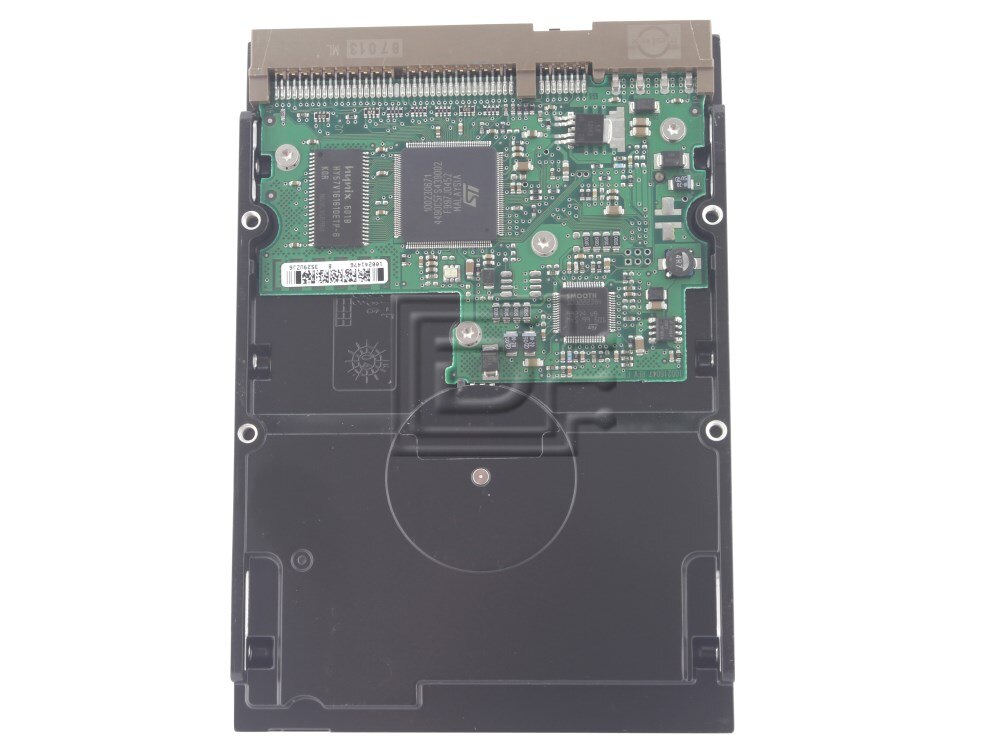

Seagate 20GB Ultra ATA / 100 IDE Hard Drive ST320014A - Refurbished
- Low power consumption
- High instantaneous (burst) data-transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5
- Giant magnetoresistive (GMR) recording heads and GPRML technology, which provide the drives with increased areal density
- State-of-the-art cache and on-the-fly error-correction algorithms
- Full-track multiple-sector transfer capability without local processor intervention
- Quiet operation
- 350 Gs nonoperating shock
- SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
- Support for S.M.A.R.T. drive monitoring and reporting
- Support for drive self-test (DST) with S.M.A.R.T. Execute Off-line Immediate
- Support for Read Multiple and Write Multiple commands
- Support for autodetection of master/slave drives that use cable select (CSEL)
Alt P/N : 9W1021-302 9W1021-301 9W1021 100265635 100236888
Compatibility:
This drive is compatible with any computer having an IDE/PATA controller.
| Specifications | |
| Model number | ST320014A |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 19.9 mm |
| Width | 101.9 mm |
| Length | 147 mm |
| Weight | 0.455 kg |
| Formatted Capacity | 20 Gbytes |
| Rotational Speed | 5,400 rpm |
| Internal Transfer Rate (max) | 455 Mbits/sec |
| External (I/O) Transfer Rate (max) | 100 MBytes/sec |
| Average Seek Time, Read | 18 msec typical |
| Average Seek Time, Write | 24.9 msec typical |
| Track-to-Track Seek, Read | 1.2 msec typical |
| Track-to-Track Seek, Write | 2.0 msec typical |
| Default Buffer (cache) Size | 2 Mbytes |
| Number of Discs (physical) | 1 |
| Number of Heads (physical) | 1 |
| Startup Current (12VDC +/- 5%) | 1.9 amps |
| Startup Current (5VDC +/- 5%) | .5 amps |
| Max Operating Shock (2-msec) | 63 Gs |
| Max Nonoperating Shock (2-msec) | 350 Gs |
| Operating Vibration (max) | .5 Gs |
| Nonoperating Vibration (max) | 5.0 Gs |
| Operating Temperature (max) | 60 deg C |
| Operating Temperature (min) | 0 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustics, Idle (sound power, typ) | 2.7 Bels |
| MTBF (Hours) | 600,000 hours |
| Nonrecoverable Read Errors | 1 per 10^13 bits read |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9W1021-302 9W1021-301 9W1021 100265635 100236888
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
