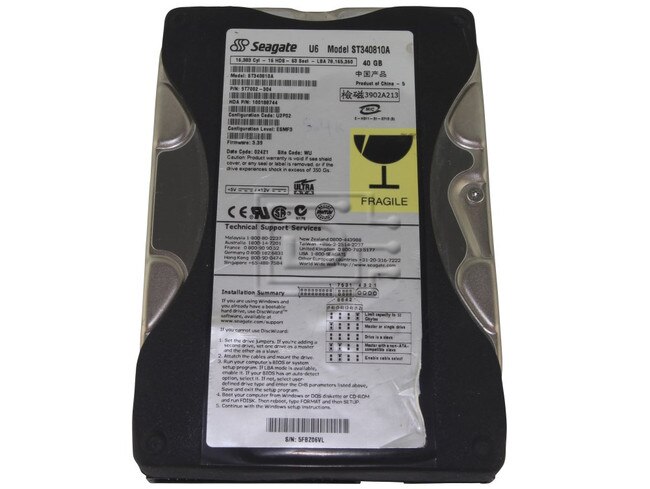

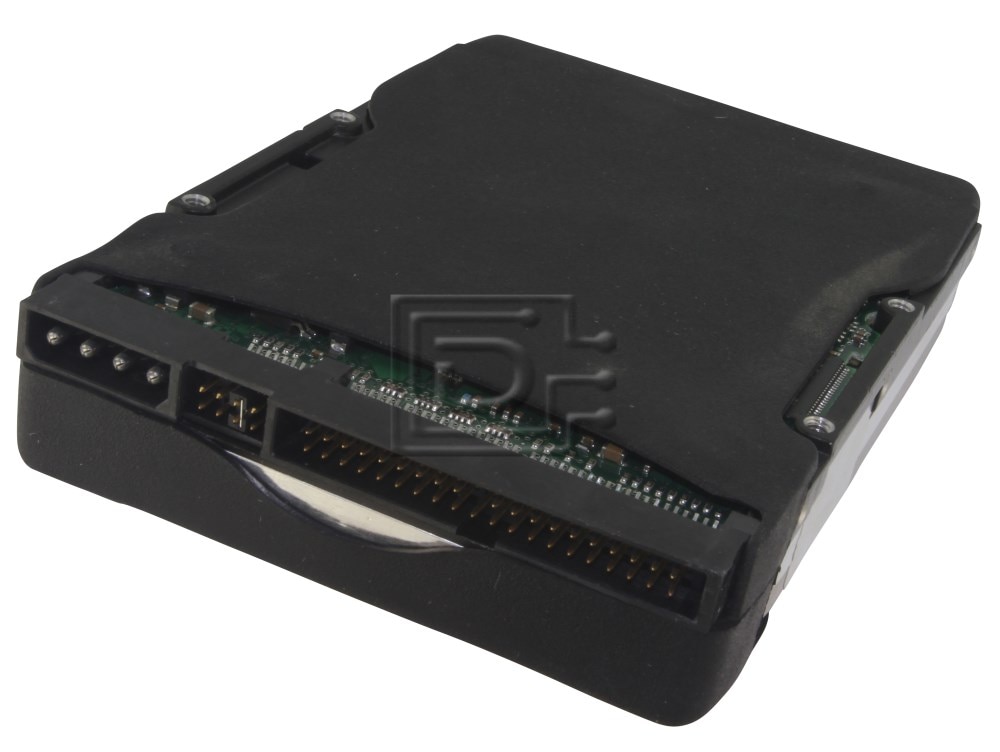

Seagate 40GB U Series 6 ATA / 100 IDE Hard Drive ST340810A

Seagate Part #/MPN: ST340810A

DiscTech Item #: SGT-ST340810A-BN-OE

$199.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$199.00

Capacity: 40GB

Speed: 5,400RPM

Interface Types: IDE ATA 3.5in

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 9.9 / 10.9

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 2MB

Seagate 40GB U Series 6 ATA / 100 IDE Hard Drive ST340810A - Brand New

Alt MPN: 9T7002-304

  • 8.9 msec seek time, 5,400 RPM and 2-Mbyte buffer combine for excellent desktop performance
  • Low power consumption
  • High instantaneous (burst) data-transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5
  • Giant magnetoresistive (GMR) recording heads and GPRML technology, which provide the drives with increased areal density
  • State-of-the-art cache and on-the-fly error-correction algorithms
  • Full-track multiple-sector transfer capability without local processor intervention
  • Quiet operation
  • 350 Gs nonoperating shock
  • The innovative, shock-absorbing SeaShield® cover protects the drive against electrostatic discharge (ESD) and other handling damage. It also includes installation instructions and jumper settings
  • SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns
  • Support for S.M.A.R.T. drive monitoring and reporting
  • Support for Read Multiple and Write Multiple commands
  • Support for Read Multiple and Write Multiple commands
  • Support for autodetection of master/slave drives that use cable select (CSEL)
  • Support for autodetection of master/slave drives that use cable select (CSEL)


Compatibility:

This drive is compatible with any computer having an IDE/PATA controller.

Specifications
Model number ST340810A
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 26.1 mm
Width 101.85 mm
Length 147 mm
Weight 680 g
Formatted Capacity 40 Gbytes
Rotational Speed5,400 rpm
Internal Transfer Rate (max) 436 Mbits/sec
External (I/O) Transfer Rate (max) 100 MBytes/sec
Average Seek Time, Read 9.9 msec typical
Average Seek Time, Write 10.9 msec typical
Track-to-Track Seek, Read 1.2 msec typical
Track-to-Track Seek, Write 2.0 msec typical
Default Buffer (cache) Size 2 Mbytes
Number of Discs (physical) 1
Number of Heads (physical)  1
Startup Current2.5 amps

Max Operating Shock (2-msec) 63 Gs
Max Nonoperating Shock (2-msec) 350 Gs
Operating Vibration (max) .5 Gs
Nonoperating Vibration (max) 5.0 Gs
Operating Temperature (max) 60 deg C
Operating Temperature (min) 0 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustics, Idle (sound power, typ) 3.0 Bels
MTBF (Hours) 600,000 hours
Nonrecoverable Read Errors 1 per 10^13 bits read
Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9T7002-304

Weight: 1.8 lb
