Seagate Part #/MPN: ST380815AS
DiscTech Item #: SGT-ST380815AS-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 80GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 78
Average Seek Time: 11 / 12
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

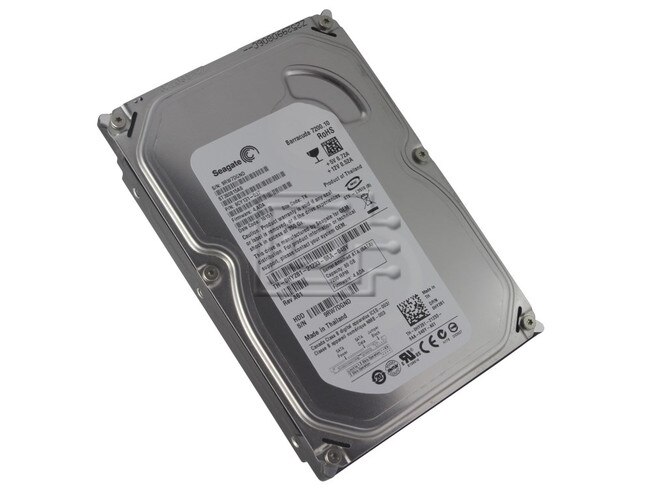

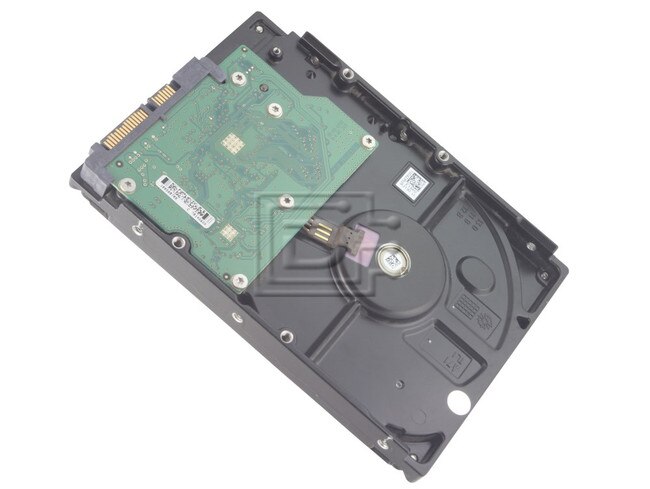

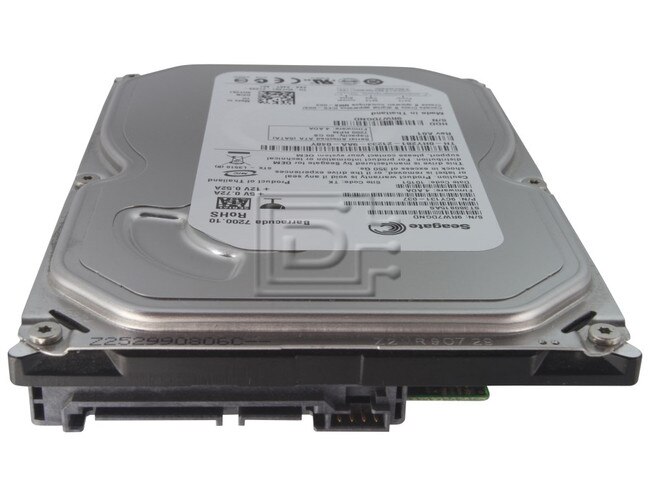

Seagate Barracuda 7200.10 80GB 7.2K SATA Hard Drive ST380815AS - New Pull
Barracuda 7200.10 is a member of the Seagate 3.5-inch family of high-capacity desktop drives targeted at mainstream, high-performance and gaming PCs and advanced storage applications. The product enables OEMs and system builders to qualify one family of drives from a premier provider for a wide range of storage applications.
General | |
Manufacturer | Seagate Technology |
Model | 7200.10 |
Product Line | Seagate Barracuda |
Environmental Parameters | |
Max Operating Temperature | 140 °F |
Min Operating Temperature | 32 °F |
Shock Tolerance Operating | 63 G @ 2 ms |
Shock Tolerance Storage | 350 G @ 2 ms |
Interface | |
Connector Type | 7 pin Serial ATA |
Interface (Storage) | Serial ATA-300 |
Drive Performance | |
Average Latency | 4.16 ms |
Average Seek Time R/W | 11 ms / 12ms |
Buffer Size | 8 MB |
Capacity | 80 GB |
Data Transfer Rate | 300 MBps |
Form Factor | 3.5 x 1/3H |
Hard Drive Type | Internal hard drive |
Interface Type | Serial ATA-300 |
Non-Recoverable Errors | 1 per 10^14 |
Spindle Speed | 7200 rpm |
Start Stop Cycles | 50,000 |
Dimensions & Weight | |
Depth | 5.8 in |
Height | 1 in |
Weight | 1.5 lbs |
Width | 4 in |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
