Seagate Part #/MPN: ST32550N
DiscTech Item #: SGT-ST32550N-RF-6M
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 2GB
Speed: 7,200RPM
Interface Types: SCSI 50pin
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 8.0 / 9.0
Electrical Interface: SCSI Ultra2 Wide - 80MBps 16-bit
On-Board Cache: 1MB

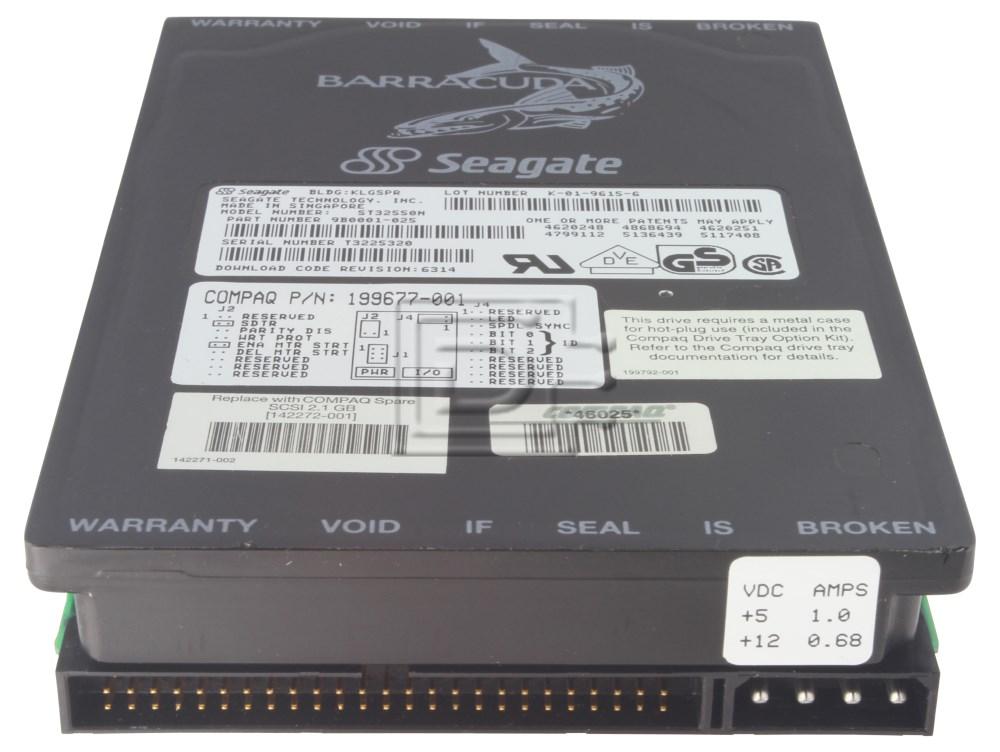

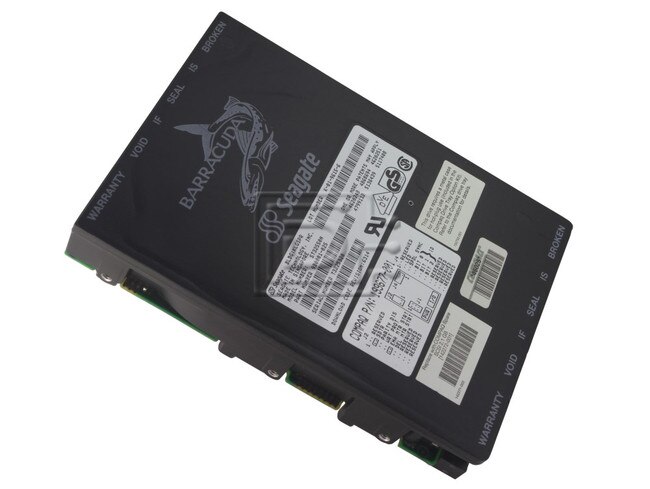

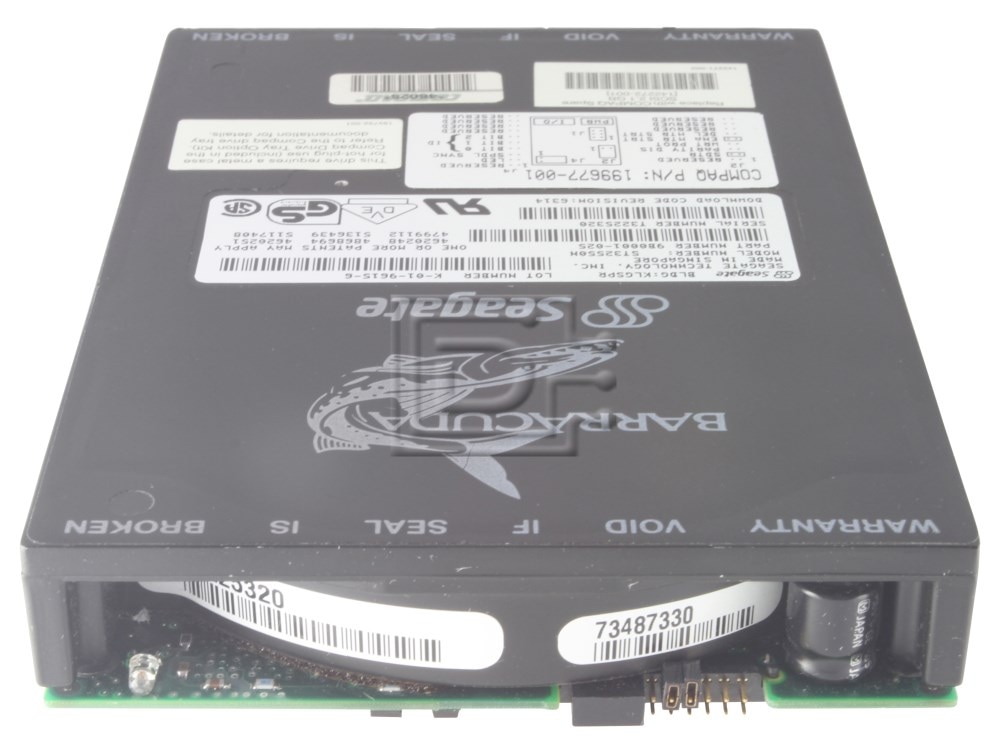

Seagate Barracuda ST32550N 2LP 2.15GB 7.2K Ultra2 50pin SCSI HDD - Refurbished
Barracuda drives are low-cost, high-performance, random-access storage devices designed to meet the needs of the original equipment manufacturer (OEM) marketplace.
The Barracuda drive’s interface supports disconnect/reconnect, multiple initiators, self-configuring host software, and automatic features that relieve the host from knowing the physical characteristics of the targets (logical block addressing is used).
The head and disc assembly (HDA) is sealed at the factory. Air circulates within the HDA through a non-replaceable filter to maintain a contamination free HDA environment.
Barracuda 2LP drives have the following standard features:

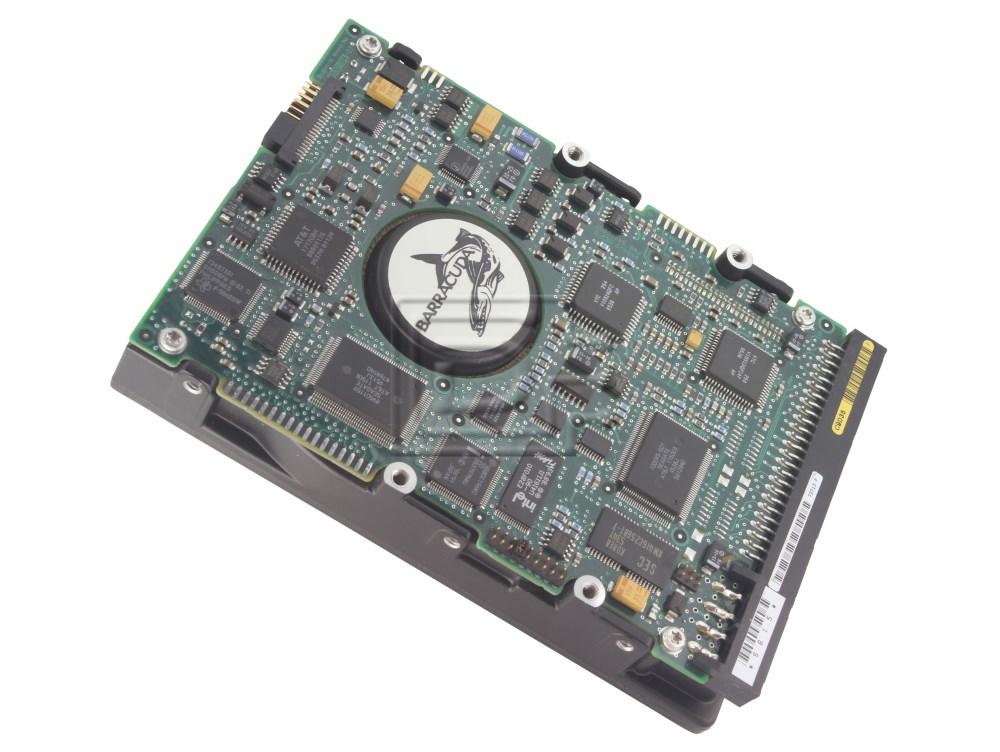

- Integrated SCSI controller
- Single-ended or differential SCSI drivers and receivers
- Asynchronous and synchronous data-transfer protocols
- Firmware downloadable using a SCSI interface
- Selectable sector size from 180 to 4,096 bytes per sector
- Programmable sector-reallocation scheme
- Flawed sector reallocation at format time
- Programmable auto-write and auto-read reallocation
- Reallocation of defects on command (post format)
- 96-bit Reed-Solomon error-correction code
- Sealed head and disc assembly (HDA)
- No preventive maintenance or adjustments required
- Dedicated head-landing zone
- Automatic shipping lock
- Automatic thermal compensation
- Embedded Grey Code track address to eliminate seek errors
- Self-diagnostics performed at power-on
- 1:1 interleave
- Zone bit recording (ZBR)
- Vertical, horizontal, or top-down mounting
- Dynamic spindle brake
- Active IC terminators
- Synchronous spindle capability
- 512 Kbyte data buffer
- Low audible noise for office environment
- Low power consumption
Alt. PN: 9B0001
Compatibility:
This Drive is compatible with any Server that accepts 3.5in x 1.0in (LFF Hard Drive) 50 Pin SCSI Drives.
| Specifications | |
|---|---|
| Model Number | ST32550N |
| Drive capacity, Mbytes unformatted | 2,541.3 |
| Read/write data heads, maximum (physical) | 11 |
| Bytes per track, average bytes | 64,160 |
| Bytes per surface, Mbytes unformatted | 231.03 |
| Cylinders/track per surface, user accessible | 3,510 |
| Tracks per inch | 4,048 |
| Bits per inch | 72,680 |
| Servo heads | 1 |
| Internal data rate per physical head, Mbits/sec, variable with zone | 4934 to 72.0 |
| Disc rotation speed | 7,200 ± 0.5% |
| Average rotational latency, msec | 4.17 |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9B0001
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
