Seagate Barracuda ST3500320AS 500GB SATA Hard Drive
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 500GB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 32MB |
Description

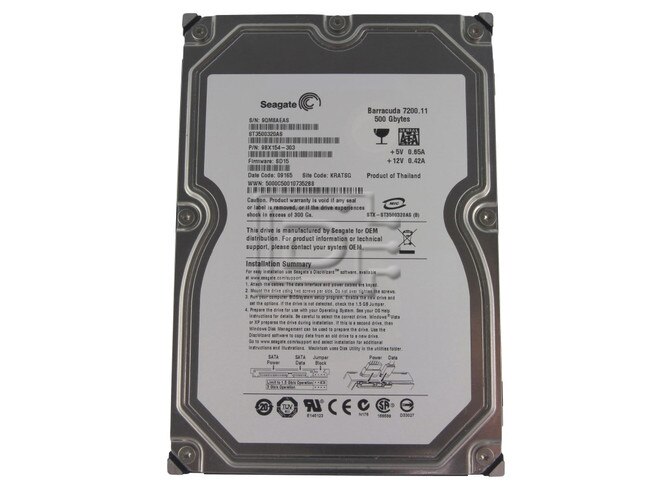

Seagate Barracuda 7200.11 500GB 7.2K SATA Hard Drive ST3500320AS - Refurbished
This drive provides the following key features:
• 7,200 RPM spindle speed.
• High instantaneous (burst) data-transfer rates (up to 300 Mbytes per second).
• Perpendicular recording, Tunneling Magnetoresistive (TMR) recording heads and EPRML technology, for
increased areal density.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Native Command Queueing with command ordering to increase performance in demanding applications.
• Full-track multiple-sector transfer capability without local processor intervention.
• Quiet operation.
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Supports latching SATA cables and connectors
Specifications
| Specifications | 500 GB |
|---|---|
| Model Number | ST3500320AS |
| Interface | SATA 3.0Gb/s |
| Cache | 32 MBytes |
| Capacity | 500 GB |
| Guaranteed Sectors | 976,773,168 |
| Heads | 4 |
| Discs | 2 |
| Bytes Per Sector | 512 |
| Default Sectors Per Track | 63 |
| Default read/write heads | 16 |
| Default Cylinders | 16,383 |
| PHYSICAL | |
| Height (max) | 26.1 mm (1.028 inches) |
| Width (max) | 101.6 mm (4.010 inches) |
| Length (max) | 146.99 mm (5.787 inches) |
| Weight (typical) | >=530 grams (>=1.168 pounds) |
| PERFORMANCE | |
| Spindle Speed | 7,200 rpm |
| Average latency | 4.16 msec |
| Random read seek time | 8.5 msec |
| Random write seek time | 9.5 msec |
| RELIABILITY | |
| MTBF | 1,200,000 hours |
| Annual Failure Rate | 0.34 |
| POWER | |
| Maximum start current, DC | 2.80 amps |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
