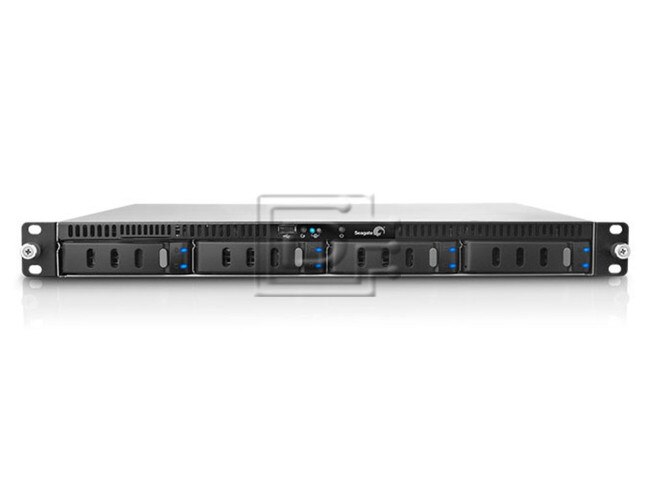

Seagate Business STDN12000100 NAS Array

Seagate Part #/MPN: STDN12000100

DiscTech Item #: SGT-STDN12000100-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 12TB

Interface Types: SATA, SCSI 80pin SCA-2 Hot-Swap, eSATA External, USB 2.0, USB 3.0 3.1 3.2, Ethernet RJ45

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 4

U Height: 1U

Wattage/VA: 180W

Voltage: 110-240V Multi

Seagate Business Storage Rackmount STDN12000100 4-Bay 12TB (4x 3TB Serial ATA) 1U Dual Gigabit Ethernet iSCSI NAS Storage Array - Brand New

Includes: 4x 3TB SATA drives

Business Storage 4-BAY RACKMOUNT NAS

Centralize your storage and backups with a complete network storage solution that saves valuable floor space for small businesses.
The Seagate® Business Storage 4-bay Rackmount NAS is a complete network storage solution designed to keep businesses with up to 100 employees productive by creating a secure, shared space for file storage and backup. Offering an excellent blend of performance and value, the 4-bay Rackmount NAS is the ideal network storage solution for growing, small businesses.

The 4-bay Rackmount NAS features a short-depth chassis, allowing it to be installed in a shallow rack, which saves valuable floor space, making it the ideal solution for growing businesses. The 4-bay Rackmount NAS includes Seagate NAS HDD drives featuring NASWorks™ technology, which supports customized error recovery controls, power management and vibration tolerance for optimal performance and reliability. In addition, the 4-bay Rackmount NAS is equipped with hot-swappable drive bays and dual Gigabit Ethernet ports to help increase uptime and keep your business running.

Powered by the performance-optimized Seagate NAS OS and featuring a 2.13GHz dualcore Intel Atom™ processor coupled with 2GB of RAM, the 4-bay Rackmount NAS delivers impressive file transfer performance of up to 200MB/s. Plus, built-in support for iSCSI enables maximum performance and compatibility for virtualized environments.

Collaboration, sharing and anywhere access are brought together seamlessly with integrated Seagate Sdrive™ software and business-focused apps for Windows, Mac®, smartphone and tablet. The Sdrive app, built into the Seagate NAS OS, enables you to access your data anywhere, on-site or off-site through the same simple experience. All data is first encrypted before leaving the 4-bay Rackmount NAS, and decrypted on the user’s device for best-in-class security

Business Storage 4-Bay Rackmount NAS
Standard Model NumbersSTDN12000100
Device TypeNAS Server
Host ConnectivityGigabit Ethernet
Enclosure TypeRack-mountable - 1U
Total Storage Capacity12TB
Installed Devices / Modules Qty4 (max)
Width16.9 in
Depth15 in
Height1.7 in
Weight20 lbs
Processor / Memory
Processors Installed1 x Intel Atom 2.13 GHz
Number of CoresDual-Core
Max Supported Qty1
RAM Installed2GB - DDR3
Storage Controller
Interface TypeSATA 6Gb/s
RAID Level
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
  • Hard Drive
    TypeHDD - hot-swap - 3.5"
    TypeNetwork adapter
    Data Link Protocol
  • 10Mb LAN
  • 100Mb LAN
  • GigE
  • Network / Transport ProtocolSMB
    Remote Management Protocol
  • HTTP
  • Network Services Compatibility
  • Microsoft Active Directory (AD)
  • Microsoft CIFS
  • Network File System (NFS)
  • FTP
  • FTPS
  • Server Message Block (SMB)
  • Apple File Protocol (AFP)
  • HTTP
  • Features
  • Wake on LAN (WOL)
  • print server
  • iTunes server
  • UPnP Media Server
  • DLNA Media Server
  • Apple Time Machine compatible
  • CompliantIEEE 802.3ad (LACP)
    Expansion / Connectivity
    Expansion Bays4 x hot-swap - 3.5"
  • 2 x USB 3.0
  • 3 x USB 2.0
  • 1 x eSATA
  • 1 x Ethernet 1000Base-TX - RJ-45
  • Miscellaneous
    Cables Included1 x network cable
    FeaturesBuilt-in 2 cooling fans
    Power DeviceX internal power supply
    Voltage RequiredAC 120/230 V ( 50/60 Hz )
    Software / System Requirements
    Software IncludedWuala
    OS Required
  • Microsoft Windows Server 2008 R2
  • Apple MacOS X 10.6 or later
  • Microsoft Windows Server 2008
  • Microsoft Windows Server 2012
  • Microsoft Windows Vista / XP / 7 / 8

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 21 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
