Seagate Business Windows STDM8000100 NAS Array

Seagate Part #/MPN: STDM8000100

DiscTech Item #: SGT-STDM8000100-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 8TB

Interface Types: SATA, SCSI 80pin SCA-2 Hot-Swap, USB 2.0, USB 3.0 3.1 3.2, Ethernet RJ45, VGA

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 4GB

Bays/Ports/Slots: 4

Wattage/VA: 40W

Voltage: 110-240V Multi

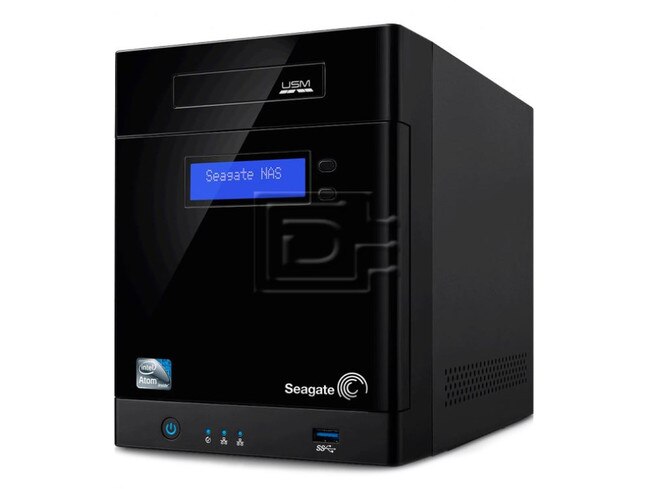

Seagate Business Storage Windows Server STDM8000100 4-Bay 8TB (4x 2TB Serial ATA) Dual Gigabit Ethernet iSCSI NAS Storage Array - Brand New

Includes: 4x 2TB SATA drives


Centralize your storage to allow all the computers in your business to access, collaborate and share files.
The Seagate® Business Storage Windows® Server 4-bay NAS is a complete network storage solution designed for branch offices with up to 50 employees. Offering native support for Active Directory for ease of installation and scalability, the Windows Server 4-bay NAS is perfect for growing businesses utilizing Windows IT infrastructure.

Featuring Windows Storage Server 2012 Workgroup edition, the Windows Server 4-bay NAS makes a great solution for businesses that need to retain centralized management and integration with other Windows Servers on the network. Windows Storage Server 2012 also includes Storage Spaces™, which manages the four drives in the server to deliver the optimal blend of capacity, performance and redundancy. In addition, Storage Spaces drive-pooling technology makes it easy to add drives to the system, upgrade to larger drives in the future or utilize thin provisioning for specific storage applications.

With Bitlocker® encryption, an administrator has the option to secure the contents of every drive in the system, including external drives. For an added level of protection, the Windows Server 4-bay NAS is designed with a USM slot that can hold a portable drive, and when combined with built-in Windows Server Backup software, it makes a great solution for offsite backup. Also, external drives can be connected to one of the two USB 3.0 ports in order to add capacity to the main storage pool or to be used as a backup destination.

Powered by a 2.13GHz dual-core Intel Atom™ processor coupled with 4GB of RAM and support for SMB 3.0, the Windows Server 4-bay NAS delivers impressive file transfer performance of up to 200MB/s. Plus, built-in support for iSCSI enables maximum performance and compatibility for virtualized environments.

Business Storage Windows Server 4-Bay NAS
Standard Model NumbersSTDM8000100
Device TypeNAS Server
Host ConnectivityGigabit Ethernet
Total Storage Capacity8TB
Installed Devices / Modules Qty4 (max)
Width6.3 in
Depth7.9 in
Height9.9 in
Weight16.4 lbs
Processor / Memory
Processors Installed1 x Intel Atom 2.13 GHz
Number of CoresDual-Core
Max Supported Qty1
RAM Installed4GB - DDR3
Storage Controller
Interface TypeSATA 6Gb/s
RAID Level
  • RAID 0
  • RAID 1
  • RAID 5
  • JBOD
  • Hard Drive
    TypeHDD - hot-swap - 3.5"
    Storage Removable
    Type1 x USM
    TypeNetwork adapter
    Data Link Protocol
  • 10Mb LAN
  • 100Mb LAN
  • GigE
  • Network / Transport Protocol
  • iSCSI
  • FTP
  • SMB
  • Remote Management Protocol
  • HTTP
  • Network Services Compatibility
  • Microsoft Active Directory (AD)
  • Microsoft CIFS
  • Network File System (NFS)
  • FTP
  • FTPS
  • Server Message Block (SMB)
  • HTTP
  • Features
  • Wake on LAN (WOL)
  • DFS support
  • Expansion / Connectivity
    Expansion Bays4 x hot-swap - 3.5"
  • 2 x USB 3.0
  • 1 x USB 2.0
  • 2 x Ethernet 1000
  • Miscellaneous
    Cables Included1 x network cable
    FeaturesAutomatic fan speed control
    Software / System Requirements
    Storage Operating SystemMicrosoft Windows Storage Server 2012 Workgroup
    OS Required
  • Apple MacOS X 10.5.8 or later
  • Microsoft Windows Vista / XP / 7 / 8
  • System Requirements DetailsPentium - 1 GHz - RAM 512 MB

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 17.5 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
