Seagate Constellation.2 ST9250610NS SATA Enterprise Hard Drives

Seagate Part #/MPN: ST9250610NS

DiscTech Item #: SGT-ST9250610NS-BN-3Y

$115.00

Brand New
Condition Levels Explained
The product is brand new.
Warranty:3 Year Manufacturer
Product Warranties Explained
The product has a manufacturer warranty for the time period specified.
Low Stock:Call for ETA
Stock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back

$115.00

Enterprise Grade

Capacity: 250GB

Speed: 7.2K RPM

Interface Types: SATA

Form Factor: 2.5" SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 115

Average Seek Time: 8.5 / 9.5

Electrical Interface: SATA 600 - 6Gbps

On-Board Cache: 64MB

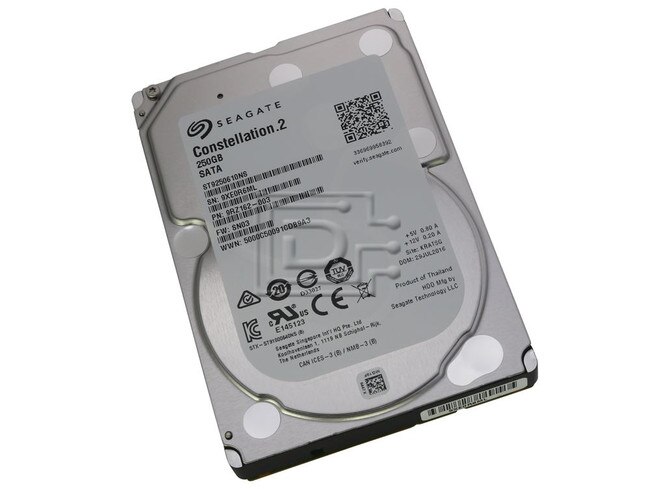

Seagate Constellation.2 ST9250610NS 250GB 7.2K SATA Enterprise Hard Drives - Brand New

Bulk data storage in a small footprint.

The Seagate® Constellation.2™ drive is the only 2.5-inch enterprise-class hard drive delivering both 1TB capacities and enterprise reliability at the industry's lowest power consumption for storage-hungry nearline applications. Self-Encrypting Drive (SED) and FIPS 140-2 Validated™ SED security options available to help you protect your data.

Maximizes data center footprint with up to 76TB per square foot
Energy efficient storage at under 3.9 watts (idle)
Highest nearline reliability with an MTBF of 1.4M hours
6Gb/s performance in both SAS and SATA interfaces

Unparalleled power savings.

Constellation.2 hard drives reduce per-gigabyte cooling and energy costs by packing high capacities into an SFF, low-power-consumption drive.

Included Seagate® PowerChoice™ technology can further reduce energy costs by empowering IT organizations to tailor systems for optimal performance and power consumption.

Big storage for small spaces.

Constellation.2 hard drives can help you deploy additional enterprise storage without expanding your data center.

With its 15mm z-height, the 1TB model is the first 2.5-inch hard drive capacity-optimized for dense, space-constrained data centers. This model can help you store twice as much data in the same footprint, supporting up to 76TB of storage per square foot.

Secure self-encryption.

Constellation.2 hard drives are available as Self-Encrypting Drive models. SED options can improve data-at-rest security and reduce drive retirement costs.

Meets regulatory data security compliance requirements and is FIPS 140-2 Validated™ to protect Sensitive but Unclassified and Protected class data.

Compatibility:

This drive is compatible with any of our SATA drive trays and any of our SATA controllers.

Specifications
Interface Speed	SATA 6Gb/s
Capacity	250GB
Standard Model Number	ST9250610NS
Features
Low Halogen	Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)	1.4 million
Reliability Rating @ Full 24x7 Operation (AFR)	0.62%
Nonrecoverable Read Errors per Bits Read	1 sector per 10E15
Power-On Hours per Year	8760
Bytes per Sector	512
Limited Warranty (years) 4	5
Performance
Spindle Speed (RPM)	7200
Cache, Multisegmented (MB)	64
Interface Access Speed (Gb/s)	6.0, 3.0, 1.5
Max. Sustained Transfer Rate (MB/s)	115
Seek Time, Average Read/Write (ms)	8.5/9.5
Average Latency (ms)	4.16
Interface Ports	Single
RV Tolerance (rad/s2 to 1800Hz)	16
Power Management
Idle Power (W)	2.52
Typical Operating, Random Read (W)	4.35
Power Supply Requirements	+12V and +5V
PowerChoice™ Technology (W)5	As low as 1.19
Environmental
Temperature, Operating (°C)	5 to 60
Vibration, Operating, <400Hz (Gs)	0.5
Vibration, Nonoperating, <500Hz (Gs)	3.0
Shock, Operating, 2ms (Gs)	70
Shock, Nonoperating, 1ms and 2ms (Gs)	400
Acoustics, Typical Idle (bels)	2.2
Acoustics, Typical Seek (bels)	2.8
Physical
Height (in/mm)6	0.591/15.00
Width (in/mm)6	2.760/70.10
Depth (in/mm)6	3.955/100.45
Weight (lb/kg)	0.395/0.179
Carton Unit Quantity	30
Cartons per Pallet	50
